CY8CPROTO-063-BLE

Overview

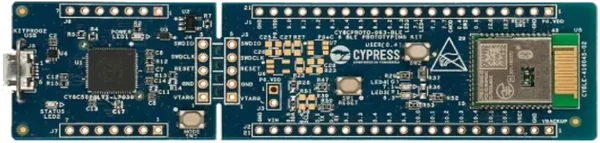

The CY8CPROTO-063-BLE is a PSOC™ 6 BLE Prototyping Kit featuring the CYBLE-416045-02 EZ-BLE module with a PSOC™ 63 dual-core microcontroller (Arm® Cortex®-M4 + Cortex®-M0+) and integrated BLE 5.0 with an on-module trace antenna. It is designed for low-power Bluetooth applications.

Key highlights include up to 36 GPIOs, CAPSENSE™ touch-sensing, PDM-PCM digital microphone interface, Quad-SPI, ADC, and comparators.

The kit features a snap-away form-factor allowing the user to separate components for independent use.

The board includes an onboard KitProg3 programmer/debugger with USB Micro-B connectivity.

Hardware

SoC: PSOC™ 63 with BLE (CYBLE-416045-02 EZ-BLE module)
CPU: Dual — Arm® Cortex®-M4 + Cortex®-M0+
Wireless: BLE 5.0 (on-module trace antenna)
GPIOs: Up to 36
Touch: CAPSENSE™
Peripherals: PDM-PCM, Quad-SPI, ADC, comparators
Debug: Onboard KitProg3 (SWD + UART bridge)
Power: USB powered (3.3 V operating)
Connector: USB Micro-B for programming and power
Form factor: Snap-away

For more information about the PSOC™ 63 and CY8CPROTO-063-BLE:

CY8CPROTO-063-BLE Board Website

Kit Contents

PSOC™ 6 BLE Prototyping Kit board
USB Type-A to Micro-B cable
Quick start guide

Supported Features

The cy8cproto_063_ble board supports the hardware features listed below.

on-chip / on-board: Feature integrated in the SoC / present on the board.
2 / 2: Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo: Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

`cy8cproto_063_ble/cyble_416045_02` target

On-target memory for this board target: 288 KiB of RAM, 1 MiB of Flash.

Type	Location	Description	Compatible
CPU	on-chip	ARM Cortex-M0+ CPU1	`arm,cortex-m0+`
CPU	on-chip	ARM Cortex-M4F CPU1	`arm,cortex-m4f`
ADC	on-chip	Infineon Cat1 ADC Each ADC group Cat1 is assigned to a Zephyr device1	`infineon,adc`
ARM architecture	on-chip	Infineon Serial Communication Blocks (SCB) node8	`infineon,scb`
Bluetooth	on-chip	Bluetooth module that uses Infineon’s Host Controller Interface1	`infineon,bless-hci`
Clock control	on-chip	Generic fixed-rate clock provider2 1	`fixed-clock`
Clock control	on-chip	Generic fixed factor clock provider6 7	`fixed-factor-clock`
Counter	on-chip	Infineon counters32	`infineon,counter`
DMA	on-chip	Infineon CAT1 DMA1	`infineon,dma`
Flash controller	on-chip	Infineon CAT1 flash controller1	`infineon,flash-controller`
GPIO & Headers	on-chip	Infineon GPIO Port7	`infineon,gpio`
Input	on-board	Group of GPIO-bound input keys1	`gpio-keys`
Interrupt controller	on-chip	ARMv7-M NVIC (Nested Vectored Interrupt Controller)1	`arm,v7m-nvic`
LED	on-board	Group of GPIO-controlled LEDs1	`gpio-leds`
MTD	on-chip	Flash node2	`soc-nv-flash`
Pin control	on-chip	Infineon CAT1 Pinctrl Container1	`infineon,pinctrl`
SDHC	on-chip	Infineon CAT1 SDHC/SDIO controller1	`infineon,sdhc-sdio`
Serial controller	on-chip	Infineon CAT1 UART1	`infineon,uart`
SRAM	on-chip	Generic on-chip SRAM1	`mmio-sram`
Timer	on-chip	ARMv7-M System Tick1	`arm,armv7m-systick`
Watchdog	on-chip	Infineon CAT1 Watchdog1	`infineon,watchdog`

Connections and IOs

LEDs

Name	GPIO Pin
LED0	P6.3 (active low)

Push Buttons

Name	GPIO Pin
SW0	P0.4 (active low)

Default Zephyr Peripheral Mapping

Pin	Function	Usage
P5.1	SCB5 UART TX	Console TX
P5.0	SCB5 UART RX	Console RX
P6.3	GPIO	LED0
P0.4	GPIO	Button SW0

System Clock

The PSOC™ 63 uses the Internal Main Oscillator (IMO) as the default system clock source. The clock path is:

IMO (Internal Main Oscillator): 8 MHz
FLL: IMO → 100 MHz
PLL: IMO → 48 MHz
CLK_HF0: 100 MHz (system clock)

Serial Port

The PSOC™ 63 has multiple SCB (Serial Communication Block) interfaces that can be configured as UART, SPI, or I2C. The Zephyr console output is assigned to SCB5 (uart5), which is routed through the KitProg3 USB-UART bridge.

Default communication settings are 115200 8N1.

Prerequisites

Fetch Binary Blobs

The cy8cproto_063_ble board requires binary blobs (Bluetooth controller firmware, CM0+ prebuilt images). Run the following command to fetch them:

west blobs fetch hal_infineon

Building

Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b cy8cproto_063_ble samples/hello_world

Programming and Debugging

The cy8cproto_063_ble board supports the runners and associated west commands listed below.

	flash	debug	rtt	debugserver	attach
openocd	✅ (default)	✅ (default)	✅	✅	✅
pyocd	✅	✅	✅	✅	✅

The CY8CPROTO-063-BLE includes an onboard programmer/debugger (KitProg3) which can be used to program and debug the PSOC™ 63 Cortex-M4 core.

Infineon OpenOCD Installation

The ModusToolbox™ Programming Tools package includes Infineon OpenOCD. Alternatively, a standalone installation can be done by downloading the Infineon OpenOCD release for your system and extracting the files to a location of your choice.

Note

Linux requires device access rights to be set up for KitProg3. This is handled automatically by the ModusToolbox™ Programming Tools installation. When doing a standalone OpenOCD installation, this can be done manually by executing the script openocd/udev_rules/install_rules.sh.

Configuring a Console

Connect a USB cable from your PC to the KitProg3 USB Micro-B connector (J8) on the CY8CPROTO-063-BLE.Use the serial terminal of your choice (minicom, PuTTY, etc.) with the following settings:

Speed: 115200
Data: 8 bits
Parity: None
Stop bits: 1

Flashing

One time, set the Infineon OpenOCD path:

west config build.cmake-args -- "-DOPENOCD=path/to/infineon/openocd/bin/openocd.exe"

Build and flash the application:

west build -b cy8cproto_063_ble -p always samples/hello_world
west flash
