Genio 510 EVK
Overview
The MediaTek Genio 510 EVK is an evaluation board for the Genio 510 (MT8370) application processor, aimed at edge AI and IoT applications.
MT8370 is the SoC powering Genio 510 platform. The SoC IPs are based on MT8188 drivers and device trees, MT8370 appears only in the board name.
The MT8370 combines two Cortex-A78 cores at 2.0 GHz with four Cortex-A55 cores at 2.0 GHz, an Arm Mali-G57 MC2 GPU, a 3.2 TOPS NPU and a Tensilica HiFi 5 audio DSP. MediaTek describes it as pin-to-pin and software compatible with the higher-performance Genio 700, which is why both boards share this port’s SoC, drivers and devicetree.
Zephyr runs on one Cortex-A55 core of this board, as a Jailhouse inmate alongside Linux. See Programming and Debugging.
Hardware

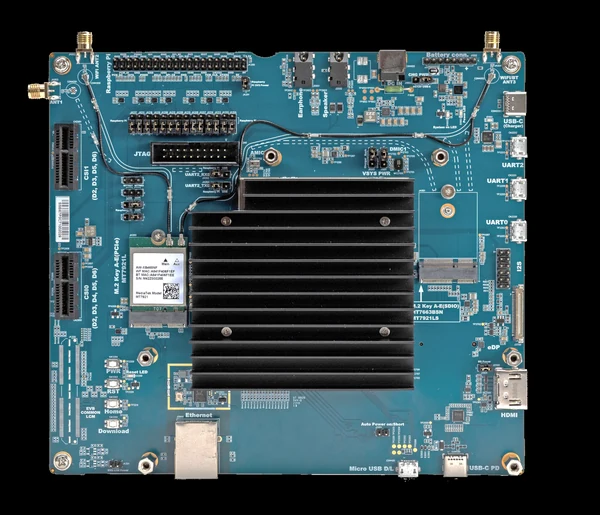

MediaTek Genio 510 EVK
4 GB LPDDR4X DRAM
64 GB eMMC 5.1 and a microSD card slot
AzureWave AW-XB468NF Wi-Fi module (MT7921)
10/100/1000M Ethernet
One USB Type-C host port and one micro USB device port
Two M.2 slots (PCIe/USB and SDIO)
40-pin 2.54 mm expansion header with a Raspberry Pi compatible pinout
Three micro USB connectors carrying UART trace logs through USB-to-UART bridges
Power, reset and system LEDs; power, reset, download and home buttons
12 V DC input on a 2.0 mm jack
Supported Features
The mt8370_genio_510_evk board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
mt8370_genio_510_evk/mt8188/a55 target
On-target memory for this board target: 8 MiB of RAM, N/A of Flash.
Type |
Location |
Description |
Compatible |
|---|---|---|---|
CPU |
on-chip |
||
Clock control |
on-chip |
MediaTek MT8188 infra always-on clock controller1 |
|
Interrupt controller |
on-chip |
ARM Generic Interrupt Controller v31 |
|
Pin control |
on-chip |
MediaTek MT8188 pin controller1 |
|
Serial controller |
on-chip |
||
Timer |
on-chip |
per-core ARM architected timer1 |
Zephyr supports the peripherals that are handed to the inmate cell. Everything else on the board stays with the Linux root cell and is left disabled in the board devicetree.
Connections and IOs
Serial Port
The Zephyr console is on UART1 at 115200 8N1, muxed onto pins 33 (UTXD1) and 34 (URXD1).
The board brings out three UARTs, each through a USB-to-UART bridge on its own micro USB connector:
UART |
Connector |
|---|---|
UART0 |
CN3200 |
UART1 |
CN3201 |
UART2 |
CN3202 |
UART0 is the Linux console and stays with the root cell, so Zephyr uses UART1 on CN3201.
Programming and Debugging
Zephyr runs on this board using the Jailhouse hypervisor, where this hypervisor takes away one Cortex-A55 core from Linux and hands it to Zephyr.
Three Jailhouse concepts matter here:
A cell is a set of hardware resources assigned to one operating system.
The root cell is the cell Linux runs in. It holds every resource Linux uses, and resources are assigned to inmates out of it.
An inmate is any other operating system running alongside Linux. Zephyr is an inmate here.
Neither Linux nor Zephyr is aware of the other. Each sees only the cores and memory its cell describes, and the hypervisor enforces that with second-stage translation. A resource absent from the inmate’s cell configuration faults if the inmate touches it.
Zephyr is given one Cortex-A55 core and an 8 MB window of DRAM, which the cell
places at 0x8000 in the inmate’s own address space. The other cores and all
remaining peripherals stay with Linux.
Prerequisites
An IoT Yocto image on the target. Jailhouse, its kernel module and the cell configurations for this board are all part of that image, so no separate build is needed.
The instructions below were verified against IoT Yocto 26.0-release, running
Jailhouse 0.12 on a 6.6 kernel.
Building
# From the root of the zephyr repository
west build -b mt8370_genio_510_evk/mt8188/a55 samples/hello_world
The artefact to load is the raw binary build/zephyr/zephyr.bin, not the ELF.
Copy it to the target, for example with scp.
Loading
On the target, with the Zephyr binary in the current directory:
modprobe jailhouse
jailhouse enable /usr/share/jailhouse/cells/genio-510-evk.cell
jailhouse cell create /usr/share/jailhouse/cells/genio-510-evk-zephyr.cell
jailhouse cell load zephyr zephyr.bin -a 0x8000
jailhouse cell start zephyr
The image does not start the hypervisor by itself, so jailhouse enable is
needed once after each boot of the target before any inmate can be created.
Subsequent runs need only the last three commands.
Important
The load address passed to jailhouse cell load must be 0x8000. It has
to match both the inmate base address the hypervisor was configured with and
the memory@8000 node in the board devicetree. A mismatch places the image
somewhere Zephyr is not linked to run, and nothing in the build catches it.
Output appears on the console described in Connections and IOs:
*** Booting Zephyr OS build v4.4.0 ***
Hello World! mt8370_genio_510_evk/mt8188/a55
To stop and unload the inmate:
jailhouse cell shutdown zephyr
jailhouse cell destroy zephyr
Debugging
No Zephyr flash or debug runner is provided: the image is loaded by the
hypervisor from Linux rather than by a host-side tool, so west flash and
west debug do not apply to this board.
