T3 Gemstone O1

Overview

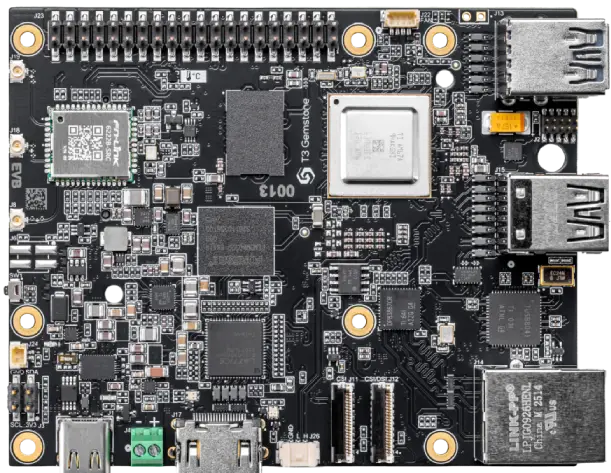

The T3 Gemstone O1 is a single-board computer powered by the TI AM67A (J722S) SoC. T3 Gemstone O1 development board are built from open-source hardware and software components, and they pair AI-accelerated hardware with a Debian-based GNU/Linux operating system optimized for real-time applications, making them suitable for manned and unmanned systems, IoT, robotics, and many other fields.

Hardware

T3 Gemstone O1 is powered by the TI AM67A (J722S) SoC, which has two domains (Main, MCU). This document gives an overview of Zephyr running on both Cortex R5F cores.

The board also features integrated sensors, including the ICM-20948 9-axis motion sensor, LPS22DF barometric pressure sensor, and HDC2010 temperature and humidity sensor. Connectivity includes an onboard CAN FD transceiver, two 4-lane MIPI CSI camera interfaces, and a 4-lane MIPI DSI display interface — one CSI port is multiplexed with DSI, so either dual CSI or one CSI plus one DSI can be used. An I2C real-time clock with a battery input preserves system time across power cycles, while 32 GB of onboard eMMC storage allows the board to run without a microSD card. Programmable red and green user LEDs are also available.

L1 Memory System

T3 Gemstone O1 defaults to single-core mode for the R5 subsystem. Changes in that will impact the L1 memory system configuration.

  • 32KB instruction cache

  • 32KB data cache

  • 64KB tightly-coupled memory (TCM) * 32KB TCMA * 32KB TCMB

Region Address Translation

The RAT module performs a region based address translation. It translates a 32-bit input address into a 36-bit output address. Any input transaction that starts inside of a programmed region will have its address translated, if the region is enabled.

VIM Interrupt Controller

The VIM aggregates device interrupts and sends them to the R5F CPU(s). The VIM module supports 512 interrupt inputs per R5F core. Each interrupt can be either a level or a pulse (both active-high). The VIM has two interrupt outputs per core IRQ and FIQ.

Supported Features

The board configuration supports a console UART via the 40-pin GPIO header. Future versions will also support a console over RPmsg.

The t3_gem_o1 board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

t3_gem_o1/j722s/main_r5f0_0 target

On-target memory for this board target: 14 MiB of RAM, N/A of Flash.

Type

Location

Description

Compatible

CPU

on-chip

ARM Cortex-R5F CPU1

arm,cortex-r5f

GPIO & Headers

on-chip

GPIO Controller for Davinci and Keystone devices6

ti,davinci-gpio

Interrupt controller

on-chip

TI Vectored Interrupt Manager is a external interrupt controller (TI specific IP) which is compatible with R5F VIC port1

ti,vim

Mailbox

on-chip

TI OMAP MAILBOX1

ti,omap-mailbox

Pin control

on-chip

TI K3 Pin Controller1

ti,k3-pinctrl

Serial controller

on-chip

ns16550 UART17

ns16550

SRAM

on-board

Generic on-chip SRAM1

mmio-sram

Timer

on-chip

TI Dual-Mode Timer1

ti,am654-timer

Watchdog

on-chip

K3 Watchdog timer (RTI module) available in the K3 generation of processors1

ti,j7-rti-wdt

t3_gem_o1/j722s/mcu_r5f0_0 target

On-target memory for this board target: 14 MiB of RAM, N/A of Flash.

Type

Location

Description

Compatible

CPU

on-chip

ARM Cortex-R5F CPU1

arm,cortex-r5f

GPIO & Headers

on-chip

GPIO Controller for Davinci and Keystone devices6

ti,davinci-gpio

Interrupt controller

on-chip

TI Vectored Interrupt Manager is a external interrupt controller (TI specific IP) which is compatible with R5F VIC port1

ti,vim

Mailbox

on-chip

TI OMAP MAILBOX1

ti,omap-mailbox

Pin control

on-chip

TI K3 Pin Controller1

ti,k3-pinctrl

Serial controller

on-chip

ns16550 UART17

ns16550

SRAM

on-board

Generic on-chip SRAM1

mmio-sram

Timer

on-chip

TI Dual-Mode Timer1

ti,am654-timer

Watchdog

on-chip

K3 Watchdog timer (RTI module) available in the K3 generation of processors1

ti,j7-rti-wdt

Running Zephyr

The AM67A does not have a separate flash for the R5 core. Because of this an A53 core has to load the program for the R5 core to the right memory address, set the PC and start the processor. This can be done from Linux on the A53 core via remoteproc.

This is the memory mapping from A53 to the memory usable by the R5. Note that the R5 core always sees its local TCMA at address 0x00000000 and its TCMB0 at address 0x41010000.

The A53 Linux configuration allocates a region in DDR that is shared with the R5. The amount of the allocation can be changed in the Linux device tree. Note that T3 Gemstone O1 has 4GB of LPDDR4.

Region

Addr from A53

MAIN R5F

Size

ATCM

0x0078400000

0x0000000000

32KB

BTCM

0x0078500000

0x0041010000

32KB

DDR Shared Region

0x00A2000000

0x00A2000000

16MB

Region

Addr from A53

MCU R5F

Size

ATCM

0x0079000000

0x0000000000

32KB

BTCM

0x0079020000

0x0041010000

32KB

DDR Shared Region

0x00A1000000

0x00A1000000

16MB

Steps to run the image

Here is an example for the Hello World application targeting the MAIN domain Cortex R5F on T3 Gemstone O1:

# From the root of the zephyr repository
west build -b t3_gem_o1/j722s/main_r5f0_0 samples/hello_world

For the MCU domain Cortex R5F on T3 Gemstone O1:

# From the root of the zephyr repository
west build -b t3_gem_o1/j722s/mcu_r5f0_0 samples/hello_world

To load the image:

Copy Zephyr image to the /lib/firmware/ directory.
cp build/zephyr/zephyr.elf /lib/firmware/

Ensure the Core is not running.
echo stop > /dev/remoteproc/am67a-{main,mcu}-r5f0_0/state

Configuring the image name to the remoteproc module.
echo zephyr.elf > /dev/remoteproc/am67a-{main,mcu}-r5f0_0/firmware

Once the image name is configured, send the start command.
echo start > /dev/remoteproc/am67a-{main,mcu}-r5f0_0/state

Console

Zephyr on the T3 Gemstone O1 Cortex-R5F uses UART 1 (40-pin GPIO header pins 8-TX, 10-RX) as console.

Debugging

The board provides an ARM Cortex 10-pin JTAG connector which can be used to debug the Cortex-R5F cores.
