TYZS3

Overview

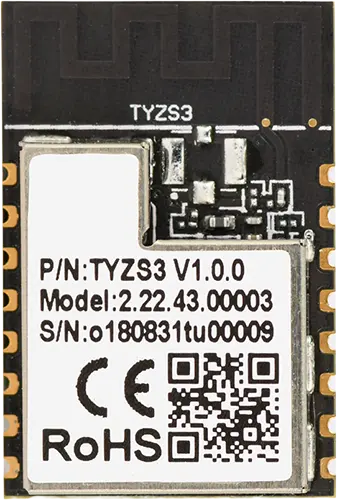

TYZS3 is a low power-consumption embedded Zigbee module developed by Tuya. It consists of a highly integrated wireless RF processor chip (EFR32MG13P732F512GM48) and several peripherals. TYZS3 is embedded with a low power-consumption 32-bit ARM Cortex-M4 core, 512-KB flash memory, 64-KB RAM, and rich peripheral resources.

Hardware

EFR32MG13P732F512GM48 Gecko SoC
CPU core: ARM Cortex®-M4 with FPU
Flash memory: 512 kB
RAM: 64 kB
Transmit power: up to +19 dBm
Operation frequency: 2.4 GHz
Crystal for HFXO (38.4 MHz).

For more information about the EFR32MG13 SoC and TYZS3 module:

Supported Features

The tyzs3 board supports the hardware features listed below.

on-chip / on-board: Feature integrated in the SoC / present on the board.
2 / 2: Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo: Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

`tyzs3/efr32mg13p732f512gm48` target

On-target memory for this board target: 64 KiB of RAM, 512 KiB of Flash.

Type	Location	Description	Compatible
CPU	on-chip	ARM Cortex-M4F CPU1	`arm,cortex-m4f`
Bluetooth	on-chip	Silicon Labs Series 2 Bluetooth HCI1	`silabs,bt-hci-efr32`
Flash controller	on-chip	Silicon Labs Gecko flash controller1	`silabs,gecko-flash-controller`
GPIO & Headers	on-chip	Silicon Labs Series 0-2 GPIO Peripheral1	`silabs,gecko-gpio`
GPIO & Headers	on-chip	Silicon Labs Series 0-2 GPIO Port4 1	`silabs,gecko-gpio-port`
I2C	on-chip	Silicon Labs Series 0-2 I2C2	`silabs,gecko-i2c`
Interrupt controller	on-chip	ARMv7-M NVIC (Nested Vectored Interrupt Controller)1	`arm,v7m-nvic`
MTD	on-chip	Flash node1	`soc-nv-flash`
Pin control	on-chip	Silabs Gecko Pin Controller1	`silabs,gecko-pinctrl`
RTC	on-chip	Silabs Gecko RTCC (Real-Time Counter)1	`silabs,gecko-rtcc`
Serial controller	on-chip	Gecko USART1 2	`silabs,gecko-usart`
Serial controller	on-chip	Gecko LEUART1	`silabs,gecko-leuart`
SRAM	on-chip	Generic on-chip SRAM1	`mmio-sram`
Timer	on-chip	ARMv7-M System Tick1	`arm,armv7m-systick`
Watchdog	on-chip	Silicon Labs Series 0-2 WDOG2	`silabs,gecko-wdog`

System Clock

The EFR32MG13P SoC is configured to use the 38.4 MHz external oscillator on the board.

Serial Port

The EFR32MG13P SoC has three USARTs and one Low Energy UARTs (LEUART with 9600 maximum baudrate). USART0 is used for the console.

Programming and Debugging

The tyzs3 board supports the runners and associated west commands listed below.

	flash	debug	rtt	attach	debugserver	reset
jlink	✅ (default)	✅ (default)	✅	✅	✅	✅
openocd	✅	✅	✅	✅	✅
pyocd	✅	✅	✅	✅	✅

Flashing

This board supports jlink, openocd and pyocd. For pyocd, you have to install the pack first:

pyocd pack install efr32mg13p732f512gm48

Solder wires to the pins SWDIO, SWDCLK, nRST, GND and VCC (3.3V). Then connect them to a power source and a debug adapter of your choice.

Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b tyzs3 samples/hello_world
west flash

Open a serial terminal (minicom, putty, etc.) with the following settings:

Speed: 9600
Data: 8 bits
Parity: None
Stop bits: 1

Reset the board and you should see the following message in the terminal:

Hello World! tyzs3/efr32mg13p732f512gm48
