SAMA7D65 Curiosity Kit
Overview

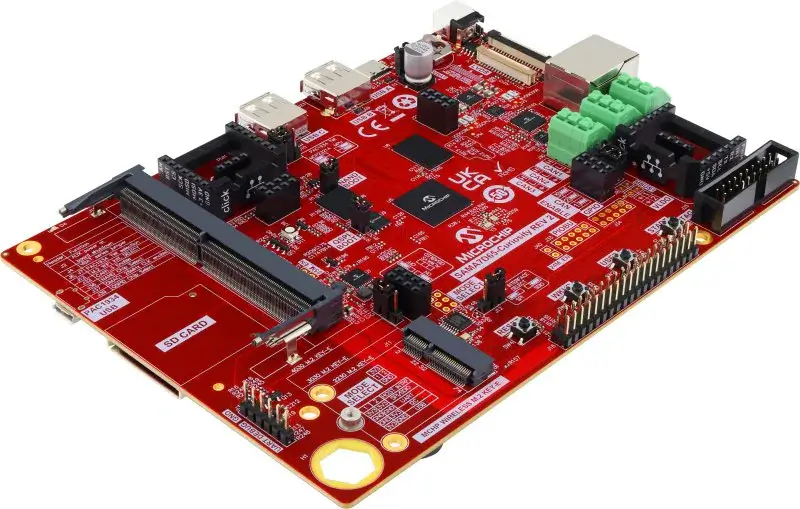

The EV63J76A (SAMA7D65 Curiosity Kit) is a development kit for evaluating and prototyping with Microchip SAMA7D65 microprocessor (MPU). The SAMA7D65 MPU is a high-performance ARM Cortex-A7 CPU-based embedded MPU running up to 1GHz.
The board allows evaluation of powerful peripherals for connectivity, audio and user interface applications, including MIPI-DSI and LVDS w/ 2D graphics, dual Gigabit Ethernet w/ TSN and CAN-FD. The MPUs offer advanced security functions, like tamper detection, secure boot, secure key stoarge, TRNG, PUF as well as higher-performance crypto accelerators for AES and SHA.
The SAMA7D65 series is supported by Microchip MPLAB-X development tools, Harmony V3, Linux distributions and Microchip Graphic Suite (MGS) for Linux. The SAMA7D65 is well-suited for industrial and automotive applications with graphical displays support up to WXGA/720p.
Hardware
EV63J76A provides the following hardware components:
Processor
Microchip SAMA7D65-V/4HB (SoC 343-ball TFBGA, 14x14 mm, 0.65 mm pitch)
Memory
8 Gb DDR3L (AS4C512M16D3LA-10BIN)
64 Mb QSPI NOR Flash with EUI-48 (Microchip SST26VF064BEUI-104I/MF)
4Gbit SLC NAND Flash (MX30LF4G28AD-XKI)
2Kb EEPROM with EUI-48 (Microchip 24AA025E48)
SD/MMC
One SD card socket, 4 bit
One M.2 Radio Module interface, SDIO I/F
USB
One device USB Type-C connector
Two host USB Type-A connectors (Microchip MIC2026-1YM)
Ethernet
One 10/100/1000 RGMII on board
One 10/100/1000 RGMII SODIMM add-on slot (Microchip LAN8840-V/PSA)
Display
One MIPI-DSI 34-pin FPC connector
One LVDS 30-pin FPC connector
Debug port
One UART Debug connector
One JTAG interface
User interaction
One RGB (Red, Green, Blue) LED
Four push button switches
CAN-FD
Three onboard CAN-FD transceivers
Two interfaces available on mikroBUS slots
Expansion
Raspberry Pi 40-pin GPIO connector
Two mikroBUS™ connectors
Two PIOBU/System headers
Power management
Power Supply Unit (Microchip MCP16502TAB-E/S8B)
Power Monitoring (Microchip PAC1934)
Daughter cards power supply (Microchip MIC23450-AAAYML-TR)
Backup power supply (CR1220 battery holder)
Board supply
System 5 VDC from USB Type-C
System 5 VDC from DC Jack
Supported Features
The sama7d65_curiosity board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
sama7d65_curiosity/sama7d65 target
Type |
Location |
Description |
Compatible |
|---|---|---|---|
CPU |
on-chip |
ARM Cortex-A7 CPU1 |
|
Clock control |
on-chip |
Microchip Power Management Controller (PMC)1 |
|
on-chip |
Microchip SAM Slow Clock Controller (SCKC)1 |
||
on-chip |
Generic fixed-rate clock provider2 |
||
Cryptographic accelerator |
on-chip |
Microchip G1 SHA Controller Driver1 |
|
I2C |
on-chip |
||
Interrupt controller |
on-chip |
ARM Generic Interrupt Controller v21 |
|
Multi-Function Device |
on-chip |
||
MTD |
on-board |
I2C EEPROMs compatible with Atmel’s AT24 family1 |
|
Pin control |
on-chip |
Microchip SAMA7G5 Pinctrl container node1 |
|
RTC |
on-chip |
Microchip RTC G2 Controller1 |
|
Serial controller |
on-chip |
||
SRAM |
on-chip |
Generic on-chip SRAM1 |
|
System controller |
on-chip |
System Controller Registers R/W1 |
|
Timer |
on-chip |
Microchip SAM 64-bit Periodic Interval Timer (PIT64B)1 |
Connections and IOs
The SAMA7D65-Curiosity Kit User Guide has detailed information about board connections.
Programming
Prerequisite
Before Zephyr runs on SAMA7D65-Curiosity, at91bootstrap (the second stage bootloader for Microchip MPU) needs to run first. It will initialize the peripherals and memory controllers, download and jump to Zephyr entry point.
Loading the firmware
Using a bootloader compiled with sama7d65_curiositysd1_zephyr_defconfig configuration, the binary for Zephyr (zephyr.bin) copied to a SD card can be loaded and run on the SAMA7D65-Curiosity board.
References
- SAMA7D65 Product Page:
- SAMA7D65 Curiosity Kit Page:
