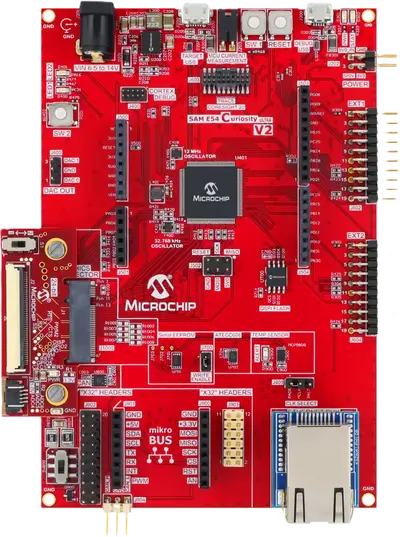

SAM E54 Curiosity Ultra
Overview
The SAM E54 Curiosity Ultra evaluation kit is ideal for evaluation and prototyping with the SAM E54 Cortex®-M4F processor-based microcontrollers. The kit includes Microchip’s Embedded Debugger (EDBG), which provides a full debug interface without the need for additional hardware.
Hardware
ATSAME54P20A, 120 MHz, 1MB Flash, 256 KB RAM
On-Board Debugger (EDBG)
Virtual COM port (VCOM)
Data Gateway Interface (DGI)
One mikroBUS interfaces
One X32 audio interfaces supporting Bluetooth and audio
Ethernet interface
Graphics interface
Xplained Pro extension compatible interface
CAN interface
User buttons
User LEDs
8-MB QSPI memory
Arduino Uno R3 compatible interface
Supported Features
The sam_e54_cult board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
sam_e54_cult/atsame54p20a target
Type |
Location |
Description |
Compatible |
|---|---|---|---|
CPU |
on-chip |
ARM Cortex-M4F CPU1 |
|
ARM architecture |
on-chip |
Microchip SERCOM module7 |
|
Clock control |
on-chip |
Microchip SAM_D5x_E5x SOC family clock1 |
|
on-chip |
SAM_D5x_E5x Crystal Oscillator (XOSC)1 |
||
on-chip |
SAM_D5x_E5x Internal Oscillator (OSC48M)1 |
||
on-chip |
SAM_D5x_E5x FDPLL clock1 |
||
on-chip |
SAM_D5x_E5x RTC clock1 |
||
on-chip |
SAM_D5x_E5x External Crystal Oscillator (XOSC32K)1 |
||
on-chip |
SAM_D5x_E5x Generic clock generator1 |
||
on-chip |
SAM_D5x_E5x Generic clock peripheral1 |
||
on-chip |
SAM_D5x_E5x Main clock for CPU1 |
||
on-chip |
SAM_D5x_E5x MCLK peripheral1 |
||
Comparator |
on-chip |
Microchip G1 Analog Comparator1 |
|
Counter |
on-chip |
Microchip TCC G1 timer counter peripheral.5 |
|
DMA |
on-chip |
Microchip G1 DMA Controller1 |
|
Flash controller |
on-chip |
Microchip NVMCTRL1 |
|
GPIO & Headers |
on-chip |
||
Input |
on-board |
Group of GPIO-bound input keys1 |
|
Interrupt controller |
on-chip |
ARMv7-M NVIC (Nested Vectored Interrupt Controller)1 |
|
LED |
on-board |
Group of GPIO-controlled LEDs1 |
|
MMU / MPU |
on-chip |
ARMv7-M Memory Protection Unit (MPU)1 |
|
MTD |
on-chip |
Flash node2 |
|
on-board |
Fixed partitions of a flash (or other non-volatile storage) memory1 |
||
Pin control |
on-chip |
Microchip PORT Pinctrl container node1 |
|
Reset controller |
on-chip |
Microchip RSTC Reset driver1 |
|
RNG |
on-chip |
Microchip TRNG G1 entropy driver1 |
|
RTC |
on-chip |
Microchip G1 RTC driver1 |
|
Serial controller |
on-chip |
Microchip SERCOM UART controller1 |
|
SRAM |
on-chip |
Generic on-chip SRAM1 |
|
Timer |
on-chip |
ARMv7-M System Tick1 |
Connections and IOs
The SAM E54 Curiosity Ultra User Guide has detailed information about board connections.
Programming and Debugging
The SAM E54 Curiosity Ultra features an on-board Microchip Embedded Debugger (EDBG), which provides both a standard debug interface and a virtual serial port used as the Zephyr console. SERCOM1 of the ATSAME54P20A MCU is configured as a USART for console output.
Connect the board to your host machine using the debug USB port.
Open a terminal and start a serial console on the corresponding port. On Linux, this is typically
/dev/ttyACM0. For example:$ minicom -D /dev/ttyACM0 -o
The -o option tells minicom not to send the modem initialization string. Connection should be configured as follows:
Speed: 115200
Data: 8 bits
Parity: None
Stop bits: 1
Build and flash the Zephyr
hello_worldsample application:west build -b sam_e54_cult samples/hello_world west flash
Observe output on the terminal. If everything is set up correctly, you should see:
Hello World! sam_e54_cult
References
- SAM E54 Product Page:
- SAM E54 Curiosity Ultra evaluation kit Page:
