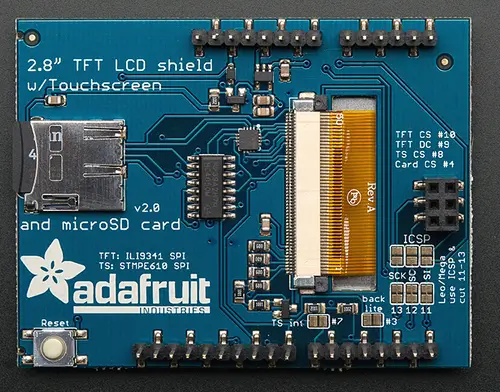

Adafruit 2.8” TFT Touch Shield v2

Overview

The Adafruit 2.8” TFT Touch Shield v2 with a resolution of 320x240 pixels, is based on the ILI9341 controller. This shield comes with a resistive (STMPE610 controller) or capacitive (FT6206 controller) touchscreen. While the Zephyr RTOS supports display output to these screens, it currently does not support touchscreen input. More information about the shield can be found at the Adafruit 2.8” TFT Touch Shield v2 website [1].

Pins Assignment of the Adafruit 2.8” TFT Touch Shield v2

Shield Connector Pin Function
D4 MicroSD SPI CSn
D8 STMPE610 SPI CSn (Resistive Touch Version)
D9 ILI9341 DC (Data/Command)
D10 ILI9341 SPI CSn
D11 SPI MOSI (Serial Data Input)
D12 SPI MISO (Serial Data Out)
D13 SPI SCK (Serial Clock Input)
SDA FT6206 SDA (Capacitive Touch Version)
SCL FT6206 SCL (Capacitive Touch Version)

Requirements

This shield can only be used with a board which provides a configuration for Arduino connectors and defines node aliases for SPI and GPIO interfaces (see Shields for more details).

Programming

Set -DSHIELD=adafruit_2_8_tft_touch_v2 when you invoke west build. For example:

# From the root of the zephyr repository
west build -b nrf52840_pca10056 samples/gui/lvgl -- -DSHIELD=adafruit_2_8_tft_touch_v2
