WCH CH32H417EVT
Overview

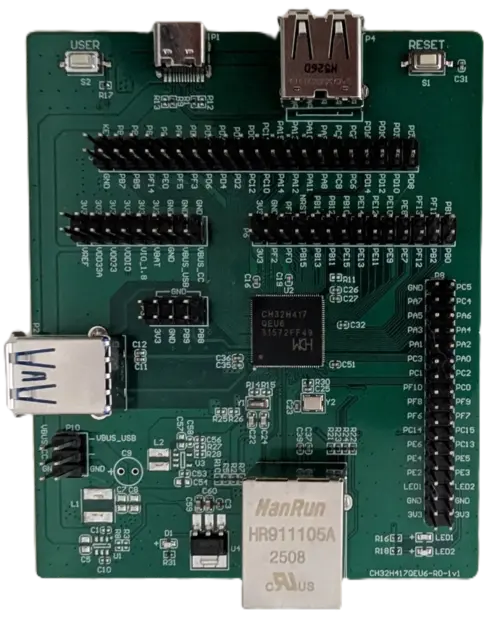

The WCH [1] CH32H417EVT is an evaluation board for the CH32H417 SoC. The SoC contains two asymmetric RISC-V cores:
QingKe V3F boot core, hart 0
QingKe V5F application core, hart 1
The CH32H417 is supported as an AMP system using Zephyr hardware model v2 CPU cluster targets. It is not an SMP system, and CONFIG_SMP must not be enabled. Zephyr images for the V3F and V5F cores are built separately.
On cold reset, only the V3F core starts executing. The V5F core does not start by itself; it must be woken by V3F firmware using the CH32H417 PFIC wakeup mechanism. The recommended Zephyr application target is the V5F target: ch32h417evt/ch32h417/v5f.
Hardware
The current board support configures the V5F core to run at 480 MHz. The HCLK and USART clock domain are configured at 120 MHz. The validated console is USART8 TX on PB4, alternate function 11, at 115200 baud.
The V5F Zephyr image is linked at flash address 0x08010000 and uses the V5F DTCM RAM region at 0x200c0400. The V3F waker image is linked at flash address 0x00000000. The CH32H417 aliases the main flash bank into the low 0x00000000 window, so the V5F image at 0x08010000 is the same physical flash as offset 0x10000 used by the OpenOCD programming commands below.
Supported Features
The ch32h417evt board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
ch32h417evt/ch32h417/v3f target
On-target memory for this board target: 458496 B of RAM, 64 KiB of Flash.
Type |
Location |
Description |
Compatible |
|---|---|---|---|
CPU |
on-chip |
WCH QingKe V3F RISC-V MCU1 |
|
Clock control |
on-chip |
WCH CH32V00x Reset and Clock Control (RCC)1 |
|
on-chip |
WCH CH32V00x HSE Clock1 |
||
on-chip |
WCH CH32V00x HSI Clock1 |
||
on-chip |
WCH CH32H41X PLL1 |
||
GPIO & Headers |
on-chip |
WCH CH32V00x General-Purpose Input/Output (GPIO)2 |
|
Interrupt controller |
on-chip |
WCH CH32V00x Programmable Fast Interrupt Controller (PFIC)1 |
|
MTD |
on-chip |
Flash node1 |
|
Pin control |
on-chip |
WCH CH32H41x AFIO1 |
|
Serial controller |
on-chip |
WCH CH32V00x UART2 |
|
SRAM |
on-chip |
Generic on-chip SRAM1 |
|
Timer |
on-chip |
WCH CH32V00x Systick1 |
ch32h417evt/ch32h417/v5f target
On-target memory for this board target: 255 KiB of RAM, 480 KiB of Flash.
Type |
Location |
Description |
Compatible |
|---|---|---|---|
CPU |
on-chip |
WCH QingKe V5F RISC-V MCU1 |
|
Clock control |
on-chip |
WCH CH32V00x Reset and Clock Control (RCC)1 |
|
on-chip |
WCH CH32V00x HSE Clock1 |
||
on-chip |
WCH CH32V00x HSI Clock1 |
||
on-chip |
WCH CH32H41X PLL1 |
||
GPIO & Headers |
on-chip |
WCH CH32V00x General-Purpose Input/Output (GPIO)2 |
|
Interrupt controller |
on-chip |
WCH CH32V00x Programmable Fast Interrupt Controller (PFIC)1 |
|
LED |
on-board |
Group of GPIO-controlled LEDs1 |
|
MTD |
on-chip |
Flash node1 |
|
Pin control |
on-chip |
WCH CH32H41x AFIO1 |
|
Serial controller |
on-chip |
||
SRAM |
on-chip |
Generic on-chip SRAM1 |
|
Timer |
on-chip |
WCH CH32V00x Systick1 |
Connections and IOs
Console
The V5F console uses USART8:
Signal |
Pin |
Alternate function |
Settings |
|---|---|---|---|
USART8 TX |
PB4 |
AF11 |
115200 8N1 |
The V3F waker target does not configure a console and should not print anything. This avoids contention with the V5F console.
LED
The board DTS provides led0 on PB1 for samples such as blinky.
LED alias |
Pin |
Polarity |
|---|---|---|
led0 |
PB1 |
Active high |
CPU Cluster Targets
Applications must be built for one of the CH32H417 CPU cluster targets:
Target |
Purpose |
Boot hart |
Image address |
|---|---|---|---|
ch32h417evt/ch32h417/v3f |
Minimal V3F Zephyr waker image |
0 |
0x00000000 |
ch32h417evt/ch32h417/v5f |
Main Zephyr application image |
1 |
0x08010000 |
The V3F image wakes the V5F image from soc_early_init_hook() and then idles. The V3F target is not intended to own application peripherals in this initial board support.
Programming and Debugging
A one-step west flash runner is not provided for this board yet. A
bootable setup requires a merged V3F and V5F image, programmed in a single
OpenOCD operation.
Building
Build a V5F hello_world application:
$ west build -p always -b ch32h417evt/ch32h417/v5f samples/hello_world
Build a V5F blinky application:
$ west build -p always -b ch32h417evt/ch32h417/v5f samples/basic/blinky
Build the V3F waker image. The V3F target wakes the V5F core from
soc_early_init_hook() (gated by CONFIG_SOC_CH32H417_BOOT_V5F,
enabled by default), so the standard minimal sample is sufficient:
$ west build -p always -b ch32h417evt/ch32h417/v3f samples/basic/minimal
Flashing
A complete bootable setup requires both images in flash, addressed through the low aliased flash window that the OpenOCD flow programs:
V3F waker image at flash offset 0x00000000
V5F application image at flash offset 0x00010000 (the V5F image is linked at the aliased address 0x08010000, which is the same physical flash)
Do not assume that two independent OpenOCD program operations will leave both images valid. On the currently tested WCH OpenOCD flow, programming one image can erase the other image. A reliable method is to pad the generated V3F binary up to 0x10000, append the generated V5F binary, and program the merged binary once.
For example, after building the V3F waker in build-v3f and the V5F application in build-v5f:
$ python3 - <<'PY'
from pathlib import Path
waker = Path('build-v3f/zephyr/zephyr.bin').read_bytes()
app = Path('build-v5f/zephyr/zephyr.bin').read_bytes()
merged = bytearray([0xff]) * 0x10000
merged[:len(waker)] = waker
Path('ch32h417_dual.bin').write_bytes(merged + app)
PY
$ openocd -f boards/wch/ch32h417evt/support/openocd.cfg -c init -c halt -c "program ch32h417_dual.bin 0x00000000 verify" -c reset -c shutdown
Use verify when programming. Some WCH OpenOCD versions can terminate after a successful verify while restoring the flash algorithm work area; if the log shows that verification completed successfully, the image has already been written.
Running
Open a serial terminal on the V5F console port at 115200 baud, then reset the board:
$ screen /dev/ttyACM0 115200
The hello_world sample on the V5F target should print:
Hello World! ch32h417evt/ch32h417/v5f
The blinky sample on the V5F target should toggle PB1 with the sample’s normal timing.
Debugging
The board can be debugged with a WCH-LinkE compatible OpenOCD configuration. When debugging the V5F target, remember that V5F is not active immediately after cold reset. The V3F waker must run first and wake V5F at 0x08010000.
