WCH CH32V305F-EVT-R0
Overview

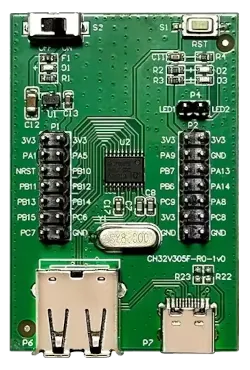

The WCH [1] CH32V305F-EVT-R0 is an evaluation board for the RISC-V based CH32V305FBP6 SOC.
The board is equipped with a power LED, reset button, USB port for power/data, and two user LEDs.
Hardware
The QingKe V4F 32-bit RISC-V processor of the WCH CH32V305F-EVT-R0 is clocked by an external crystal and runs at 144 MHz.
The WCH webpage on CH32V30x [2] contains the processor’s information and the datasheet. WCH CH32V305F-EVT-R0 board schematics can be found on CH32V307 openwch git repository [6]. Note that the documentation for the CH32V305 is located under the CH32V307 pages.
Warning
Most WCH dev kits do not come with the USB CC line pull-downs fitted. To power the board from a USB C adapter you need to fit them. However there is no USB VBUS diode on the board so be careful not to power a device from USB and external supply simultaneously!
Supported Features
The ch32v305f_evt_r0 board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
ch32v305f_evt_r0/ch32v305 target
On-target memory for this board target: 32 KiB of RAM, 128 KiB of Flash.
Type |
Location |
Description |
Compatible |
|---|---|---|---|
CPU |
on-chip |
WCH QingKe V4F RISC-V MCU1 |
|
Clock control |
on-chip |
WCH CH32V00x Reset and Clock Control (RCC)1 |
|
on-chip |
WCH CH32V00x HSE Clock1 |
||
on-chip |
WCH CH32V00x HSI Clock1 |
||
on-chip |
Generic fixed-rate clock provider1 |
||
on-chip |
WCH CH32V20x/30x PLL1 |
||
DMA |
on-chip |
WCH DMA controller2 |
|
GPIO & Headers |
on-chip |
WCH CH32V00x General-Purpose Input/Output (GPIO)5 |
|
I2C |
on-chip |
WCH I2C controller2 |
|
Interrupt controller |
on-chip |
WCH CH32V00x Programmable Fast Interrupt Controller (PFIC)1 |
|
on-chip |
WCH CH32V003/20x/30x External Interrupt and Event Controller (EXTI)1 |
||
LED |
on-board |
Group of GPIO-controlled LEDs1 |
|
MTD |
on-chip |
Flash node1 |
|
Pin control |
on-chip |
WCH CH32V20x/30x AFIO1 |
|
RNG |
on-chip |
WCH CH32 RNG (Random Number Generator)1 |
|
Serial controller |
on-chip |
||
SPI |
on-chip |
WCH SPI3 |
|
SRAM |
on-chip |
Generic on-chip SRAM1 |
|
Timer |
on-chip |
WCH CH32V00x Systick1 |
|
Watchdog |
on-chip |
WCH Independent Watchdog (IWDG)1 |
Connections and IOs
LED
Board LEDs are not connected to SoC in layout. For blinky and threads sample
applications you have to use jumper wires to connect them to I/O pins. You also need
to change leds status to “okay” in boards/wch/ch32v305f_evt_r0/ch32v305f_evt_r0.dts.
P4 header |
P2 header |
|---|---|
LED1 |
PB6 |
LED2 |
PB7 |
Programming and Debugging
The ch32v305f_evt_r0 board supports the runners and associated west commands listed below.
| flash | debug | debugserver | rtt | attach | |
|---|---|---|---|---|---|
| minichlink | ✅ (default) | ||||
| openocd | ✅ | ✅ (default) | ✅ | ✅ | ✅ |
| wchisp | ✅ | ||||
| wlink | ✅ |
Applications for the ch32v305f_evt_r0 board can be built and flashed
in the usual way (see Building an Application and Run an Application
for more details).
Flashing
You can use minichlink [3] to flash the board. Once minichlink has been set
up, build and flash applications as usual (see Building an Application and
Run an Application for more details). wlink [4] is an alternative tool for using
the WCH programmers. Alternatively, wchisp [5] can be used to flash via the USB bootloader.
Here is an example for the Blinky application.
# From the root of the zephyr repository
west build -b ch32v305f_evt_r0 samples/basic/blinky
west flash
Or you can use Basic thread manipulation sample to test both LEDs.
# From the root of the zephyr repository
west build -b ch32v305f_evt_r0 samples/basic/threads
west flash
Debugging
This board can be debugged via minichlink / openocd.
