DHSBC STM32MP255C

Overview

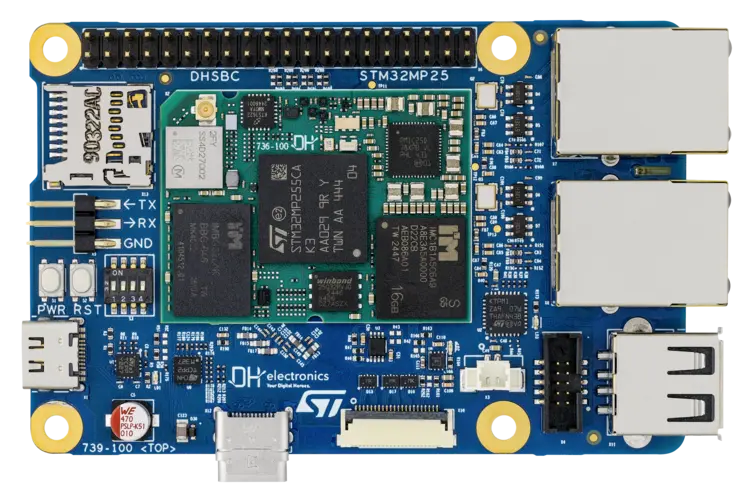

The DHSBC STM32MP255C is an industrial-grade, ready-to-use single board computer that has been specially developed for IoT and Human Machine Interface (HMI) applications. It is based on the solderable, pin-compatible DHCOS STM32MP2 System on Module, which enables a modular and scalable system architecture. The platform is designed for high performance, long-term availability of over ten years and use in demanding industrial environments.

With full support for mainline Linux, including the Vivante GPU, the DHSBC STM32MP255C provides a future-proof software base for the development of graphical user interfaces and complex applications. Integrated security functions such as Secure Boot and Secure Storage ensure the protection of sensitive data and enable the implementation of “Security by Design” approaches. Connectivity options range from Gbit-Ethernet, WiFi and Bluetooth to advanced multimedia functions such as 3D GPU, display, camera and video support. Thanks to the integrated STPMIC25 power management chip, the DHSBC STM32MP255C is also suitable for applications with high demands on energy efficiency and low-power modes.

Zephyr OS is ported to run on the Cortex®-M33 core as a coprocessor of the Cortex®-A35 cores, enabling real-time and low-power applications alongside Linux-based high-performance processing on the application cores.

Features:

  • STM32MP255CAK3 microprocessor featuring dual-core Arm® Cortex®-A35, a Cortex®-M33 and a Cortex®-M0+ in a VFBGA424 package

  • ST power management STPMIC25DPQR

  • 4 GB DRAM (LPDDR4-2400 32-bit)

  • 16 GB eMMC flash

  • 4 MB SPI NOR flash

  • 4 kB EEPROM

  • Two 1-Gbit/s Ethernet (RGMII)

  • High-speed USB Host hub

  • High-speed USB Type-C 3.2 Gen 1x1 with DisplayPort alt. mode support

  • Bluetooth® v5.4 BR/EDR/LE

  • WiFi (Tri band 2.4 GHz, 5 GHz and 6 GHz for IEEE802.11a/b/g/n/ac/ax)

  • Power and Reset buttons

  • Four boot pin switches

  • Board connectors:

    • Two Ethernet RJ45

    • One USB Host Type-A

    • USB Type-C® (data)

    • USB Type-C® (power supply)

    • microSD™ card holder

    • Dual-lane MIPI CSI-2® camera module expansion connector

    • LVDS

    • Three-pin UART connector (serial console)

    • Raspberry Pi 40-pin expansion connector

    • VBAT for RTC and backup SRAM

    • JTAG

  • Linux® Yocto project BSP

More information about the board and SoC can be found at the STM32MP255C-DHSBC website [1], STM32MP255C website [5] and the STM32MP255C reference manual [6]

Hardware

Cores:

  • 64-bit dual-core Arm® Cortex®-A35 with 1.2 GHz max frequency

    • 32-Kbyte I + 32-Kbyte D level 1 cache for each Cortex®-A35 core

    • 512-Kbyte unified level 2 cache

    • Arm® NEON™ and Arm® TrustZone®

  • 32-bit Arm® Cortex®-M33 with FPU/MPU, Arm® TrustZone®, and 400 MHz max frequency

    • L1 16-Kbyte ICache / 16-Kbyte DCache for Cortex®-M33

  • 32-bit Arm® Cortex®-M0+ in SmartRun domain with 200 MHz max frequency (up to 16 MHz in autonomous mode)

Memories:

  • External DDR memory 4 Gbytes (LPDDR4-2400 32-bit)

  • 808-Kbyte internal SRAM: 256-Kbyte AXI SYSRAM, 128-Kbyte AXI video RAM or SYSRAM extension, 256-Kbyte AHB SRAM, 128-Kbyte AHB SRAM with ECC in backup domain, 8-Kbyte SRAM with ECC in backup domain, 32 Kbytes in SmartRun domain

  • Two Octo-SPI memory interfaces

  • Flexible external memory controller with up to 16-bit data bus: parallel interface to connect external ICs, and SLC NAND memories with up to 8-bit ECC

Power

  • STPMIC25 for voltage regulation (multiple buck/LDO regulators)

  • USB-C for power input

  • VBAT backup battery connector (RTC, backup SRAM)

Clock management

  • External oscillators:

    • 32.768 kHz LSE crystal

    • 40 MHz HSE crystal

  • Internal oscillators:

    • 64 MHz HSI oscillator

    • 4 MHz CSI oscillator

    • 32 kHz LSI oscillator

    • Five separate PLLs with integer and fractional mode

Security/Safety

  • Secure boot, TrustZone® peripherals, active tamper, environmental monitors, display secure layers, hardware accelerators

  • Complete resource isolation framework

Connectivity

  • 2x Gigabit Ethernet (RGMII)

  • USB 2.0 High-Speed Host

  • USB Type-C®

  • Raspberry Pi 40-pin expansion connector

Display & Camera

  • LVDS interface (1x Dual Link, 2x 4-lane LVDS connector)

  • MIPI-CSI2 1x 2-lanes connector

Supported Features

The stm32mp255c_dhsbc board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

stm32mp255c_dhsbc/stm32mp255cxx/m33 target

On-target memory for this board target: 8 MiB of RAM, 8 MiB of Flash.

Type

Location

Description

Compatible

CPU

on-chip

ARM Cortex-M33 CPU1

arm,cortex-m33

CAN

on-chip

STM32H7 series (and compatible) FDCAN CAN FD controller12

st,stm32h7-fdcan

Clock control

on-chip

STM32MP2 RCC (Reset and Clock controller)1

st,stm32mp2-rcc

on-chip

Generic fixed-rate clock provider2

fixed-clock

CRC

on-chip

STM32 CRC calculation unit1

st,stm32-crc

GPIO & Headers

on-chip

STM32MP2 GPIO Controller12

st,stm32mp2-gpio

on-board

GPIO pins exposed on Raspberry Pi 40-pin header1

raspberrypi-40pins-header

I2C

on-chip

STM32 I2C V2 controller8

st,stm32-i2c-v2

I3C

on-chip

STM32H5 I3C controller4

st,stm32-i3c

Interrupt controller

on-chip

ARMv8-M NVIC (Nested Vectored Interrupt Controller)1

arm,v8m-nvic

on-chip

STM32 External Interrupt Controller1

st,stm32-exti

IPM

on-chip

STM32 IPCC MAILBOX1

st,stm32-ipcc-mailbox

Pin control

on-chip

STM32 Pin controller1

st,stm32-pinctrl

Reset controller

on-chip

STM32 Reset and Clock Control (RCC) Controller1

st,stm32-rcc-rctl

Serial controller

on-chip

STM32 USART4

st,stm32-usart

on-chip

STM32 UART14

st,stm32-uart

SPI

on-chip

STM32H7 SPI controller17

st,stm32h7-spi

Timer

on-chip

ARMv8-M System Tick1

arm,armv8m-systick

Watchdog

on-chip

STM32 watchdog1

st,stm32-watchdog

on-chip

STM32 system window watchdog1

st,stm32-window-watchdog

Connections and IOs

For connections and IOs see the quick start guide of the DHSBC STM32MP255C board: STM32MP255C-DHSBC quick start guide [2]

System Clock

Cortex®-A35

Not yet supported in Zephyr.

Cortex®-M33

The Cortex®-M33 Core is configured to run at a 400 MHz clock speed.

Programming and Debugging

The stm32mp255c_dhsbc board supports the runners and associated west commands listed below.

flash debug reset debugserver rtt attach
jlink ✅ (default) ✅ (default) ✅ ✅ ✅ ✅
openocd ✅ ✅ ✅ ✅ ✅

Prerequisite

Before you can run Zephyr on the DHSBC STM32MP255C, you need to set up the Cortex®-A35 core with a Linux® environment. The Cortex®-M33 core runs Zephyr as a coprocessor, and it requires the Cortex®-A35 to load and start the firmware using remoteproc.

One way to set up the Linux environment is to use the DH electronics KAS/Yocto Repository to build a Linux image: STM32MP255C-DHSBC kas yocto [3] . There are also pre-built images: STM32MP255C-DHSBC prebuild images [4].

Another way is to use the OpenSTLinux distribution, following the Starter Package 5. (more information about the procedure can be found in the STM32MPU Wiki [8])

Loading the firmware

Once the Linux distribution is installed on the board, the Cortex® -A35 is responsible for loading the Zephyr firmware image in DDR and/or SRAM and starting the Cortex®-M33 core. The application can be built using west, taking the Hello World as an example.

# From the root of the zephyr repository
west build -b stm32mp255c_dhsbc/stm32mp255cxx/m33 samples/hello_world

The firmware can be copied to the board file system and started with the Linux remoteproc framework.

To start the firmware:

$ cp zephyr.elf /lib/firmware/
$ echo -n zephyr.elf > /sys/class/remoteproc/remoteproc0/firmware
$ echo start > /sys/class/remoteproc/remoteproc0/state

To stop the firmware:

$ echo stop > /sys/class/remoteproc/remoteproc0/state

More information about the procedure can be found in the STM32MP257F boot Cortex-M33 firmware [7] ST Wiki page.

Debugging

Applications can be debugged using a J-Link with the J-Link Software Pack or with a ST-Link with OpenOCD. The default is J-Link.

For ST-Link the newest OpenOCD version of ST must be used, the files can be found at device-stm-openocd [9]. To use this version use the --openocd and --openocd-search flags with west attach.

The firmware must first be started by the Cortex®-A35. The debugger can then be attached to the running Zephyr firmware.

  • Build the sample

# From the root of the zephyr repository
west build -b stm32mp255c_dhsbc/stm32mp255cxx/m33 samples/drivers/uart/echo_bot

  • Copy the firmware to the board, load it and start it with remoteproc (STM32MP257F boot Cortex-M33 firmware [7]). It will echo back all bytes on raspberry_pi_serial.

  • Attach to the target with J-Link:

$ west attach

  • Alternatively attach to the target with ST-Link and OpenOCD (it is assumed ST’s OpenOCD was downloaded to /opt/device-stm-openocd):

$ west attach --runner openocd \
  --openocd "/opt/device-stm-openocd/prebuilt/openocd" \
  --openocd-search "/opt/device-stm-openocd/prebuilt/scripts/"
