MuseLab nanoCH32V317

Board Overview

MuseLab nanoCH32V317

Name:

nano_ch32v317

Vendor:

MuseLab Electronics

Status:

Not actively maintained

Architecture:

riscv

SoC:

ch32v317

Browse board sources

Overview

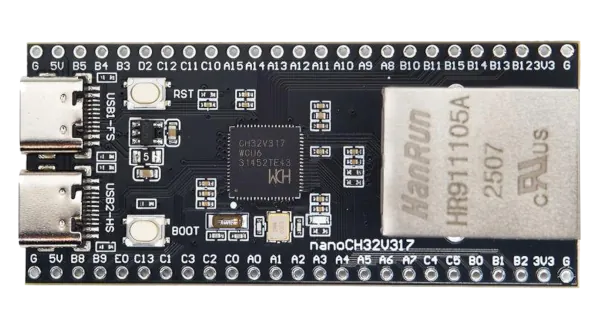

The MuseLab nanoCH32V317 is a development board for the RISC-V based CH32V317WCU6 SOC.

The board is equipped with a reset button, a boot button, one user LED, two USB ports and an Ethernet Jack.

Hardware

The QingKe V4F 32-bit RISC-V processor of the MuseLab nanoCH32V317 is clocked by an external crystal and runs at 144 MHz.

The chip’s most unique feature is an integrated Ethernet MAC and PHY that supports 100BASE-TX Ethernet.

The WCH webpage on CH32V31x [1] contains the processor’s information and the datasheet. MuseLab nanoCH32V317 board schematics can be found on nanoCH32V317 git repository [5].

Warning

There is no USB VBUS diode on the board so be careful not to power a device from USB and external supply simultaneously!

Supported Features

The nano_ch32v317 board supports the hardware features listed below.

on-chip / on-board

Feature integrated in the SoC / present on the board.

2 / 2

Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.

vnd,foo

Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

nano_ch32v317/ch32v317 target

On-target memory for this board target: 32 KiB of RAM, 480 KiB of Flash.

Type	Location	Description	Compatible
CPU	on-chip	WCH QingKe V4F RISC-V MCU1	wch,qingke-v4f
Clock control	on-chip	WCH CH32V00x Reset and Clock Control (RCC)1	wch,rcc
	on-chip	WCH CH32V00x HSE Clock1	wch,ch32v00x-hse-clock
	on-chip	WCH CH32V00x HSI Clock1	wch,ch32v00x-hsi-clock
	on-chip	Generic fixed-rate clock provider1	fixed-clock
	on-chip	WCH CH32V20x/30x PLL1	wch,ch32v20x_30x-pll-clock
DMA	on-chip	WCH DMA controller2	wch,wch-dma
Ethernet	on-chip	Contains the Ethernet MAC and the MDIO as child nodes1	wch,ethernet-controller
	on-chip	Ethernet MAC Controller for WCH CH32 series MCUs1	wch,ethernet
	on-chip	WCH MDIO Controller1	wch,mdio
	on-board	Generic MII PHY1	ethernet-phy
GPIO & Headers	on-chip	WCH CH32V00x General-Purpose Input/Output (GPIO)5	wch,gpio
I2C	on-chip	WCH I2C controller2	wch,i2c
Interrupt controller	on-chip	WCH CH32V00x Programmable Fast Interrupt Controller (PFIC)1	wch,pfic
	on-chip	WCH CH32V003/20x/30x External Interrupt and Event Controller (EXTI)1	wch,exti
LED	on-board	Group of GPIO-controlled LEDs1	gpio-leds
MTD	on-chip	Flash node1	soc-nv-flash
Pin control	on-chip	WCH CH32V20x/30x AFIO1	wch,20x_30x-afio
RNG	on-chip	WCH CH32 RNG (Random Number Generator)1	wch,rng
Serial controller	on-chip	WCH CH32V00x UART17	wch,usart
SPI	on-chip	WCH SPI3	wch,spi
SRAM	on-chip	Generic on-chip SRAM1	mmio-sram
Timer	on-chip	WCH CH32V00x Systick1	wch,systick
Watchdog	on-chip	WCH Independent Watchdog (IWDG)1	wch,iwdg

nano_ch32v317/ch32v317/ram_128k target

On-target memory for this board target: 128 KiB of RAM, 480 KiB of Flash.

Type	Location	Description	Compatible
CPU	on-chip	WCH QingKe V4F RISC-V MCU1	wch,qingke-v4f
Clock control	on-chip	WCH CH32V00x Reset and Clock Control (RCC)1	wch,rcc
	on-chip	WCH CH32V00x HSE Clock1	wch,ch32v00x-hse-clock
	on-chip	WCH CH32V00x HSI Clock1	wch,ch32v00x-hsi-clock
	on-chip	Generic fixed-rate clock provider1	fixed-clock
	on-chip	WCH CH32V20x/30x PLL1	wch,ch32v20x_30x-pll-clock
DMA	on-chip	WCH DMA controller2	wch,wch-dma
Ethernet	on-chip	Contains the Ethernet MAC and the MDIO as child nodes1	wch,ethernet-controller
	on-chip	Ethernet MAC Controller for WCH CH32 series MCUs1	wch,ethernet
	on-chip	WCH MDIO Controller1	wch,mdio
	on-board	Generic MII PHY1	ethernet-phy
GPIO & Headers	on-chip	WCH CH32V00x General-Purpose Input/Output (GPIO)5	wch,gpio
I2C	on-chip	WCH I2C controller2	wch,i2c
Interrupt controller	on-chip	WCH CH32V00x Programmable Fast Interrupt Controller (PFIC)1	wch,pfic
	on-chip	WCH CH32V003/20x/30x External Interrupt and Event Controller (EXTI)1	wch,exti
LED	on-board	Group of GPIO-controlled LEDs1	gpio-leds
MTD	on-chip	Flash node1	soc-nv-flash
Pin control	on-chip	WCH CH32V20x/30x AFIO1	wch,20x_30x-afio
RNG	on-chip	WCH CH32 RNG (Random Number Generator)1	wch,rng
Serial controller	on-chip	WCH CH32V00x UART17	wch,usart
SPI	on-chip	WCH SPI3	wch,spi
SRAM	on-chip	Generic on-chip SRAM1	mmio-sram
Timer	on-chip	WCH CH32V00x Systick1	wch,systick
Watchdog	on-chip	WCH Independent Watchdog (IWDG)1	wch,iwdg

nano_ch32v317/ch32v317/ram_192k target

On-target memory for this board target: 192 KiB of RAM, 480 KiB of Flash.

Type	Location	Description	Compatible
CPU	on-chip	WCH QingKe V4F RISC-V MCU1	wch,qingke-v4f
Clock control	on-chip	WCH CH32V00x Reset and Clock Control (RCC)1	wch,rcc
	on-chip	WCH CH32V00x HSE Clock1	wch,ch32v00x-hse-clock
	on-chip	WCH CH32V00x HSI Clock1	wch,ch32v00x-hsi-clock
	on-chip	Generic fixed-rate clock provider1	fixed-clock
	on-chip	WCH CH32V20x/30x PLL1	wch,ch32v20x_30x-pll-clock
DMA	on-chip	WCH DMA controller2	wch,wch-dma
Ethernet	on-chip	Contains the Ethernet MAC and the MDIO as child nodes1	wch,ethernet-controller
	on-chip	Ethernet MAC Controller for WCH CH32 series MCUs1	wch,ethernet
	on-chip	WCH MDIO Controller1	wch,mdio
	on-board	Generic MII PHY1	ethernet-phy
GPIO & Headers	on-chip	WCH CH32V00x General-Purpose Input/Output (GPIO)5	wch,gpio
I2C	on-chip	WCH I2C controller2	wch,i2c
Interrupt controller	on-chip	WCH CH32V00x Programmable Fast Interrupt Controller (PFIC)1	wch,pfic
	on-chip	WCH CH32V003/20x/30x External Interrupt and Event Controller (EXTI)1	wch,exti
LED	on-board	Group of GPIO-controlled LEDs1	gpio-leds
MTD	on-chip	Flash node1	soc-nv-flash
Pin control	on-chip	WCH CH32V20x/30x AFIO1	wch,20x_30x-afio
RNG	on-chip	WCH CH32 RNG (Random Number Generator)1	wch,rng
Serial controller	on-chip	WCH CH32V00x UART17	wch,usart
SPI	on-chip	WCH SPI3	wch,spi
SRAM	on-chip	Generic on-chip SRAM1	mmio-sram
Timer	on-chip	WCH CH32V00x Systick1	wch,systick
Watchdog	on-chip	WCH Independent Watchdog (IWDG)1	wch,iwdg

nano_ch32v317/ch32v317/ram_64k target

On-target memory for this board target: 64 KiB of RAM, 480 KiB of Flash.

Type	Location	Description	Compatible
CPU	on-chip	WCH QingKe V4F RISC-V MCU1	wch,qingke-v4f
Clock control	on-chip	WCH CH32V00x Reset and Clock Control (RCC)1	wch,rcc
	on-chip	WCH CH32V00x HSE Clock1	wch,ch32v00x-hse-clock
	on-chip	WCH CH32V00x HSI Clock1	wch,ch32v00x-hsi-clock
	on-chip	Generic fixed-rate clock provider1	fixed-clock
	on-chip	WCH CH32V20x/30x PLL1	wch,ch32v20x_30x-pll-clock
DMA	on-chip	WCH DMA controller2	wch,wch-dma
Ethernet	on-chip	Contains the Ethernet MAC and the MDIO as child nodes1	wch,ethernet-controller
	on-chip	Ethernet MAC Controller for WCH CH32 series MCUs1	wch,ethernet
	on-chip	WCH MDIO Controller1	wch,mdio
	on-board	Generic MII PHY1	ethernet-phy
GPIO & Headers	on-chip	WCH CH32V00x General-Purpose Input/Output (GPIO)5	wch,gpio
I2C	on-chip	WCH I2C controller2	wch,i2c
Interrupt controller	on-chip	WCH CH32V00x Programmable Fast Interrupt Controller (PFIC)1	wch,pfic
	on-chip	WCH CH32V003/20x/30x External Interrupt and Event Controller (EXTI)1	wch,exti
LED	on-board	Group of GPIO-controlled LEDs1	gpio-leds
MTD	on-chip	Flash node1	soc-nv-flash
Pin control	on-chip	WCH CH32V20x/30x AFIO1	wch,20x_30x-afio
RNG	on-chip	WCH CH32 RNG (Random Number Generator)1	wch,rng
Serial controller	on-chip	WCH CH32V00x UART17	wch,usart
SPI	on-chip	WCH SPI3	wch,spi
SRAM	on-chip	Generic on-chip SRAM1	mmio-sram
Timer	on-chip	WCH CH32V00x Systick1	wch,systick
Watchdog	on-chip	WCH Independent Watchdog (IWDG)1	wch,iwdg

nano_ch32v317/ch32v317/ram_96k target

On-target memory for this board target: 96 KiB of RAM, 480 KiB of Flash.

Type	Location	Description	Compatible
CPU	on-chip	WCH QingKe V4F RISC-V MCU1	wch,qingke-v4f
Clock control	on-chip	WCH CH32V00x Reset and Clock Control (RCC)1	wch,rcc
	on-chip	WCH CH32V00x HSE Clock1	wch,ch32v00x-hse-clock
	on-chip	WCH CH32V00x HSI Clock1	wch,ch32v00x-hsi-clock
	on-chip	Generic fixed-rate clock provider1	fixed-clock
	on-chip	WCH CH32V20x/30x PLL1	wch,ch32v20x_30x-pll-clock
DMA	on-chip	WCH DMA controller2	wch,wch-dma
Ethernet	on-chip	Contains the Ethernet MAC and the MDIO as child nodes1	wch,ethernet-controller
	on-chip	Ethernet MAC Controller for WCH CH32 series MCUs1	wch,ethernet
	on-chip	WCH MDIO Controller1	wch,mdio
	on-board	Generic MII PHY1	ethernet-phy
GPIO & Headers	on-chip	WCH CH32V00x General-Purpose Input/Output (GPIO)5	wch,gpio
I2C	on-chip	WCH I2C controller2	wch,i2c
Interrupt controller	on-chip	WCH CH32V00x Programmable Fast Interrupt Controller (PFIC)1	wch,pfic
	on-chip	WCH CH32V003/20x/30x External Interrupt and Event Controller (EXTI)1	wch,exti
LED	on-board	Group of GPIO-controlled LEDs1	gpio-leds
MTD	on-chip	Flash node1	soc-nv-flash
Pin control	on-chip	WCH CH32V20x/30x AFIO1	wch,20x_30x-afio
RNG	on-chip	WCH CH32 RNG (Random Number Generator)1	wch,rng
Serial controller	on-chip	WCH CH32V00x UART17	wch,usart
SPI	on-chip	WCH SPI3	wch,spi
SRAM	on-chip	Generic on-chip SRAM1	mmio-sram
Timer	on-chip	WCH CH32V00x Systick1	wch,systick
Watchdog	on-chip	WCH Independent Watchdog (IWDG)1	wch,iwdg

Programming and Debugging

The nano_ch32v317 board supports the runners and associated west commands listed below.

	flash	debug	debugserver	rtt	attach
minichlink	✅ (default)
openocd	✅	✅ (default)	✅	✅	✅
wchisp	✅
wlink	✅

Applications for the nano_ch32v317 board can be built and flashed in the usual way (see Building an Application and Run an Application for more details).

Flashing

You can use minichlink [2] to flash the board. Once minichlink has been set up, build and flash applications as usual (see Building an Application and Run an Application for more details). wlink [3] is an alternative tool for using the WCH programmers. Alternatively, wchisp [4] can be used to flash via the USB bootloader.

Here is an example for the Blinky application.

# From the root of the zephyr repository
west build -b nano_ch32v317 samples/basic/blinky
west flash

Or you can use DHCPv4 client sample to test evaluate the built-in Ethernet peripheral

# From the root of the zephyr repository
west build -b nano_ch32v317 samples/net/dhcpv4_client
west flash

Debugging

This board can be debugged via minichlink / openocd.

References

[1]

https://www.wch-ic.com/downloads/CH32V20x_30xDS0_PDF.html

[2]

https://github.com/cnlohr/ch32fun/tree/master/minichlink

[3]

https://github.com/ch32-rs/wlink

[4]

https://github.com/ch32-rs/wchisp

[5]

https://github.com/wuxx/nanoCH32V317
