Cytron Maker Uno RP2040

Overview

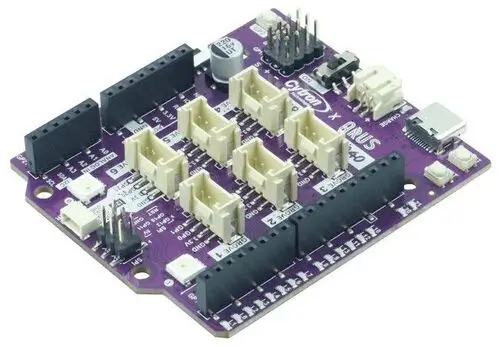

The Cytron Maker Uno RP2040 [1] board is based on the RP2040 microcontroller from Raspberry Pi Ltd. The board has an Arduino header, several Grove connectors and a USB type C connector.

Hardware

  • Microcontroller Raspberry Pi RP2040, with a max frequency of 133 MHz

  • Dual ARM Cortex M0+ cores

  • 264 kByte SRAM

  • 2 Mbyte QSPI flash

  • 16 GPIO pins

  • 4 ADC pins

  • I2C

  • SPI

  • UART

  • USB type C connector

  • LiPo charger

  • Reset, boot and user buttons

  • 2 RGB LEDs (Neopixels)

  • Piezo buzzer with mute switch

  • 4 servo ports

  • Maker/Qwiic/Stemma QT/zephyr_i2c connector

  • 6 Grove connectors

  • Status indicators for digital pins

Default Zephyr Peripheral Mapping

The RGB LEDs are connected to GPIO25, and its pin mux setting is PIO0.

Arduino headers (note that GPIO20 and GPIO21 appear twice):

Label

Pin

Default pin mux

Also in connector

A0

GPIO26

ADC0

Grove 3

A1

GPIO27

ADC1

Grove 4

A2

GPIO28

ADC2

Grove 5

A3

GPIO29

ADC3

Grove 5

SDA

GPIO20

I2C0 SDA

Grove 6, Maker

SCL

GPIO21

I2C0 SCL

Grove 6, Maker

GP1

GPIO1

UART0 RX

Grove 1

GP0

GPIO0

UART0 TX

Grove 1

GP2

GPIO2

GPIO pull-up

User button

GP3

GPIO3

(Alias led0)

GP4

GPIO4

Grove 2

GP5

GPIO5

Grove 2

GP6

GPIO6

Grove 3

GP7

GPIO7

Grove 4

GP8

GPIO8

Buzzer

GP9

GPIO9

GP13

GPIO13

SPI1 CS

GP11

GPIO11

SPI1 MOSI

SPI header

GP12

GPIO12

SPI1 MISO

SPI header

GP10

GPIO10

SPI1 SCK

SPI header

GP20

GPIO20

I2C0 SDA

Grove 6, Maker

GP21

GPIO21

I2C0 SCL

Grove 6, Maker

SPI 6-pin header (pins also available in the Arduino header):

Label

Pin

Default pin mux

GP10

GPIO10

SPI1 SCK

GP11

GPIO11

SPI1 MOSI

GP12

GPIO12

SPI1 MISO

Servo header:

Label

Pin

Default pin mux

Zephyr PWM name

GP14

GPIO14

PWM7A

14

GP15

GPIO15

PWM7B

15

GP16

GPIO16

PWM0A

0

GP17

GPIO17

PWM0B

1

Grove connector 1 (pins also available in the Arduino header):

Label

Pin

Default pin mux

GP1

GPIO1

UART0 RX

GP0

GPIO0

UART0 TX

Grove connector 2 (pins also available in the Arduino header):

Label

Pin

GP4

GPIO4

GP5

GPIO5

Grove connector 3 (pins also available in the Arduino header):

Label

Pin

Default pin mux

GP6

GPIO6

A0

GPIO26

ADC0

Grove connector 4 (pins also available in the Arduino header):

Label

Pin

Default pin mux

GP7

GPIO7

A1

GPIO27

ADC1

Grove connector 5 (pins also available in the Arduino header):

Label

Pin

Default pin mux

A2

GPIO28

ADC2

A3

GPIO29

ADC3

Grove connector 6 (pins also available in the Maker connector and Arduino header):

Label

Pin

Default pin mux

GP20

GPIO20

I2C0 SDA

GP21

GPIO21

I2C0 SCL

Maker connector, also known as Qwiic/Stemma QT/zephyr_i2c. The pins are also available in Grove 6 and the Arduino header:

Label

Pin

Default pin mux

GP20

GPIO20

I2C0 SDA

GP21

GPIO21

I2C0 SCL

See also schematic [2].

Supported Features

The maker_uno_rp2040 board supports the hardware features listed below.

on-chip / on-board
Feature integrated in the SoC / present on the board.
2 / 2
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

maker_uno_rp2040/rp2040 target

Type

Location

Description

Compatible

CPU

on-chip

ARM Cortex-M0+ CPU2

arm,cortex-m0+

ADC

on-chip

Raspberry Pi Pico ADC1

raspberrypi,pico-adc

Clock control

on-chip

Raspberry Pi Pico clock controller node1

raspberrypi,pico-clock-controller

on-chip

The representation of Raspberry Pi Pico’s clock112

raspberrypi,pico-clock

on-chip

The representation of Raspberry Pi Pico’s PLL2

raspberrypi,pico-pll

on-chip

The representation of Raspberry Pi Pico ring oscillator1

raspberrypi,pico-rosc

on-chip

The representation of Raspberry Pi Pico external oscillator1

raspberrypi,pico-xosc

Counter

on-chip

Raspberry Pi Pico timer1

raspberrypi,pico-timer

DMA

on-chip

Raspberry Pi Pico DMA1

raspberrypi,pico-dma

Flash controller

on-chip

Raspberry Pi Pico flash controller1

raspberrypi,pico-flash-controller

GPIO & Headers

on-chip

Raspberry Pi Pico GPIO1

raspberrypi,pico-gpio

on-chip

Raspberry Pi Pico GPIO Port1

raspberrypi,pico-gpio-port

on-board

GPIO pins exposed on Arduino Uno (R3) headers1

arduino-header-r3

on-board

STEMMA QT is a 4-pin JST-SH connector for I2C devices1

stemma-qt-connector

I2C

on-chip

Raspberry Pi Pico I2C11

raspberrypi,pico-i2c

Input

on-board

Group of GPIO-bound input keys1

gpio-keys

Interrupt controller

on-chip

ARMv6-M NVIC (Nested Vectored Interrupt Controller) controller1

arm,v6m-nvic

LED

on-board

Group of GPIO-controlled LEDs1

gpio-leds

LED strip

on-board

The pio node configured for ws28121

worldsemi,ws2812-rpi_pico-pio

Miscellaneous

on-chip

Raspberry Pi Pico PIO11

raspberrypi,pico-pio

MTD

on-chip

Flash node1

soc-nv-flash

on-board

Fixed partitions of a flash (or other non-volatile storage) memory1

fixed-partitions

Pin control

on-chip

Raspberry Pi Pico Pin Controller1

raspberrypi,pico-pinctrl

PWM

on-chip

Raspberry Pi Pico PWM1

raspberrypi,pico-pwm

Regulator

on-chip

Raspberry Pi Pico core supply regurator1

raspberrypi,core-supply-regulator

Reset controller

on-chip

Raspberry Pi Pico Reset Controller1

raspberrypi,pico-reset

RTC

on-chip

Raspberry Pi Pico RTC1

raspberrypi,pico-rtc

Sensors

on-chip

Raspberry Pi Pico family temperature sensor node1

raspberrypi,pico-temp

Serial controller

on-chip

Raspberry Pi Pico UART11

raspberrypi,pico-uart

SPI

on-chip

Raspberry Pi Pico SPI11

raspberrypi,pico-spi

SRAM

on-chip

Generic on-chip SRAM1

mmio-sram

Timer

on-chip

ARMv6-M System Tick1

arm,armv6m-systick

USB

on-chip

Raspberry Pi Pico USB Device Controller1

raspberrypi,pico-usbd

Watchdog

on-chip

Raspberry Pi Pico Watchdog1

raspberrypi,pico-watchdog

Programming and Debugging

The maker_uno_rp2040 board supports the runners and associated west commands listed below.

flash debug
uf2 ✅ (default)

The Maker Uno RP2040 board does not expose the SWDIO and SWCLK pins, so programming must be done via the USB port. Press and hold the BOOT button, and then press the RST button, and the device will appear as a USB mass storage unit. Building your application will result in a build/zephyr/zephyr.uf2 file. Drag and drop the file to the USB mass storage unit, and the board will be reprogrammed.

For more details on programming RP2040-based boards, see Programming and Debugging.

Flashing

To run the LED strip sample:

# From the root of the zephyr repository
west build -b maker_uno_rp2040 samples/drivers/led/led_strip/
west flash

Try also the Hello World, Blinky, Button, Input dump and Analog-to-Digital Converter (ADC) with devicetree samples.

The use of the Maker/Qwiic/Stemma QT I2C connector is demonstrated using the Generic Light Sensor Polling sample and a separate shield:

# From the root of the zephyr repository
west build -b maker_uno_rp2040 --shield adafruit_veml7700 samples/sensor/light_polling
west flash

Use the shell to control the GPIO pins:

# From the root of the zephyr repository
west build -b maker_uno_rp2040 samples/sensor/sensor_shell -- -DCONFIG_GPIO=y -DCONFIG_GPIO_SHELL=y
west flash

To set one of the GPIO pins high, use these commands in the shell, and study the indicator LEDs:

gpio conf gpio0 2 o
gpio set gpio0 2 1

Servo motor control is done via PWM outputs. The Servomotor sample sets servo position timing (via an overlay file) for the output GP14:

# From the root of the zephyr repository
west build -b maker_uno_rp2040 samples/basic/servo_motor/
west flash

It is also possible to control servos via the pwm shell:

# From the root of the zephyr repository
west build -b maker_uno_rp2040 samples/sensor/sensor_shell -- -DCONFIG_PWM=y -DCONFIG_PWM_SHELL=y
west flash

Use shell commands to set the posiotion of the server. Most servo motor can handle pulse times between 800 and 2000 microseconds:

pwm usec pwm@40050000 14 20000 800
pwm usec pwm@40050000 14 20000 2000

To use the buzzer, you must set the pin mux for GPIO8 to PWM. This is done by adding PWM_4A_P8 to the pwm_default section in the boards/cytron/maker_uno_rp2040/maker_uno_rp2040-pinctrl.dtsi file. Turn on the buzzer switch on the long side of the board. Then build using the same command as above for the sensor_shell.

Use these shell commands to turn on and off the buzzer:

pwm usec pwm@40050000 8 1000 500
pwm usec pwm@40050000 8 1000 0
