HOLYIOT 25008

Board Overview

HOLYIOT 25008

Name:

holyiot_25008

Vendor:

Shenzhen Holyiot Technology Co., Ltd.

Architecture:

arm

SoC:

nrf54l15

Browse board sources

Overview

The Holyiot 25008 module is based on the Nordic Semiconductor nRF54L15 SoC. It includes a 32 MHz crystal (HFXO), a 32.768 kHz crystal (LFXO), one RGB LED, one push button, and an LIS2DH12 accelerometer.

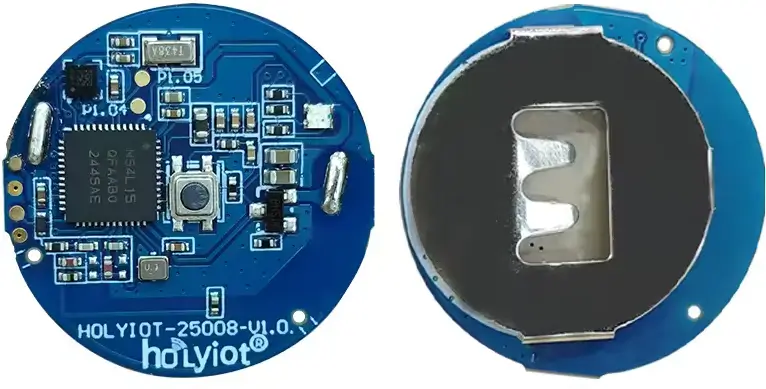

Holyiot 25008 module

Supported Features

The holyiot_25008 board supports the hardware features listed below.

on-chip / on-board

Feature integrated in the SoC / present on the board.

2 / 2

Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.

vnd,foo

Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

holyiot_25008/nrf54l15/cpuapp target

Type	Location	Description	Compatible
CPU	on-chip	ARM Cortex-M33F CPU1	arm,cortex-m33f
ADC	on-chip	Nordic Semiconductor nRF family SAADC node1	nordic,nrf-saadc
ARM architecture	on-chip	Nordic UICR (User Information Configuration Registers)1	nordic,nrf-uicr
	on-chip	Nordic EGU (Event Generator Unit)2	nordic,nrf-egu
Audio	on-chip	Nordic PDM (Pulse Density Modulation interface)2	nordic,nrf-pdm
Clock control	on-chip	Generic fixed-rate clock provider2	fixed-clock
	on-chip	Nordic nRF low-frequency crystal oscillator (nRF54L series)1	nordic,nrf54l-lfxo
	on-chip	Nordic nRF high-frequency crystal oscillator (nRF54L series)1	nordic,nrf54l-hfxo
	on-chip	Nordic nRF clock control node1	nordic,nrf-clock
Comparator	on-chip	Nordic nRF COMP (analog COMParator)1	nordic,nrf-comp
Counter	on-chip	Nordic nRF timer node7	nordic,nrf-timer
Debug	on-chip	ARMv8 instrumentation trace macrocell1	arm,armv8m-itm
Flash controller	on-chip	Nordic RRAMC (Resistive random access memory controller)1	nordic,rram-controller
GPIO & Headers	on-chip	NRF5 GPIO3	nordic,nrf-gpio
	on-chip	NRF5 GPIOTE2	nordic,nrf-gpiote
I2C	on-chip	Nordic nRF family TWIM (TWI master with EasyDMA)4	nordic,nrf-twim
I2S	on-chip	Nordic I2S (Inter-IC sound interface)1	nordic,nrf-i2s
IEEE 802.15.4	on-chip	Nordic nRF IEEE 802.15.4 node1	nordic,nrf-ieee802154
Input	on-board	Group of GPIO-bound input keys1	gpio-keys
Interrupt controller	on-chip	ARMv8-M NVIC (Nested Vectored Interrupt Controller)1	arm,v8m-nvic
LED	on-board	Group of GPIO-controlled LEDs1	gpio-leds
Mailbox	on-chip	Nordic VEVIF (VPR Event Interface) - EVENT RX MODE1	nordic,nrf-vevif-event-rx
	on-chip	Nordic VEVIF (VPR Event Interface) - TASK TX MODE1	nordic,nrf-vevif-task-tx
Miscellaneous	on-chip	Nordic FICR (Factory Information Configuration Registers)1	nordic,nrf-ficr
	on-chip	Nordic DPPIC (Distributed Programmable Peripheral Interconnect Controller)4	nordic,nrf-dppic
	on-chip	Nordic PPIB (Programmable Peripheral Interconnect Bridge)8	nordic,nrf-ppib
	on-chip	Nordic Memory Privilege Controller (MPC)1	nordic,nrf-mpc
MTD	on-chip	Flash node1	soc-nv-flash
	on-chip	Fixed partitions of a flash (or other non-volatile storage) memory1	fixed-partitions
Networking	on-chip	Nordic nRF family RADIO peripheral1	nordic,nrf-radio
	on-chip	Nordic nRF family NFCT (Near Field Communication Tag)1	nordic,nrf-nfct
Pin control	on-chip	Nordic nRF family Pin Controller1	nordic,nrf-pinctrl
Power management	on-chip	Nordic nRF power control node1	nordic,nrf-power
PWM	on-chip	nRF PWM3	nordic,nrf-pwm
Regulator	on-chip	Nordic REGULATORS (voltage regulators control module) on nRF54L1	nordic,nrf54l-regulators
	on-chip	Nordic nRF5X regulator (fixed stage of the core supply)1	nordic,nrf5x-regulator
Retained memory	on-chip	Nordic GPREGRET (General Purpose Register Retention) device2	nordic,nrf-gpregret
RISC-V architecture	on-chip	VPR coprocessor1	nordic,nrf-vpr-coprocessor
RNG	on-chip	Nordic nRF CRACEN CTR_DRBG based (Random Number Generator)1	nordic,nrf-cracen-ctrdrbg
Sensors	on-board	STMicroelectronics LIS2DH 3-axis accelerometer accessed through I2C bus1	st,lis2dh
	on-chip	Nordic nRF family TEMP node1	nordic,nrf-temp
	on-chip	Nordic nRF quadrature decoder (QDEC) node2	nordic,nrf-qdec
Serial controller	on-chip	Nordic nRF family UARTE (UART with EasyDMA)14	nordic,nrf-uarte
SPI	on-chip	Nordic nRF family SPIM (SPI master with EasyDMA)14	nordic,nrf-spim
SRAM	on-chip	Generic on-chip SRAM1	mmio-sram
Timer	on-chip	Nordic GRTC (Global RTC)1	nordic,nrf-grtc
	on-chip	ARMv8-M System Tick1	arm,armv8m-systick
Watchdog	on-chip	Nordic nRF family WDT (Watchdog Timer)11	nordic,nrf-wdt

Connections and IOs

• UART: P1.04 (TX), P1.05 (RX)

• Button: P1.13

• RGB LED: P2.09 (red), P1.10 (green), P2.07 (blue)

• LIS2DH12 (SPI): P2.01 (SCK), P2.02 (MOSI), P2.04 (MISO), P2.05 (CS), P2.00 (INT1), P2.03 (INT2)

Programming and Debugging

The holyiot_25008 board supports the runners and associated west commands listed below.

	flash	debug	rtt	attach	debugserver
jlink	✅	✅ (default)	✅	✅	✅
nrfutil	✅ (default)

The board must be programmed using an external SWD probe connected to SWDIO, SWCLK, VDD, and GND.

Flashing

Here is an example for the Blinky application:

# From the root of the zephyr repository
west build -b holyiot_25008/nrf54l15/cpuapp samples/basic/blinky
west flash
