SAMA5D27 SOM1 Kit1
Overview

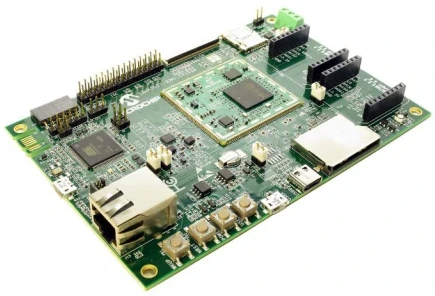

The ATSAMA5D27-SOM1-EK1 is a fast prototyping and evaluation platform for the SAMA5D2 based System in Packages (SiPs) and the SAMA5D27-SOM1 (SAMA5D27 System On Module). The kit comprises a baseboard with a soldered ATSAMA5D27-SOM1 module. The module features an ATSAMA5D27C-D1G-CU SIP embedding a 1-Gbit (128 MB) DDR2 DRAM. The SOM integrates a Power Management IC (PMIC), a QSPI memory, a 10/100 Mbps Ethernet PHY and a serial EEPROM with a MAC address. 128 GPIO pins are provided by the SOM for general use in the system. The board features a wide range of peripherals, as well as a user interface and expansion options, including two mikroBUS™ click interface headers to support MIKROE Click boards™ and one PMOD™ interface. Linux distribution and software package allows you to easily get started with your development.
Hardware
a soldered SAMA5D27 SOM1 module - a SAMA5D27-D1G-CU SIP embedding a 1-Gbit DDR2 SDRAM - a QSPI memory - a 10/100 Mbps Ethernet controller - 128 GPIO pins
Pad for one QSPI Flash (unmounted)
One CryptoAuthentication™ device ATECC608
One USB host (Connector type C)
One USB device (Connector type microAB)
One USB HSIC (2-pin header, not populated)
One Ethernet interface (RJ45 connector)
One CAN interface (ATA6561)
One LCD RGB 24-bit interface (50-pin FPC connector)
One ISC 12-bit interface (2x15 male connector)
One standard SD card interface (With 3.3V/1.8V power switch)
One microSD card interface
One J-Link-OB and J-Link-CDC (Microchip SAM3U micro-controller with embedded J-Link firmware)
One JTAG interface
One RGB (Red, Green, Blue) LED
Four push button switches (Power ON, Reset, Wakeup, User Free)
One tamper connector (10-pin male connector)
One Pmod connector (6-pin female connector)
Two mikroBUS interfaces (2x8-pin female connector)
Board Supply From USB A and/or USB J-Link-OB 5 VDC
SuperCap for Power saving
Supported Features
The sama5d27_som1_ek1 board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
sama5d27_som1_ek1/sama5d27som1 target
On-target memory for this board target: 128 MiB of RAM, N/A of Flash.
Type |
Location |
Description |
Compatible |
|---|---|---|---|
Clock control |
on-chip |
Microchip Power Management Controller (PMC)1 |
|
on-chip |
Generic fixed-rate clock provider2 |
||
Interrupt controller |
on-chip |
Microchip G1 AIC Controller1 |
|
Serial controller |
on-chip |
Microchip UART g1 controller1 |
|
SRAM |
on-chip |
Generic on-chip SRAM1 |
|
Timer |
on-chip |
Microchip G1 PIT1 |
Connections and IOs
The SAMA5D27-SOM1-EK1 User Guide has detailed information about board connections.
References
- SAMA5D2 Series Page:
https://www.microchip.com/en-us/products/microprocessors/32-bit-mpus/sama5/sama5d2-series
- SAMA5D27-SOM1 Product Page:
- SAMA5D27 SOM1 Kit1 Page:
https://www.microchip.com/en-us/development-tool/ATSAMA5D27-SOM1-EK1
