EFM32PG26 Explorer Kit (PG26-EK2711A)

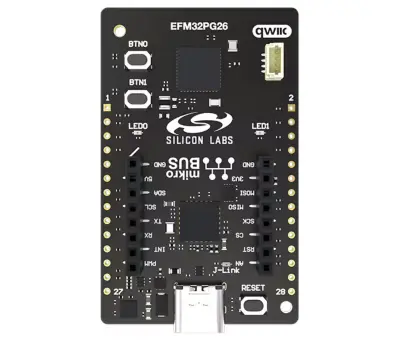

Board Overview

EFM32PG26 Explorer Kit (PG26-EK2711A)

Name:

pg26_ek2711a

Vendor:

Silicon Laboratories

Architecture:

arm

SoC:

efm32pg26b500f3200im68

Browse board sources

Overview

The EFM32PG26 Explorer Kit is a small form factor development and evaluation platform based on the EFM32PG26 MCU. The Explorer Kit is focused on rapid prototyping and concept creation of IoT applications.

Hardware

• EFM32PG26B500F3200IM68 MCU

• CPU core: ARM Cortex®-M33 with FPU

• Flash memory: 3200 kB

• RAM: 512 kB

• Operation frequency: 2.4 GHz

• Crystals for LFXO (32.768 kHz) and HFXO (39 MHz) on the board.

For more information about the EFM32PG26 MCU and Explorer Kit, refer to these documents:

• EFM32PG26 Datasheet

• EFM32PG26 Reference Manual

• PG26-EK2711A User Guide

Supported Features

The pg26_ek2711a board supports the hardware features listed below.

on-chip / on-board

Feature integrated in the SoC / present on the board.

2 / 2

Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.

vnd,foo

Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

pg26_ek2711a/efm32pg26b500f3200im68 target

Type	Location	Description	Compatible
CPU	on-chip	ARM Cortex-M33 CPU1	arm,cortex-m33
ADC	on-chip	Silicon Labs Series 2 IADC1	silabs,iadc
Clock control	on-chip	Silicon Labs Series 2 CMU1	silabs,series-clock
	on-chip	Silicon Labs Series 2 HFRCODPLL1	silabs,series2-hfrcodpll
	on-chip	Generic fixed-rate clock provider3	fixed-clock
	on-chip	Silicon Labs Series 2 LFXO1	silabs,series2-lfxo
	on-chip	Silicon Labs Series 2 LFRCO1	silabs,series2-lfrco
	on-chip	Silicon Labs Series 2 HFRCOEM231	silabs,series2-hfrcoem23
	on-chip	Silicon Labs Series 2 HFXO1	silabs,hfxo
	on-chip	Generic fixed factor clock provider22	fixed-factor-clock
Comparator	on-chip	Silicon Labs Series 2 ACMP2	silabs,acmp
Cryptographic accelerator	on-chip	Silicon Labs Series 2 SE Mailbox1	silabs,gecko-semailbox
DAC	on-chip	Silicon Labs Series 2 VDAC 2	silabs,vdac
Debug	on-chip	ARMv8 instrumentation trace macrocell1	arm,armv8m-itm
DMA	on-chip	Silicon Labs Series 2 LDMA1	silabs,ldma
Flash controller	on-chip	Silicon Labs Series 2 MSC1	silabs,series2-flash-controller
GPIO & Headers	on-chip	Silicon Labs Series 2 GPIO Peripheral1	silabs,gpio
	on-chip	Silicon Labs Series 2 GPIO Port4	silabs,gpio-port
	on-board	GPIO pins exposed on Mikro BUS headers1	mikro-bus
	on-board	STEMMA QT is a 4-pin JST-SH connector for I2C devices1	stemma-qt-connector
I2C	on-chip	Silabs I2C node4	silabs,i2c
Input	on-board	Group of GPIO-bound input keys1	gpio-keys
Interrupt controller	on-chip	ARMv8-M NVIC (Nested Vectored Interrupt Controller)1	arm,v8m-nvic
LED	on-board	Group of GPIO-controlled LEDs1	gpio-leds
	on-board	Group of PWM-controlled LEDs1	pwm-leds
MMU / MPU	on-chip	ARMv8-M MPU (Memory Protection Unit)1	arm,armv8m-mpu
MTD	on-chip	Flash node1	soc-nv-flash
	on-board	Fixed partitions of a flash (or other non-volatile storage) memory1	fixed-partitions
Pin control	on-chip	Silicon Labs Series 2 DBUS Pin Controller1	silabs,dbus-pinctrl
PWM	on-chip	Silicon Labs TIMER PWM2 8	silabs,timer-pwm
	on-chip	Silicon Labs LETIMER PWM1	silabs,letimer-pwm
Regulator	on-chip	Silicon Labs Series 2 DC-DC converter1	silabs,series2-dcdc
Retained memory	on-chip	Silicon Labs Series 2 BURAM1	silabs,buram
RTC	on-chip	Silicon Labs Series 2 SYSRTC1	silabs,sysrtc
Serial controller	on-chip	Silicon Labs Series 2 USART1 2	silabs,usart-uart
SPI	on-chip	Silicon Labs Series 2 EUSART 4	silabs,eusart-spi
SRAM	on-chip	Generic on-chip SRAM1	mmio-sram
Timer	on-chip	ARMv8-M System Tick1	arm,armv8m-systick
	on-chip	Silicon Labs Series 2 BURTC1	silabs,gecko-burtc
	on-chip	Silicon Labs TIMER2 8	silabs,series2-timer
	on-chip	Silicon Labs LETIMER1	silabs,series2-letimer
Watchdog	on-chip	Silicon Labs Series 1-2 WDOG1 1	silabs,gecko-wdog

System Clock

The EFM32PG26 MCU is configured to use the HFRCODPLL oscillator at 78 MHz as the system clock, locked to the 39 MHz crystal oscillator on the board.

Serial Port

The EFM32PG26 MCU has 3 USARTs and 4 EUSARTs. USART0 is connected to the board controller and is used for the console.

Programming and Debugging

The pg26_ek2711a board supports the runners and associated west commands listed below.

	flash	debug	rtt	debugserver	attach
jlink	✅ (default)	✅ (default)	✅	✅	✅
silabs_commander	✅

Flashing

Connect the Explorer Kit to your host computer using the USB port.

Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b pg26_ek2711a samples/hello_world
west flash

Open a serial terminal (minicom, putty, etc.) with the following settings:

• Speed: 115200

• Data: 8 bits

• Parity: None

• Stop bits: 1

Reset the board and you should see the following message in the terminal:

Hello World! pg26_ek2711a
