STM32G431 Core Board

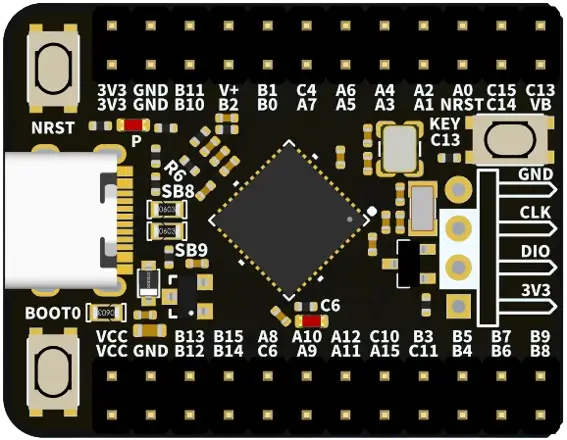

The WeAct STM32G431 Core Board is a low-cost bare-bones STM32G431-based development board. See the STM32G431CB website [2] for more information about the MCU. More information about the board, including schematics, is available from the WeAct GitHub [1].
Modifications USB-C Power Delivery
The board does not support USB-C PD in its standard configuration. To enable USB-C PD, CC1 and CC2 need to be disconnected from their pull-down resistors and be connected to PB6 and PB4 respectively. Dead battery support requires PA9 and PA10 to be routed to CC1 and CC2. VBUS also needs to be connected to the MCU through a voltage divider.
The pull-downs are disconnected by removing the zero-Ohm resistors on SB8 and SB9 next to the USB-C connector. SB3, SB5, SB6, and SB7 then need to be closed to connect the CCx lines to the MCU. The voltage divider is connected to PB2 by closing SB4.
After these modifications have been made, PA9, PA10, PB2, PB4, and PB6 should be considered reserved for USB-C and not available for other applications.
Warning
The internal USB DFU boot loader may not work correctly with machines that respect USB PD signaling unless dead battery support has been enabled. A USB-C to USB-A adapter or programming using the SWD port can be used as a workaround.
Supported Features
The weact_stm32g431_core board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
Type |
Location |
Description |
Compatible |
|---|---|---|---|
CPU |
on-chip |
ARM Cortex-M4F CPU1 |
|
ADC |
on-chip |
STM32 ADC2 |
|
CAN |
on-chip |
STM32 FDCAN CAN FD controller1 |
|
Clock control |
on-chip |
STM32 RCC (Reset and Clock controller)1 |
|
on-chip |
STM32 HSE Clock1 |
||
on-chip |
|||
on-chip |
STM32 LSE Clock1 |
||
on-chip |
STM32G4 main PLL1 |
||
Counter |
on-chip |
STM32 counters6 |
|
DAC |
on-chip |
STM32 family DAC2 |
|
DMA |
on-chip |
STM32 DMA controller (V2)2 |
|
on-chip |
STM32 DMAMUX controller1 |
||
Flash controller |
on-chip |
STM32 Family flash controller1 |
|
GPIO & Headers |
on-chip |
STM32 GPIO Controller7 |
|
I2C |
on-chip |
STM32 I2C V2 controller3 |
|
Input |
on-board |
Group of GPIO-bound input keys1 |
|
Interrupt controller |
on-chip |
ARMv7-M NVIC (Nested Vectored Interrupt Controller)1 |
|
on-chip |
STM32 External Interrupt Controller1 |
||
LED |
on-board |
Group of GPIO-controlled LEDs1 |
|
MTD |
on-chip |
STM32 flash memory1 |
|
on-board |
Fixed partitions of a flash (or other non-volatile storage) memory1 |
||
PHY |
on-chip |
This binding is to be used by all the usb transceivers which are built-in with USB IP1 |
|
Pin control |
on-chip |
STM32 Pin controller1 |
|
PWM |
on-chip |
STM32 PWM8 |
|
Reset controller |
on-chip |
STM32 Reset and Clock Control (RCC) Controller1 |
|
RNG |
on-chip |
STM32 Random Number Generator1 |
|
RTC |
on-chip |
STM32 RTC1 |
|
Sensors |
on-chip |
STM32 family TEMP node for production calibrated sensors with two calibration temperatures1 |
|
on-chip |
STM32 VREF+1 |
||
on-chip |
STM32 VBAT1 |
||
Serial controller |
on-chip |
||
on-chip |
STM32 UART1 |
||
on-chip |
STM32 LPUART1 |
||
SMbus |
on-chip |
STM32 SMBus controller3 |
|
SPI |
on-chip |
STM32 SPI controller with embedded Rx and Tx FIFOs3 |
|
SRAM |
on-chip |
Generic on-chip SRAM description1 |
|
USB Type-C Port Controller |
on-chip |
STM32 USB Type-C / Power Delivery1 |
|
Timer |
on-chip |
ARMv7-M System Tick1 |
|
on-chip |
STM32 low-power timer (LPTIM)1 |
||
on-chip |
STM32 timers10 |
||
USB |
on-chip |
STM32 USB controller1 |
|
USB Type-C |
on-board |
A USB Type-C connector node represents a physical USB Type-C connector1 |
|
Watchdog |
on-chip |
STM32 watchdog1 |
|
on-chip |
STM32 system window watchdog1 |
Pin Mapping
Default Zephyr Peripheral Mapping:
UART_2 TX/RX : PA2/PA3
UCPD1 CCx : PB6/PB4 (not connected by default)
UCPD1 DBCCx : PA9/PA10 (not connected by default)
BUTTON (User) : PC13
BUTTON (BOOT0) : PB8
LED0 : PC6
ADC (VBUS) : PB2
The ADC is disabled by default since the VBUS voltage divider is not connected in the board’s standard configuration.
Hardware Configuration
Solder bridge |
Default |
Description |
|---|---|---|
SB1/SB2 |
Open |
Route PC14/PC15 (LSE) to header |
SB6/SB7 |
Open |
Connect PB4/PB6 (UCPD1_CCx) to USB-C CCx pins |
SB3/SB5 |
Open |
Connect PA9/PA10 (UCPD1_DBCCx) to PB6/PB4 |
SB4 |
Open |
Connect PB2 to VBUS voltage divider |
SB8/SB9 |
Closed |
Connect USB-CCx to pull-down resistors |
SB10 |
Open |
VBUS protection diode bypass |
Clock Sources
The board has two external oscillators. The frequency of the slow clock (LSE) is 32.768 kHz. The frequency of the main clock (HSE) is 8 MHz.
The default configuration sources the system clock from the PLL, which is derived from HSE, and is set at 144 MHz. The 48 MHz clock used by the USB interface is derived from the PLL instead of the internal 48 MHz oscillator.
Programming and Debugging
The MCU is normally programmed using the ROM bootloader or the exposed SWD port.
Please note that some laptops may not detect the ROM bootloader correctly if the CCx pull-downs have been disconnected by opening SB8 and SB9 unless dead battery support has been enabled by closing SB3 and SB5. A USB-C to USB-A adapter can be used as a workaround if this is a problem.
Flashing an Application
Connect a USB-C cable and the board should power ON. Force the board into DFU mode by keeping the BOOT0 switch pressed while pressing and releasing the NRST switch.
The dfu-util runner is supported on this board and so a sample can be built and tested easily.
# From the root of the zephyr repository
west build -b weact_stm32g431_core samples/basic/blinky
west flash
Debugging
The board can be debugged by installing the included 100 mil (0.1 inch) header, and attaching an SWD debugger to the 3V3 (3.3V), GND, SCK, and DIO pins on that header.
