CRD40L50-POC-Q

Overview

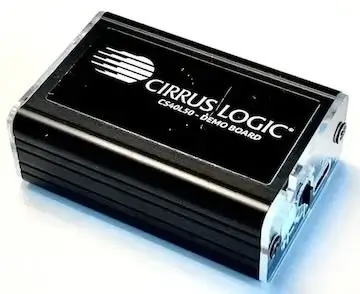

The CRD40L50-POC-Q “Blackstar” demonstration board is a hardware platform used to evaluate Cirrus Logic CS40L50 haptic drivers. The board provides a set of features that enables programming the on-board STM32F401xD microcontroller with custom sample applications, including the CS40L5x sample provided in Zephyr’s samples directory.

Hardware

STM32F401xD microcontroller
AT25 SPI flash controller with 256 KiB flash memory
32.768 kHz crystal oscillator
Two pass/fail LEDs, one green and one red
Three yellow user LEDs
One user push button
Power source selector switch
Actuator output for LRAs
One Pico-Clasp connector for GPIOs
One USB-C port for Cirrus Logic ETHapBridge connectivity
Programming and debugging of on-board STM32F401xD through Serial Wire Debug (SWD)

Supported Features

The crd40l50 board supports the hardware features listed below.

on-chip / on-board: Feature integrated in the SoC / present on the board.
2 / 2: Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo: Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

`crd40l50/stm32f401xd` target

Type	Location	Description	Compatible
CPU	on-chip	ARM Cortex-M4F CPU1	`arm,cortex-m4f`
ADC	on-chip	STM32F4 ADC1	`st,stm32f4-adc`
Clock control	on-chip	STM32F4 RCC (Reset and Clock controller)1	`st,stm32f4-rcc`
	on-chip	STM32 HSE Clock1	`st,stm32-hse-clock`
	on-chip	Generic fixed-rate clock provider2 1	`fixed-clock`
	on-chip	STM32F4 Main PLL1	`st,stm32f4-pll-clock`
	on-chip	STM32F4 PLL I2S1	`st,stm32f4-plli2s-clock`
	on-chip	STM32 Microcontroller Clock Output (MCO)2	`st,stm32-clock-mco`
Counter	on-chip	STM32 counters8	`st,stm32-counter`
DMA	on-chip	STM32 DMA controller (V1)2	`st,stm32-dma-v1`
Flash controller	on-chip	STM32 Family flash controller1	`st,stm32-flash-controller`
GPIO & Headers	on-chip	STM32 GPIO Controller8	`st,stm32-gpio`
Haptics	on-board	I2C-based CS40L5x Haptic Driver1	`cirrus,cs40l5x`
I2C	on-chip	STM32 I2C V1 controller1 2	`st,stm32-i2c-v1`
I2S	on-chip	STM32 I2S controller2	`st,stm32-i2s`
Input	on-board	Group of GPIO-bound input keys1	`gpio-keys`
Interrupt controller	on-chip	ARMv7-M NVIC (Nested Vectored Interrupt Controller)1	`arm,v7m-nvic`
Interrupt controller	on-chip	STM32 External Interrupt Controller1	`st,stm32-exti`
LED	on-board	Group of GPIO-controlled LEDs1	`gpio-leds`
Memory controller	on-chip	STM32 Battery Backed RAM1	`st,stm32-bbram`
MMC	on-chip	STM32 SDMMC Disk Access1	`st,stm32-sdmmc`
MTD	on-chip	STM32F4 flash memory1	`st,stm32f4-nv-flash`
	on-board	Fixed partitions of a flash (or other non-volatile storage) memory1	`fixed-partitions`
	on-board	AT25XV021A SPI flash variants1	`atmel,at25xv021a`
PHY	on-chip	This binding is to be used by all the usb transceivers which are built-in with USB IP1	`usb-nop-xceiv`
Pin control	on-chip	STM32 Pin controller1	`st,stm32-pinctrl`
Power management	on-chip	STM32 power controller1	`st,stm32-pwr`
PWM	on-chip	STM32 PWM8	`st,stm32-pwm`
Reset controller	on-chip	STM32 Reset and Clock Control (RCC) Controller1	`st,stm32-rcc-rctl`
RTC	on-chip	STM32 RTC1	`st,stm32-rtc`
Sensors	on-chip	STM32 quadrature decoder5	`st,stm32-qdec`
	on-chip	STM32 family TEMP node for production calibrated sensors with two calibration temperatures1	`st,stm32-temp-cal`
	on-chip	STM32 VREF+1	`st,stm32-vref`
	on-chip	STM32 VBAT1	`st,stm32-vbat`
Serial controller	on-chip	STM32 USART3	`st,stm32-usart`
Serial controller	on-board	Segger RTT UART1	`segger,rtt-uart`
SMbus	on-chip	STM32 SMBus controller3	`st,stm32-smbus`
SPI	on-chip	STM32 SPI controller1 3	`st,stm32-spi`
Timer	on-chip	ARMv7-M System Tick1	`arm,armv7m-systick`
Timer	on-chip	STM32 timers8	`st,stm32-timers`
USB	on-chip	STM32 OTGFS controller1	`st,stm32-otgfs`
Watchdog	on-chip	STM32 watchdog1	`st,stm32-watchdog`
Watchdog	on-chip	STM32 system window watchdog1	`st,stm32-window-watchdog`

Connections and IOs

Molex 1053131302 connector (J4) for haptic output
JST S2B-PH-SM4-TB(LF)(SN) connector (J5) for external power sources
SWD header (J7) for J-Link debug probes
Molex 203559-0607 connector (J8) for GPIOs
USB-C port (J10) for ETHapBridge connectivity

Programming & Debugging

The crd40l50 board supports the runners and associated west commands listed below.

	flash	debug	debugserver	attach	rtt
jlink	✅	✅	✅	✅	✅
openocd	✅	✅ (default)	✅	✅	✅
stm32cubeprogrammer	✅ (default)

Flash Using J-Link

To flash the board using the J-Link debugger, follow the steps below:

Install J-Link Software
- Download and install the J-Link software tools from Segger.
- Make sure the installed J-Link executables (e.g., JLink, JLinkRTTViewer) are available in your system’s PATH.
Connect the Board
- Connect the J-Link Debug Probe to the board’s SWD header (J7).
- Connect the other end of the J-Link Debug Probe to your host machine via USB.
- Connect the VBAT connector (J5) to an external power source to power up the board.
Build the Application

You can build a sample Zephyr application, such as Blinky or cs40l5x, using the west tool. Run the following commands from your Zephyr workspace:
```
west build -b crd40l50 -p always samples/drivers/haptics/cs40l5x
```
This will build the CS40L5x sample application for the crd40l50 board.
Flash the Device

Once the build completes, flash the firmware using:
```
west flash --runner jlink
```
This uses the jlink runner to flash the application to the board.
Observe the Result

After flashing, interact with the Shell interface via JLinkRTTViewer to demo the on-board CS40L50 haptics driver.
