PSOC™ Control C3M6 Evaluation Kit

Overview

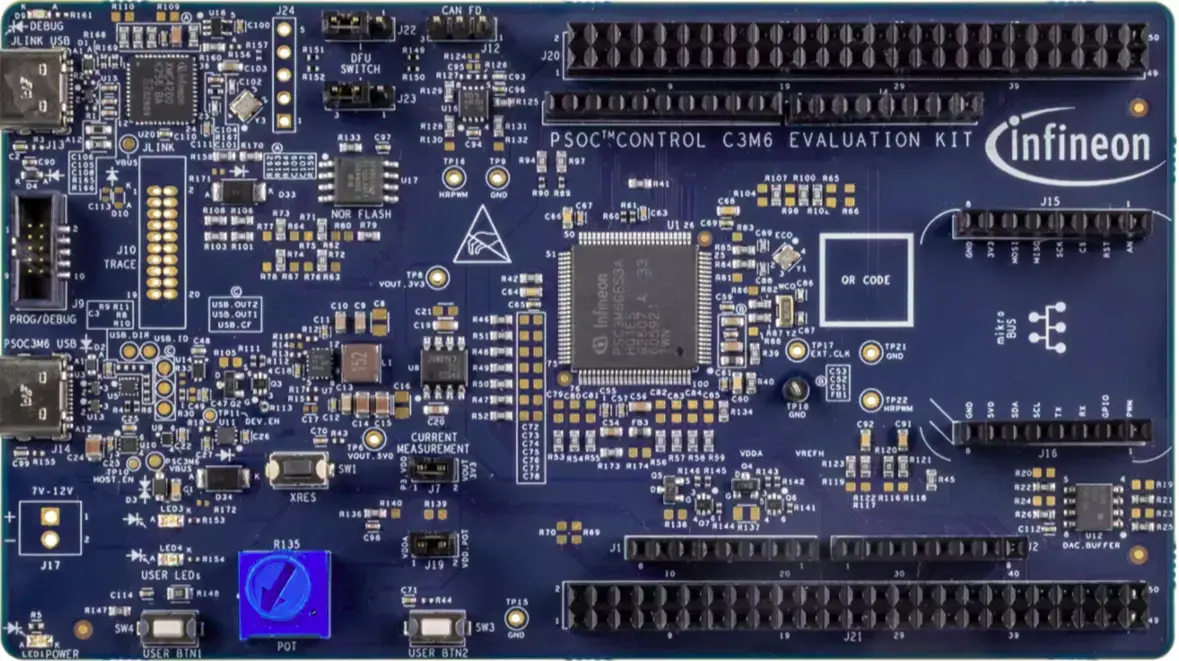

The PSOC™ Control C3M6 Evaluation Kit (KIT_PSC3M6_EVK) is an evaluation board for the PSC3M6 microcontroller. The PSC3M6 is an Arm® Cortex®-M33 based SoC from Infineon’s CAT1B family. The PSC3M6GES3AHQ1 variant on this board features 512 KB flash, 128 KB SRAM, and TrustZone-M security.

Hardware

SoC: PSC3M6GES3AHQ1 (PG-E-LQFP-100)
CPU: Arm® Cortex®-M33 at up to 180 MHz
Flash: 512 KB internal flash
SRAM: 128 KB
Connectivity: CAN FD, SCB (UART/SPI/I2C)
Security: TrustZone-M
Debug: SEGGER J-Link (requires SEGGER J-Link version v9.68 or later)
User I/O: Two user LEDs, two user buttons

Kit Contents

The KIT_PSC3M6_EVAL User Guide lists the following kit contents:

PSOC™ Control C3M6 Evaluation Kit board
USB Type-A to Type-C cable
Jumper wires (10 wires)
Quick start guide (QR code for web information)

Supported Features

The kit_psc3m6_evk board supports the hardware features listed below.

on-chip / on-board: Feature integrated in the SoC / present on the board.
2 / 2: Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.
vnd,foo: Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

`kit_psc3m6_evk/psc3m6ges3ahq1` target

On-target memory for this board target: 128 KiB of RAM, 256 KiB of Flash.

Type	Location	Description	Compatible
CPU	on-chip	ARM Cortex-M33 CPU1	`arm,cortex-m33`
ARM architecture	on-chip	Infineon Serial Communication Blocks (SCB) node4	`infineon,scb`
Clock control	on-chip	Generic fixed-rate clock provider3 2	`infineon,fixed-clock`
	on-chip	Generic fixed-rate clock provider14	`infineon,fixed-factor-clock`
	on-chip	infineon peripheral divider2 16	`infineon,peri-div`
Flash controller	on-chip	Infineon CAT1 flash controller1	`infineon,flash-controller`
GPIO & Headers	on-chip	Infineon GPIO Port8 6	`infineon,gpio`
Input	on-board	Group of GPIO-bound input keys1	`gpio-keys`
Interrupt controller	on-chip	ARMv8-M NVIC (Nested Vectored Interrupt Controller)1	`arm,v8m-nvic`
LED	on-board	Group of GPIO-controlled LEDs1	`gpio-leds`
MTD	on-chip	Flash node1	`soc-nv-flash`
Pin control	on-chip	Infineon CAT1 Pinctrl Container1	`infineon,pinctrl`
Power management	on-chip	Infineon CAT1B power control1	`infineon,cat1b-power`
RTC	on-chip	Infineon CAT1 family RTC device1	`infineon,rtc`
Serial controller	on-chip	Infineon CAT1 UART2	`infineon,uart`
SRAM	on-chip	Generic on-chip SRAM1	`mmio-sram`
Timer	on-chip	ARMv8-M System Tick1	`arm,armv8m-systick`

Connections and IOs

LEDs

Name	GPIO Pin
LED0	P8.4 (active low)
LED1	P8.5 (active low)

Push Buttons

Name	GPIO Pin
SW4	P10.2 (active low)
SW3	P2.0 (active low)

Default Zephyr Peripheral Mapping

Pin	Function	Usage
P6.3	SCB3 UART TX	Console TX
P6.2	SCB3 UART RX	Console RX
P3.3	SCB4 UART TX	User UART TX
P3.2	SCB4 UART RX	User UART RX
P5.3	CANFD0 CH1 TX	CAN FD TX
P5.2	CANFD0 CH1 RX	CAN FD RX
P9.0	SCB0 I2C SCL	I2C clock
P9.2	SCB0 I2C SDA	I2C data
P7.0	SCB2 SPI CLK	SPI clock
P7.1	SCB2 SPI MOSI	SPI MOSI
P7.2	SCB2 SPI MISO	SPI MISO
P8.4	GPIO	LED0
P8.5	GPIO	LED1
P10.2	GPIO	Button SW4
P2.0	GPIO	Button SW3

System Clock

The PSOC™ Control C3M6 and evaluation board provide the following clock sources:

IMO (Internal Main Oscillator): 8 MHz
IHO (Internal High-speed Oscillator): 48 MHz
ECO (External Crystal Oscillator): 16 MHz, connected to P1.0 and P1.1
WCO (Watch Crystal Oscillator): 32.768 kHz, connected to P0.0 and P0.1

Serial Port

The Zephyr console output is assigned to the debug UART on SCB3 (uart3).

Default communication settings are 115200 8N1.

Building

Here is an example for the Hello World application.

# From the root of the zephyr repository
west build -b kit_psc3m6_evk samples/hello_world

Programming and Debugging

The kit_psc3m6_evk board supports the runners and associated west commands listed below.

	flash	debug	debugserver	rtt	attach
openocd	✅ (default)	✅ (default)	✅	✅	✅

Use west flash and west debug with OpenOCD and SEGGER J-Link probe (requires SEGGER J-Link version v9.68 or later).

Infineon OpenOCD Installation

The ModusToolbox™ Programming Tools package includes Infineon OpenOCD. Alternatively, a standalone installation can be done by downloading the Infineon OpenOCD release for your system and extracting the files to a location of your choice.

Flashing

Build and flash the application:

# From the root of the zephyr repository
west build -b kit_psc3m6_evk -p always samples/hello_world
west flash --openocd <path/to/openocd>
