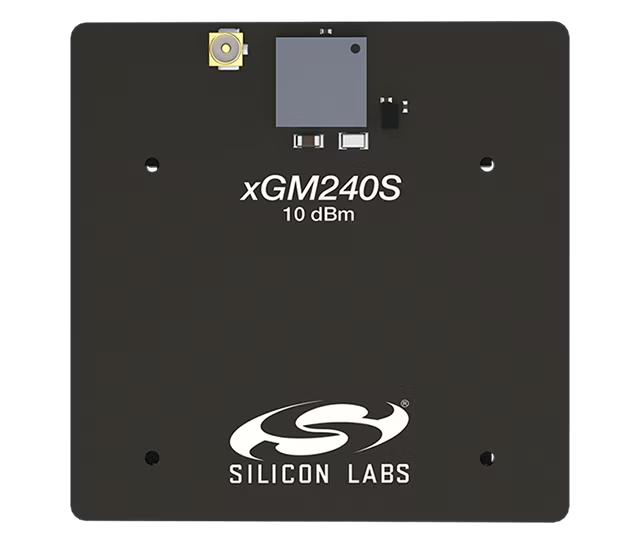

xGM240S +10 dBm SiP Module Radio Board (xGM240-RB4318A)
Overview
The xGM240S +10 dBm SiP Module Radio Board is a plug-in board for the Wireless Starter Kit Mainboard (BRD4001A) and the Wireless Pro Kit Mainboard (BRD4002A) based on the MGM240S Module. It supports the development of 2.4 GHz Wireless IoT devices for protocols including Bluetooth LE, Bluetooth Mesh, Zigbee, Thread, and Matter.
See Radio Boards for more information about the Wireless Mainboard platform.
Hardware
MGM240SD22VNA SiP Module
CPU core: ARM Cortex®-M33 with FPU
Flash memory: 1536 kB
RAM: 256 kB
Transmit power: up to +10 dBm
Operation frequency: 2.4 GHz
Crystal for LFXO (32.768 kHz) on the board and HFXO (39 MHz) in the module
8 Mbit SPI NOR Flash
PCB slot antenna (2.4 GHz)
For more information about the MGM240S module and radio board, refer to these documents:
Supported Features
The xgm240_rb4318a board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
xgm240_rb4318a/mgm240sd22vna target
On-target memory for this board target: 256 KiB of RAM, 1536 KiB of Flash.
Type |
Location |
Description |
Compatible |
|---|---|---|---|
CPU |
on-chip |
ARM Cortex-M33 CPU1 |
|
ADC |
on-chip |
Silicon Labs Series 2 IADC1 |
|
Bluetooth |
on-chip |
Silicon Labs Series 2 Bluetooth HCI1 |
|
Clock control |
on-chip |
Silicon Labs Series 2 CMU1 |
|
on-chip |
Silicon Labs Series 2 HFRCODPLL1 |
||
on-chip |
Generic fixed-rate clock provider3 |
||
on-chip |
Silicon Labs Series 2 LFXO1 |
||
on-chip |
Silicon Labs Series 2 LFRCO1 |
||
on-chip |
Silicon Labs Series 2 HFRCOEM231 |
||
on-chip |
Silicon Labs Series 2 HFXO1 |
||
on-chip |
Generic fixed factor clock provider21 |
||
Comparator |
on-chip |
Silicon Labs Series 2 ACMP2 |
|
Counter |
on-chip |
||
on-chip |
Silicon Labs Series 2 BURTC1 |
||
on-chip |
Silicon Labs PROTIMER counter1 |
||
CRC |
on-chip |
Silabs General Purpose CRC1 |
|
Cryptographic accelerator |
on-chip |
Silicon Labs Series 2 SE Mailbox1 |
|
DAC |
on-chip |
Silicon Labs Series 2 VDAC 2 |
|
Debug |
on-chip |
Silicon Labs Packet Trace Interface1 |
|
on-chip |
ARMv8 instrumentation trace macrocell1 |
||
Display |
on-board |
Sharp LS0XX memory display controller1 |
|
DMA |
on-chip |
Silicon Labs Series 2 LDMA1 |
|
Flash controller |
on-chip |
Silicon Labs Series 2 MSC1 |
|
GPIO & Headers |
on-chip |
Silicon Labs Series 2 GPIO Peripheral1 |
|
on-chip |
Silicon Labs Series 2 GPIO Port4 |
||
on-board |
Silicon Labs Kit Expansion Header1 |
||
I2C |
on-chip |
||
IEEE 802.15.4 |
on-chip |
Silicon Labs EFR32 IEEE 802.15.4 radio1 |
|
Input |
on-board |
Group of GPIO-bound input keys1 |
|
Interrupt controller |
on-chip |
ARMv8-M NVIC (Nested Vectored Interrupt Controller)1 |
|
LED |
on-board |
Group of GPIO-controlled LEDs1 |
|
on-board |
Group of PWM-controlled LEDs1 |
||
MMU / MPU |
on-chip |
ARMv8-M MPU (Memory Protection Unit)1 |
|
MTD |
on-chip |
Flash node1 |
|
on-board |
Properties supporting Zephyr spi-nor flash driver (over the Zephyr SPI API) control of serial flash memories using the standard M25P80-based command set1 |
||
Networking |
on-chip |
Silicon Labs Series 2 Radio Interface1 |
|
Pin control |
on-chip |
Silicon Labs Series 2 DBUS Pin Controller1 |
|
PWM |
on-chip |
||
on-chip |
Silicon Labs LETIMER PWM1 |
||
Regulator |
on-chip |
Silicon Labs Series 2 DC-DC converter1 |
|
on-board |
Fixed voltage regulators1 |
||
Retained memory |
on-chip |
Silicon Labs Series 2 BURAM1 |
|
RTC |
on-chip |
Silicon Labs Series 2 SYSRTC1 |
|
Sensors |
on-board |
Silicon Labs Si7006/13/20/21 RHT Sensor1 |
|
Serial controller |
on-chip |
Silicon Labs Series 2 USART1 |
|
SPI |
on-chip |
||
SRAM |
on-chip |
Generic on-chip SRAM1 |
|
Timer |
on-chip |
ARMv8-M System Tick1 |
|
on-chip |
|||
on-chip |
Silicon Labs LETIMER1 |
||
Watchdog |
on-chip |
System Clock
The MGM240S Module is configured to use the HFRCODPLL oscillator at 78 MHz as the system clock, locked to the 39 MHz crystal oscillator in the module.
Serial Port
The MGM240S Module has one USART and two EUSARTs. USART0 is connected to the board controller and is used for the console.
Programming and Debugging
The xgm240_rb4318a board supports the runners and associated west commands listed below.
| flash | debug | rtt | debugserver | attach | reset | |
|---|---|---|---|---|---|---|
| jlink | ✅ (default) | ✅ (default) | ✅ | ✅ | ✅ | ✅ |
| openocd | ✅ | ✅ | ✅ | ✅ | ✅ | |
| silabs_commander | ✅ |
Flashing
Connect the board to your host computer using the USB port.
Here is an example for the Hello World application.
# From the root of the zephyr repository
west build -b xgm240_rb4318a samples/hello_world
west flash
Open a serial terminal (minicom, putty, etc.) with the following settings:
Speed: 115200
Data: 8 bits
Parity: None
Stop bits: 1
Reset the board and you should see the following message in the terminal:
Hello World! xgm240_rb4318a
Bluetooth
To use Bluetooth functionality, run the command below to retrieve necessary binary blobs from the Silicon Labs HAL repository.
west blobs fetch hal_silabs
Then build the Zephyr kernel and a Bluetooth sample with the following command. The Observer sample application is used in this example.
# From the root of the zephyr repository
west build -b xgm240_rb4318a samples/bluetooth/observer
