EVK-BMD-34/48: BMD-380-EVAL

Board Overview

EVK-BMD-34/48: BMD-380-EVAL

Name:

ubx_bmd380eval

Vendor:

u-blox

Architecture:

arm

SoC:

nrf52840

Browse board sources

u-blox EVK-BMD-34/48: BMD-380-EVAL

Overview

The BMD-380-EVAL hardware provides support for the u-blox BMD-380 Bluetooth 5.0 module, based on The Nordic Semiconductor nRF52840 ARM Cortex-M4F CPU and the following devices:

• ADC

• CLOCK

• FLASH

• GPIO

• I2C

• MPU

• NVIC

• PWM

• RADIO (Bluetooth Low Energy and 802.15.4)

• RTC

• Segger RTT (RTT Console)

• SPI

• UART

• USB

• WDT

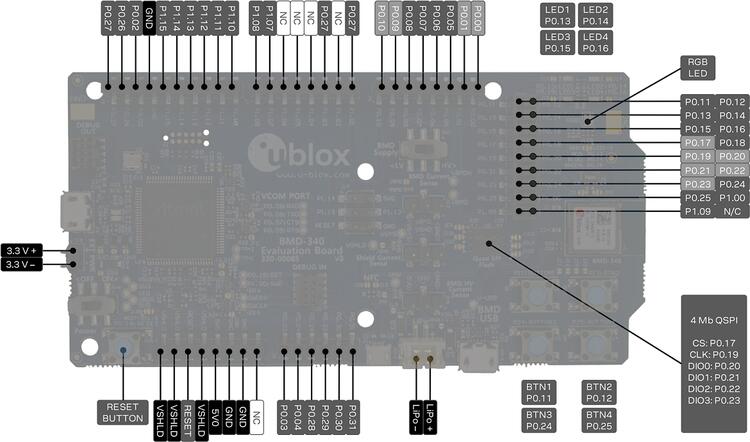

BMD-340-EVAL (Credit: u-blox AG)

Note

The BMD-380-EVAL shares the same pin headers and assignments as the BMD-340-EVAL with four exceptions. The BMD-340-EVAL is shown here. See the pin tables below for the exceptions.

More information about the BMD-340-EVAL and the BMD-340 module can be found at the u-blox website [1]. All of the Nordic Semiconductor examples for the nRF52840 DK (nrf52840dk_nrf52840) may be used without modification.

Hardware

The BMD-380 on the BMD-380-EVAL contains an internal high-frequency oscillator at 32MHz. There is also a low frequency (slow) oscillator of 32.768kHz. The BMD-380 itself does not include the slow crystal; however, the BMD-380-eval does.

Note

When targeting a custom design without a slow crystal, be sure to modify code to utilize the internal RC oscillator for the slow clock.

Supported Features

The ubx_bmd380eval board supports the hardware features listed below.

on-chip / on-board

Feature integrated in the SoC / present on the board.

2 / 2

Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files.

vnd,foo

Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.

ubx_bmd380eval/nrf52840 target

Type	Location	Description	Compatible
CPU	on-chip	ARM Cortex-M4F CPU1	arm,cortex-m4f
ADC	on-chip	Nordic Semiconductor nRF family SAADC node1	nordic,nrf-saadc
ARM architecture	on-chip	Nordic UICR (User Information Configuration Registers)1	nordic,nrf-uicr
	on-chip	Nordic EGU (Event Generator Unit)6	nordic,nrf-egu
	on-chip	Nordic nRF family ACL (Access Control List)1	nordic,nrf-acl
	on-chip	Nordic nRF family MWU (Memory Watch Unit)1	nordic,nrf-mwu
Audio	on-chip	Nordic PDM (Pulse Density Modulation interface)1	nordic,nrf-pdm
Clock control	on-chip	Nordic nRF clock control node1	nordic,nrf-clock
	on-chip	Nordic nRF high-frequency crystal oscillator (nRF52 series)1	nordic,nrf52-hfxo
Comparator	on-chip	Nordic nRF COMP (analog COMParator)1	nordic,nrf-comp
Counter	on-chip	Nordic nRF timer node5	nordic,nrf-timer
Cryptographic accelerator	on-chip	Nordic ECB (AES electronic codebook mode encryption)1	nordic,nrf-ecb
	on-chip	Nordic nRF family CCM (AES CCM mode encryption)1	nordic,nrf-ccm
	on-chip	ARM TrustZone CryptoCell 3101	arm,cryptocell-310
Debug	on-chip	ARMv7 instrumentation trace macrocell1	arm,armv7m-itm
Flash controller	on-chip	Nordic NVMC (Non-Volatile Memory Controller)1	nordic,nrf52-flash-controller
	on-chip	Properties defining the interface for the Nordic QSPI peripheral1	nordic,nrf-qspi
GPIO & Headers	on-chip	NRF5 GPIOTE1	nordic,nrf-gpiote
	on-chip	NRF5 GPIO2	nordic,nrf-gpio
I2C	on-chip	Nordic nRF family TWIM (TWI master with EasyDMA)1	nordic,nrf-twim
	on-chip	Nordic nRF family TWI (TWI master)1	nordic,nrf-twi
I2S	on-chip	Nordic I2S (Inter-IC sound interface)1	nordic,nrf-i2s
IEEE 802.15.4	on-chip	Nordic nRF IEEE 802.15.4 node1	nordic,nrf-ieee802154
Input	on-board	Group of GPIO-bound input keys1	gpio-keys
Interrupt controller	on-chip	ARMv7-M NVIC (Nested Vectored Interrupt Controller)1	arm,v7m-nvic
LED	on-board	Group of GPIO-controlled LEDs1	gpio-leds
	on-board	Group of PWM-controlled LEDs1	pwm-leds
Miscellaneous	on-chip	Nordic FICR (Factory Information Configuration Registers)1	nordic,nrf-ficr
	on-chip	Nordic nRF family PPI (Programmable Peripheral Interconnect)1	nordic,nrf-ppi
MTD	on-chip	Flash node1	soc-nv-flash
	on-chip	Fixed partitions of a flash (or other non-volatile storage) memory1	fixed-partitions
	on-board	QSPI NOR flash supporting the JEDEC CFI interface1	nordic,qspi-nor
Networking	on-chip	Nordic nRF family RADIO peripheral1	nordic,nrf-radio
	on-chip	Nordic nRF family NFCT (Near Field Communication Tag)1	nordic,nrf-nfct
Pin control	on-chip	Nordic nRF family Pin Controller1	nordic,nrf-pinctrl
Power management	on-chip	Nordic nRF power control node1	nordic,nrf-power
PWM	on-chip	nRF PWM13	nordic,nrf-pwm
	on-chip	nRFx S/W PWM1	nordic,nrf-sw-pwm
Regulator	on-chip	Nordic nRF5X regulator (fixed stage of the core supply)1	nordic,nrf5x-regulator
	on-chip	Nordic nRF52X regulator (high voltage stage of the main supply)1	nordic,nrf52x-regulator-hv
Retained memory	on-chip	Nordic GPREGRET (General Purpose Register Retention) device2	nordic,nrf-gpregret
RNG	on-chip	Nordic nRF family RNG (Random Number Generator)1	nordic,nrf-rng
RTC	on-chip	Nordic nRF RTC (Real-Time Counter)3	nordic,nrf-rtc
Sensors	on-chip	Nordic nRF family TEMP node1	nordic,nrf-temp
	on-chip	Nordic nRF quadrature decoder (QDEC) node1	nordic,nrf-qdec
Serial controller	on-chip	Nordic nRF family UART1	nordic,nrf-uart
	on-chip	Nordic nRF family UARTE (UART with EasyDMA)1	nordic,nrf-uarte
SPI	on-chip	Nordic nRF family SPI (SPI master)12	nordic,nrf-spi
	on-chip	Nordic nRF family SPIM (SPI master with EasyDMA)1	nordic,nrf-spim
SRAM	on-chip	Generic on-chip SRAM1	mmio-sram
Timer	on-chip	ARMv7-M System Tick1	arm,armv7m-systick
USB	on-chip	Nordic nRF52 USB device controller1	nordic,nrf-usbd
Watchdog	on-chip	Nordic nRF family WDT (Watchdog Timer)1	nordic,nrf-wdt

Connections and IOs

LED

• LED1 (red) = P0.13

• LED2 (red) = P0.14

• LED3 (green) = P0.15

• LED4 (green) = P0.16

• D5 (red) = OB LED 1

• D6 (green) = OB LED 2

Push buttons

• BUTTON1 = SW1 = P0.11

• BUTTON2 = SW2 = P0.12

• BUTTON3 = SW3 = P0.24

• BUTTON4 = SW4 = P0.25

• BOOT = SW5 = boot/reset

External Connectors

Note

The BMD-380-EVAL shares the same pin headers and assignments as the BMD-340-EVAL with four exceptions. The BMD-340-EVAL is shown here. See the pin tables below for the exceptions.

Note

The pin numbers noted below are referenced to the pin 1 markings on the BMD-380-EVAL for each header

J-Link Prog Connector (J2)

PIN #	Signal Name
1	VDD
2	IMCU_TMSS
3	GND
4	IMCU_TCKS
5	V5V
6	IMCU_TDOS
7	Cut off
8	IMCU_TDIS
9	Cut off
10	IMCU_RESET

Debug OUT (J3)

PIN #	Signal Name
1	EXT_VTG
2	EXT_SWDIO
3	GND
4	EXT_SWDCLK
5	GND
6	EXT_SWO
7	N/C
8	N/C
9	EXT_GND_DETECT
10	EXT_RESET

Debug IN (J26)

PIN #	Signal Name
1	BMD-340_VCC
2	BMD-340_SWDIO
3	GND
4	BMD-340_SWDCLK
5	GND
6	BMD-340_SWO
7	N/C
8	N/C
9	GND
10	BMD-340_RESET

Auxiliary (J9)

PIN #	Signal Name
1	P0.10 / NFC2
2	P0.09 / NFC1
3	P0.08
4	P0.07
5	P0.06
6	P0.05 / AIN3
7	P0.01 / XL2
8	P0.00 / XL1

Auxiliary (J10)

PIN #	Signal Name
1	P0.11 / TRACED[2]
2	P0.12 / TRACED[1]
3	P0.13
4	P0.14
5	P0.15
6	P0.16
7	P0.17 / QSPI_CS
8	P0.18 / RESET
9	P0.19 / QSPI_CLK
10	P0.20 / QSPI_D0
11	P0.21 / QSPI_D1
12	P0.22 / QSPI_D2
13	P0.23 / QSPI_D3
14	P0.24
15	P0.25
16	P1.00 / TRACED[0]
17	P1.09 / TRACED[3]
18	No connection

Power (J5)

PIN #	Signal Name	BMD-380 Functions
1	VSHLD	N/A
2	VSHLD	N/A
3	RESET	P0.18 / RESET
4	VSHLD	N/A
5	V5V	N/A
6	GND	N/A
7	GND	N/A
8	N/C	N/A

Analog in (J8)

PIN #	Signal Name	BMD-380 Functions
1	A0	P0.03 / AIN1
2	A1	P0.04 / AIN2
3	A2	P0.28 / AIN4
4	A3	P0.29 / AIN5
5	A4	P0.30 / AIN6
6	A5	P0.31 / AIN7

Digital I/O (J7)

PIN #	Signal Name	BMD-380 Functions
1	D7	P1.08
2		No connection
3	D5	P1.06
4	D4	No connection
5		No connection
6		No connection
7	D1 (TX)	P1.02
8		No connection

Digital I/O (J6)

PIN #	Signal Name	BMD-380 Functions
1	SCL	P0.27
2	SDA	P0.26
3	AREF	P0.02 / AIN0
4	GND	N/A
5	D13 (SCK)	P1.15
6	D12 (MISO)	P1.14
7	D11 (MOSI)	P1.13
8	D10 (SS)	P1.12
9	D9	P1.11
10	D8	P1.10

J11

PIN #	Signal Name	BMD-380 Functions
1	D12 (MISO)	P0.14
2	V5V	N/A
3	D13 (SCK)	P0.15
4	D11 (MOSI)	P0.13
5	RESET	N/A
6	N/A	N/A

Programming and Debugging

Applications for the BMD-380-EVAL board configurations can be built and flashed in the usual way (see Building an Application and Run an Application for more details); however, the standard debugging targets are not currently available.

Flashing

Follow the instructions in the Nordic nRF5x Segger J-Link page to install and configure all the necessary software. Further information can be found in Flashing. Then build and flash applications as usual (see Building an Application and Run an Application for more details).

Here is an example for the Hello World application.

First, run your favorite terminal program to listen for output.

$ minicom -D <tty_device> -b 115200

Replace <tty_device> with the port where the BMD-380-EVAL can be found. For example, under Linux, /dev/ttyACM0.

Then build and flash the application in the usual way.

# From the root of the zephyr repository
west build -b ubx_bmd380eval/nrf52840 samples/hello_world
west flash

Debugging

Refer to the Nordic nRF5x Segger J-Link page to learn about debugging u-blox boards with a Segger J-LINK-OB IC.

Testing the LEDs and buttons in the BMD-380-EVAL

There are 2 samples that allow you to test that the buttons (switches) and LEDs on the board are working properly with Zephyr:

samples/basic/blinky
samples/basic/button

You can build and flash the examples to make sure Zephyr is running correctly on your board. The button and LED definitions can be found in boards/u-blox/ubx_bmd340eval/ubx_bmd340eval_nrf52840.dts.

Using UART1

The following approach can be used when an application needs to use more than one UART for connecting peripheral devices:

1. Add device tree overlay file to the main directory of your application:

   &pinctrl {
      uart1_default: uart1_default {
         group1 {
            psels = <NRF_PSEL(UART_TX, 0, 14)>,
                    <NRF_PSEL(UART_RX, 0, 16)>;
         };
      };
      /* required if CONFIG_PM_DEVICE=y */
      uart1_sleep: uart1_sleep {
         group1 {
            psels = <NRF_PSEL(UART_TX, 0, 14)>,
                    <NRF_PSEL(UART_RX, 0, 16)>;
            low-power-enable;
         };
      };
   };

   &uart1 {
     compatible = "nordic,nrf-uarte";
     current-speed = <115200>;
     status = "okay";
     pinctrl-0 = <&uart1_default>;
     pinctrl-1 = <&uart1_sleep>;
     pinctrl-names = "default", "sleep";
   };


   In the overlay file above, pin P0.16 is used for RX and P0.14 is used for TX

2. Use the UART1 as DEVICE_DT_GET(DT_NODELABEL(uart1))

Overlay file naming

The file has to be named <board>.overlay and placed in the app main directory to be picked up automatically by the device tree compiler.

Selecting the pins

Pins can be configured in the board pinctrl file. To see the available mappings, open the data sheet for the BMD-380 at the u-blox website [1], Section 2 ‘Pin definition’. In the table 3 select the pins marked ‘GPIO’. Note that pins marked as ‘Standard drive, low frequency I/O only (<10 kH’ can only be used in under-10KHz applications. They are not suitable for 115200 speed of UART.

References

[1] (1,2)

https://www.u-blox.com/docs/UBX-19039467
