Sparkfun RV8803 Shield

Overview

The SparkFun RV8803 Real Time Clock Shield features a Micro Crystal RV-8803-C7 Real-Time-Clock and two Qwiic connectors. It has a 3 Volt back-up coin-cell battery.

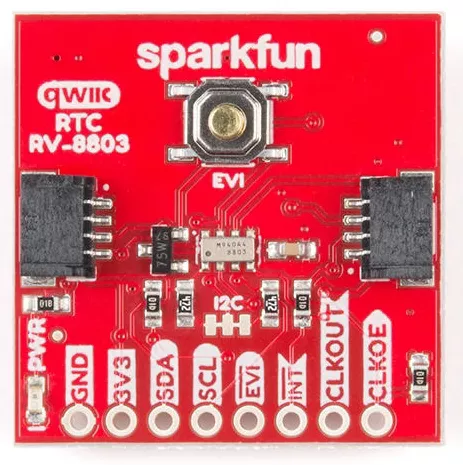

Sparkfun RV8803 Shield

Sparkfun RV8803 Shield (Credit: Sparkfun)

Requirements

This shield can be used with boards which provide an I2C connector, for example STEMMA QT or Qwiic connectors. The target board must define a zephyr_i2c node label. See Shields for more details.

Pin Assignments

Shield Pin

Function

SDA

RV8803 I2C SDA. Also connected to the Qwiic connector.

SCL

RV8803 I2C SCL. Also connected to the Qwiic connector.

EVI

RV8803 event input. Active low by default, with external pull-up and on-shield button.

INT

RV8803 interrupt output. Active low (open drain), with external pull-up.

CLKOUT

RV8803 clock output. 32768, 1024 or 1 Hz (controlled by devicetree setting). Enabled by CLKOE.

CLKOE

RV8803 control of CLKOUT, which is enabled when this pin is high. External pull-down on shield.

To use the interrupt output from the RV-8803, you need to connect a wire from the shield INT output to a suitable GPIO on your microcontroller board, and to modify the devicetree settings. See microcrystal,rv8803 for options.

Programming

Set --shield sparkfun_rv8803 when you invoke west build. For example when running the Real-Time Clock (RTC) sample:

# From the root of the zephyr repository
west build -b adafruit_qt_py_rp2040 --shield sparkfun_rv8803 samples/drivers/rtc
