ST87MXX shield
Overview

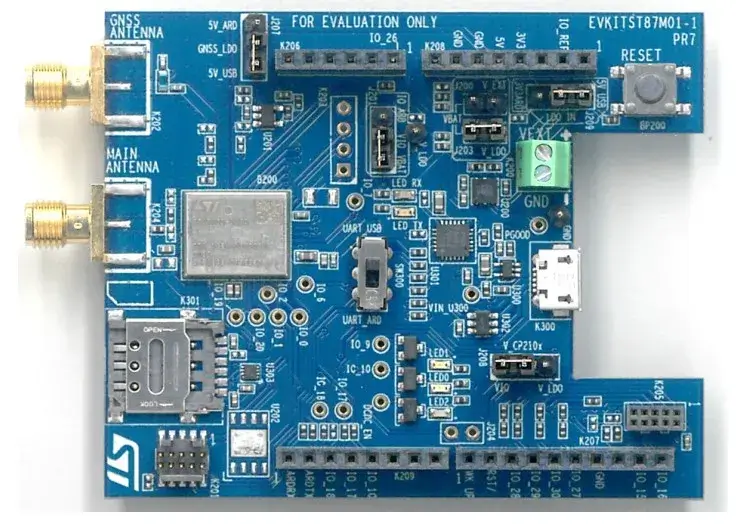

The ST87M01 is a high-performance, fully programmable, ultra-compact, and low-power LTE Cat NB2 NB-IoT industrial module series, offering comprehensive worldwide band coverage and advanced security features.
Pins Assignment of the ST87MXX Shield
K207 Connector Pin |
Function |
|---|---|
1 |
MODEM_WAKE-UP |
2 |
MODEM_RESET |
7 |
GND |
K208 Connector Pin |
Function |
|---|---|
4 |
3V3 |
5 |
5V0 |
6 |
GND |
7 |
GND |
K209 Connector Pin |
Function |
|---|---|
1 |
UART_RXD |
2 |
UART_TXD |
Requirements
This shield can only be used with a board that provides a configuration for Arduino connectors and defines node aliases for UART and GPIO interfaces.
