MikroElektronika Air Quality 3 Click

Overview

Air Quality 3 Click is the air quality measurement device, which is able to output both equivalent CO2 levels and total volatile organic compounds (TVOC) concentration in the indoor environment.

The Click board™ is equipped with the CCS811 state-of-the-art air quality sensor IC from ScioSense, which has an integrated MCU and a specially designed metal oxide (MOX) gas sensor microplate, allowing for high reliability, fast cycle times and a significant reduction in the power consumption, compared to other MOX sensor-based devices. The Click board™ is also equipped with a temperature compensating element, which allows for increased measurement accuracy.

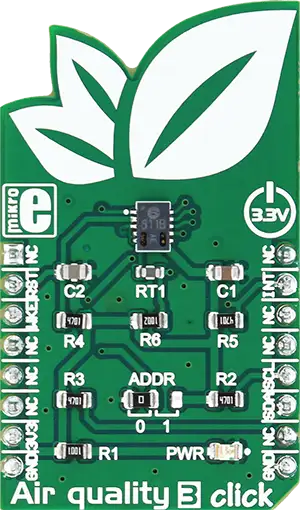

Air Quality 3 Click

Air Quality 3 Click

Requirements

This shield can only be used with a board that provides a mikroBUS™ socket and defines a mikrobus_i2c node label for the mikroBUS™ I2C interface. See Shields for more details.

Programming

Set -DSHIELD=mikroe_air_quality_3_click when you invoke west build. For example:

# From the root of the zephyr repository
west build -b mikroe_clicker_ra4m1 --shield mikroe_air_quality_3_click samples/sensor/ccs811
