RTK0EG0019B01002BJ Capacitive Touch Application Shield

Overview

The RTK0EG0019B01002BJ Capacitive Touch Application Shield is designed to work with the Renesas Capacitive Touch Evaluation Kit.

The shield features a variety of touch sensors, including buttons, sliders, and wheels, making it an ideal platform for developing touch-based applications.

../../../../_images/rtk0eg0019b01002bj.webp

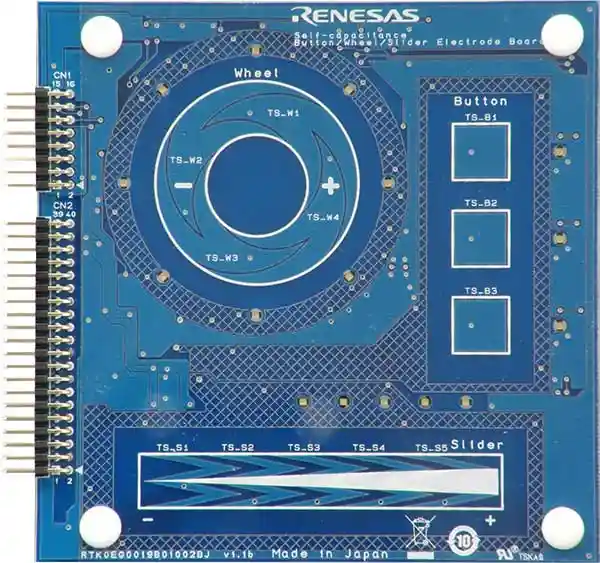

RTK0EG0019B01002BJ Capacitive Touch Application Shield (Credit: Renesas Electronics Corporation)

Pins Assignment of the RTK0EG0019B01002BJ Shield

Application Header 1 (CN1)

CN1 Pin

Function

CN1 Pin

Function

15

VCC

16

GND

13

LED_ROW0

14

LED_ROW1

11

LED_ROW2

12

LED_ROW3

9

N/C

10

N/C

7

LED_COL3

8

N/C

5

LED_COL1

6

LED_COL2

3

N/C

4

LED_COL0

1

N/C

2

N/C

Application Header 2 (CN2)

CN2 Pin

Touch Electrode

CN2 Pin

Touch Electrode

39

N/C

40

TSCAP

37

N/C

38

N/C

35

N/C

36

TS-W1

33

N/C

34

TS-W2

31

TS-W3

32

N/C

29

N/C

30

N/C

27

N/C

28

TS-W4

25

N/C

26

N/C

23

N/C

24

N/C

21

N/C

22

SHIELD-W1

19

N/C

20

N/C

17

N/C

18

N/C

15

N/C

16

N/C

13

N/C

14

N/C

11

N/C

12

N/C

9

TS-B1

10

TS-B2

7

SHIELD-B1

8

TS-B3

5

TS-S1

6

SHIELD-S1

3

TS-S3

4

TS-S2

1

TS-S5

2

TS-S4

Programming

Set --shield rtk0eg0019b01002bj when you invoke west build. For example:

# From the root of the zephyr repository
west build -b rssk_ra2l1 --shield rtk0eg0019b01002bj samples/shields/rtk0eg0019b01002bj
