MikroElektronika Flash 5 Click
Overview
Flash 5 Click is a perfect solution for the mass storage option in various embedded applications.
It features the W25N01GVZEIG/IT (1G-bit) Serial SLC NAND Flash Memory from Winbond which provides a storage solution for systems with limited space, pins and power. The W25N SpiFlash family incorporates the popular SPI interface and the traditional large NAND non-volatile memory space. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data.

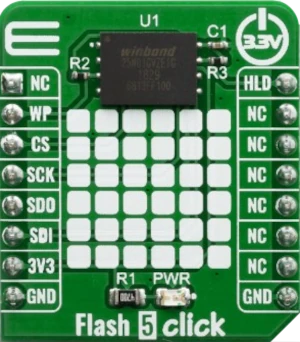

Flash 5 Click
Requirements
This shield can only be used with a board that provides a mikroBUS™ socket and defines a
mikrobus_spi node label for the mikroBUS™ SPI interface. See Shields for more
details.
Programming
Set --shield mikroe_flash_5_click when you invoke west build. For example:
# From the root of the zephyr repository
west build -b frdm_mcxn947/mcxn947/cpu0 --shield mikroe_flash_5_click samples/drivers/flash_shell
