MikroElektronika LSM6DSL Click

Overview

LSM6DSL Click measures linear and angular velocity with six degrees of freedom. It carries the LSM6DSL high-performance 3-axis digital accelerometer and 3-axis digital gyroscope. The click is designed to run on a 3.3V power supply. LSM6DSL Click communicates with the target micro-controller over SPI or I2C interface, with additional functionality provided by the INT pin on the mikroBUS™ line.

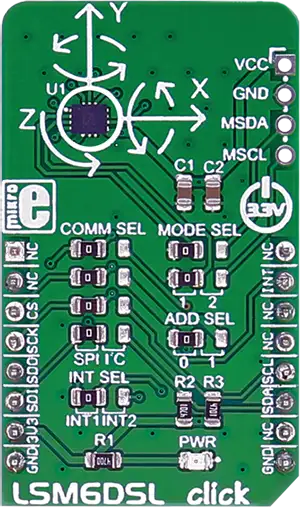

LSM6DSL Click

LSM6DSL Click

Requirements

This shield can only be used with a board that provides a mikroBUS™ socket and defines a mikrobus_spi node label for the mikroBUS™ SPI interface. See Shields for more details.

Programming

Set -DSHIELD=mikroe_lsm6dsl_click when you invoke west build. For example:

# From the root of the zephyr repository
west build -b mikroe_clicker_ra4m1 --shield mikroe_lsm6dsl_click samples/sensor/accel_trig
