MikroElektronika Proximity 9 Click

Overview

Proximity 9 Click is a very accurate and reliable proximity sensing (PS) and ambient light sensing (ALS) device, equipped with the VCNL4040, an integrated PS and ALS sensor which features the Filtron™ technology

The 940nm IRED emitter, along with the low noise analog front end, and the PS/ALS photo-sensitive elements, is integrated on the VCNL4040 IC, ensuring very accurate and reliable measurements. The proprietary Filtron™ technology provides response near to the human eye spectral response, providing the background light cancellation. The programmable interrupt engine allows for the development of an optimized firmware, reducing the MCU workload and power consumption.

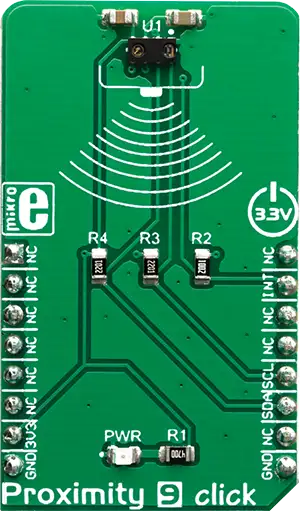

Proximity 9 Click

Proximity 9 Click

Requirements

This shield can only be used with a board that provides a mikroBUS™ socket and defines a mikrobus_i2c node label for the mikroBUS™ I2C interface. See Shields for more details.

Programming

Set -DSHIELD=mikroe_proximity_9_click when you invoke west build. For example:

# From the root of the zephyr repository
west build -b mikroe_clicker_ra4m1 --shield mikroe_proximity_9_click samples/sensor/proximity_polling

See vishay,vcnl4040 for documentation on the additional binding properties available for the VCNL4040 sensor.
