Nucleo L433RC
Overview
The Nucleo L433RC board features an ARM Cortex-M4 based STM32L433RC MCU with a wide range of connectivity support and configurations. Here are some highlights of the Nucleo L433RC board:
STM32 microcontroller in LQFP64 package
Arduino Uno V3 connectivity
On-board ST-LINK/V2-1 debugger/programmer with SWD connector
Flexible board power supply:
USB VBUS or external source(3.3V, 5V, 7 - 12V)
Power management access point
Three LEDs: USB communication (LD1), power LED (LD3), user LED (LD4)
One push-button: RESET
More information about the board can be found at the Nucleo L433RC-P website.
Hardware
The STM32L433RC SoC provides the following hardware IPs:
Ultra-low-power with FlexPowerControl (down to 28 nA Standby mode and 84 µA/MHz run mode)
Core: ARM® 32-bit Cortex® -M4 CPU with FPU, frequency up to 80 MHz, 100DMIPS/1.25DMIPS/MHz (Dhrystone 2.1)
Clock Sources:
32 kHz crystal oscillator for RTC (LSE)
Internal 16 MHz factory-trimmed RC ( ±1%)
Internal low-power 32 kHz RC ( ±5%)
Internal multispeed 100 kHz to 48 MHz oscillator, auto-trimmed by LSE (better than ±0.25 % accuracy)
2 PLLs for system clock, USB, audio, ADC
RTC with HW calendar, alarms and calibration
Up to 21 capacitive sensing channels: support touchkey, linear and rotary touch sensors
11x timers:
1x 16-bit advanced motor-control
1x 32-bit and 2x 16-bit general purpose
2x 16-bit basic
2x low-power 16-bit timers (available in Stop mode)
2x watchdogs
SysTick timer
Up to 83 fast I/Os, most 5 V-tolerant
Memories
Up to 256 KB single bank Flash, proprietary code readout protection
64 KB of SRAM including 16 KB with hardware parity check
Quad SPI memory interface
Rich analog peripherals (independent supply)
1x 12-bit ADC 5 MSPS, up to 16-bit with hardware oversampling, 200 µA/MSPS
2x 12-bit DAC output channels, low-power sample and hold
1x operational amplifiers with built-in PGA
2x ultra-low-power comparators
17x communication interfaces
USB 2.0 full-speed crystal less solution with LPM and BCD
1x SAI (serial audio interface)
3x I2C FM+(1 Mbit/s), SMBus/PMBus
4x USARTs (ISO 7816, LIN, IrDA, modem)
1x LPUART (Stop 2 wake-up)
3x SPIs (and 1x Quad SPI)
CAN (2.0B Active) and SDMMC interface
SWPMI single wire protocol master I/F
IRTIM (Infrared interface)
14-channel DMA controller
True random number generator
CRC calculation unit, 96-bit unique ID
Development support: serial wire debug (SWD), JTAG, Embedded Trace Macrocell*
More information about STM32L433RC can be found here:
Supported Features
The nucleo_l433rc_p board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
nucleo_l433rc_p/stm32l433xx target
Type |
Location |
Description |
Compatible |
|---|---|---|---|
CPU |
on-chip |
ARM Cortex-M4F CPU1 |
|
ADC |
on-chip |
||
CAN |
on-chip |
STM32 CAN controller1 |
|
Clock control |
on-chip |
STM32 RCC (Reset and Clock controller)1 |
|
on-chip |
STM32 HSE Clock1 |
||
on-chip |
|||
on-chip |
STM32 MSI Clock1 |
||
on-chip |
STM32 LSE Clock1 |
||
on-chip |
STM32L4/L5 main PLL1 |
||
on-chip |
PLLSAI node binding for STM32L4 device1 |
||
on-chip |
STM32 Microcontroller Clock Output (MCO)1 |
||
Counter |
on-chip |
STM32 counters5 |
|
DAC |
on-chip |
STM32 family DAC1 |
|
DMA |
on-chip |
STM32 DMA controller (V2)2 |
|
Flash controller |
on-chip |
STM32 Family flash controller1 |
|
GPIO & Headers |
on-chip |
STM32 GPIO Controller6 |
|
on-board |
GPIO pins exposed on Arduino Uno (R3) headers1 |
||
I2C |
on-chip |
||
I2S |
on-chip |
STM32 SAI controller2 |
|
Input |
on-board |
Group of GPIO-bound input keys1 |
|
Interrupt controller |
on-chip |
ARMv7-M NVIC (Nested Vectored Interrupt Controller)1 |
|
on-chip |
STM32 External Interrupt Controller1 |
||
LED |
on-board |
Group of GPIO-controlled LEDs1 |
|
Memory controller |
on-chip |
STM32 Battery Backed RAM1 |
|
MMC |
on-chip |
STM32 SDMMC Disk Access1 |
|
MTD |
on-chip |
STM32 flash memory1 |
|
on-board |
Fixed partitions of a flash (or other non-volatile storage) memory1 |
||
PHY |
on-chip |
This binding is to be used by all the usb transceivers which are built-in with USB IP1 |
|
Pin control |
on-chip |
STM32 Pin controller1 |
|
Power management |
on-chip |
STM32 power controller1 |
|
PWM |
on-chip |
||
QSPI |
on-chip |
STM32 QSPI Controller1 |
|
Reset controller |
on-chip |
STM32 Reset and Clock Control (RCC) Controller1 |
|
RNG |
on-chip |
STM32 Random Number Generator1 |
|
RTC |
on-chip |
STM32 RTC1 |
|
Sensors |
on-chip |
STM32 quadrature decoder2 |
|
on-chip |
STM32 family TEMP node for production calibrated sensors with two calibration temperatures1 |
||
on-chip |
STM32 VREF+1 |
||
on-chip |
STM32 VBAT1 |
||
Serial controller |
on-chip |
STM32 USART3 |
|
on-chip |
STM32 LPUART1 |
||
SMbus |
on-chip |
STM32 SMBus controller3 |
|
SPI |
on-chip |
||
Timer |
on-chip |
ARMv7-M System Tick1 |
|
on-chip |
|||
on-chip |
STM32 low-power timer (LPTIM)2 |
||
USB |
on-chip |
STM32 USB controller1 |
|
Watchdog |
on-chip |
STM32 watchdog1 |
|
on-chip |
STM32 system window watchdog1 |
Note
CAN feature requires CAN transceiver
Connections and IOs
Nucleo L433RC-P Board has 6 GPIO controllers. These controllers are responsible for pin muxing, input/output, pull-up, etc.

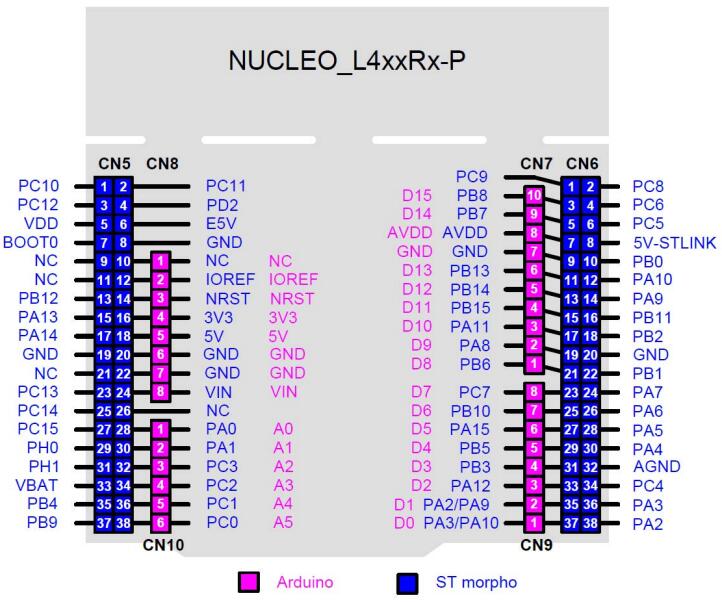

Available pins:
For more details please refer to ST Nucleo L433RC-P User Manual.
Default Zephyr Peripheral Mapping:
LPUART_1_TX : PA2
LPUART_1_RX : PA3
UART_1_TX : PA9
UART_1_RX : PA10
I2C_1_SCL : PB6
I2C_1_SDA : PB7
PWM_2_CH1 : PA0
LD4 : PB13
SPI_1: NSS/SCK/MISO/MOSI : PA4/PA5/PA6/PA7
SPI_2: NSS/SCK/MISO/MOSI : PA11/PB13/PB14/PB15 (Arduino SPI)
System Clock
Nucleo L433RC-P System Clock could be driven by internal or external oscillator, as well as main PLL clock. By default System clock is driven by PLL clock at 80MHz, driven by 16MHz high speed internal oscillator.
Serial Port
Nucleo L433RC-P board has 4 U(S)ARTs and 1 LPUART. The Zephyr console output is assigned to LPUART1. Default settings are 115200 8N1.
Programming and Debugging
The nucleo_l433rc_p board supports the runners and associated west commands listed below.
| flash | debug | rtt | debugserver | attach | |
|---|---|---|---|---|---|
| jlink | ✅ | ✅ | ✅ | ✅ | ✅ |
| openocd | ✅ | ✅ (default) | ✅ | ✅ | ✅ |
| stm32cubeprogrammer | ✅ (default) |
Nucleo L433RC-P board includes an ST-LINK/V2-1 embedded debug tool interface.
Applications for the nucleo_l433rc_p board configuration can be built and
flashed in the usual way (see Building an Application and
Run an Application for more details).
Flashing
The board is configured to be flashed using west STM32CubeProgrammer runner, so its installation is required.
Alternatively, OpenOCD or JLink can also be used to flash the board using
the --runner (or -r) option:
$ west flash --runner openocd
$ west flash --runner jlink
Flashing an application to Nucleo L433RC-P
Connect the Nucleo L433RC-P to your host computer using the USB port, then run a serial host program to connect with your Nucleo board.
$ picocom /dev/ttyACM0 -b 115200
Now build and flash an application. Here is an example for Hello World.
# From the root of the zephyr repository
west build -b nucleo_l433rc_p samples/hello_world
west flash
You should see the following message on the console:
$ Hello World! nucleo_l433rc_p
Debugging
You can debug an application in the usual way. Here is an example for the Hello World application.
# From the root of the zephyr repository
west build -b nucleo_l433rc_p samples/hello_world
west debug
