Nucleo L432KC
Overview
The Nucleo L432KC board features an ARM Cortex-M4 based STM32L432KC MCU with a wide range of connectivity support and configurations. Here are some highlights of the Nucleo L432KC board:
STM32 microcontroller in UFQFPN32 package
Arduino Uno V3 connectivity
On-board ST-LINK/V2-1 debugger/programmer with SWD connector
Flexible board power supply:
USB VBUS or external source(3.3V, 5V, 7 - 12V)
Power management access point
Three LEDs: USB communication (LD1), power LED (LD2), user LED (LD3)
One push-button: RESET
More information about the board can be found at the Nucleo L432KC website.
Hardware
The STM32L432KC SoC provides the following hardware IPs:
Ultra-low-power with FlexPowerControl (down to 28 nA Standby mode and 84 µA/MHz run mode)
Core: ARM® 32-bit Cortex® -M4 CPU with FPU, frequency up to 80 MHz, 100DMIPS/1.25DMIPS/MHz (Dhrystone 2.1)
Clock Sources:
32 kHz crystal oscillator for RTC (LSE)
Internal 16 MHz factory-trimmed RC ( ±1%)
Internal low-power 32 kHz RC ( ±5%)
Internal multispeed 100 kHz to 48 MHz oscillator, auto-trimmed by LSE (better than ±0.25 % accuracy)
2 PLLs for system clock, USB, audio, ADC
RTC with HW calendar, alarms and calibration
Up to 3 capacitive sensing channels: support touchkey, linear and rotary touch sensors
11x timers:
1x 16-bit advanced motor-control
1x 32-bit and 2x 16-bit general purpose
2x 16-bit basic
2x low-power 16-bit timers (available in Stop mode)
2x watchdogs
SysTick timer
Up to 26 fast I/Os, most 5 V-tolerant
Memories
Up to 256 KB single bank Flash, proprietary code readout protection
Up to 64 KB of SRAM including 16 KB with hardware parity check
Quad SPI memory interface
Rich analog peripherals (independent supply)
1x 12-bit ADC 5 MSPS, up to 16-bit with hardware oversampling, 200 µA/MSPS
2x 12-bit DAC, low-power sample and hold
1x operational amplifiers with built-in PGA
2x ultra-low-power comparators
13x communication interfaces
USB OTG 2.0 full-speed crystal less solution with LPM and BCD
1x SAIs (serial audio interface)
2x I2C FM+(1 Mbit/s), SMBus/PMBus
3x USARTs (ISO 7816, LIN, IrDA, modem)
2x SPIs (3x SPIs with the Quad SPI)
CAN (2.0B Active)
SWPMI single wire protocol master I/F
IRTIM (Infrared interface)
14-channel DMA controller
True random number generator
CRC calculation unit, 96-bit unique ID
Development support: serial wire debug (SWD), JTAG, Embedded Trace Macrocell*
More information about STM32L432KC can be found here:
Supported Features
The nucleo_l432kc board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
nucleo_l432kc/stm32l432xx target
Type |
Location |
Description |
Compatible |
|---|---|---|---|
CPU |
on-chip |
ARM Cortex-M4F CPU1 |
|
ADC |
on-chip |
STM32 ADC2 |
|
CAN |
on-chip |
STM32 CAN controller1 |
|
Clock control |
on-chip |
STM32 RCC (Reset and Clock controller)1 |
|
on-chip |
STM32 HSE Clock1 |
||
on-chip |
|||
on-chip |
STM32 MSI Clock1 |
||
on-chip |
STM32 LSE Clock1 |
||
on-chip |
STM32L4/L5 main PLL1 |
||
on-chip |
STM32 Microcontroller Clock Output (MCO)1 |
||
Counter |
on-chip |
STM32 counters5 |
|
DAC |
on-chip |
STM32 family DAC1 |
|
DMA |
on-chip |
STM32 DMA controller (V2)2 |
|
Flash controller |
on-chip |
STM32 Family flash controller1 |
|
GPIO & Headers |
on-chip |
STM32 GPIO Controller4 |
|
I2C |
on-chip |
||
Interrupt controller |
on-chip |
ARMv7-M NVIC (Nested Vectored Interrupt Controller)1 |
|
on-chip |
STM32 External Interrupt Controller1 |
||
LED |
on-board |
Group of GPIO-controlled LEDs1 |
|
Memory controller |
on-chip |
STM32 Battery Backed RAM1 |
|
MTD |
on-chip |
STM32 flash memory1 |
|
on-board |
Fixed partitions of a flash (or other non-volatile storage) memory1 |
||
PHY |
on-chip |
This binding is to be used by all the usb transceivers which are built-in with USB IP1 |
|
Pin control |
on-chip |
STM32 Pin controller1 |
|
Power management |
on-chip |
STM32 power controller1 |
|
PWM |
on-chip |
||
QSPI |
on-chip |
STM32 QSPI Controller1 |
|
Reset controller |
on-chip |
STM32 Reset and Clock Control (RCC) Controller1 |
|
RNG |
on-chip |
STM32 Random Number Generator1 |
|
RTC |
on-chip |
STM32 RTC1 |
|
Sensors |
on-chip |
STM32 family TEMP node for production calibrated sensors with two calibration temperatures1 |
|
on-chip |
STM32 VREF+1 |
||
on-chip |
STM32 VBAT1 |
||
Serial controller |
on-chip |
||
on-chip |
STM32 LPUART1 |
||
SMbus |
on-chip |
STM32 SMBus controller2 |
|
SPI |
on-chip |
||
SRAM |
on-chip |
Generic on-chip SRAM description1 |
|
Timer |
on-chip |
ARMv7-M System Tick1 |
|
on-chip |
|||
on-chip |
STM32 low-power timer (LPTIM)2 |
||
USB |
on-chip |
STM32 USB controller1 |
|
Watchdog |
on-chip |
STM32 watchdog1 |
|
on-chip |
STM32 system window watchdog1 |
Note
CAN feature requires CAN transceiver
Connections and IOs
Nucleo L432KC Board has 6 GPIO controllers. These controllers are responsible for pin muxing, input/output, pull-up, etc.

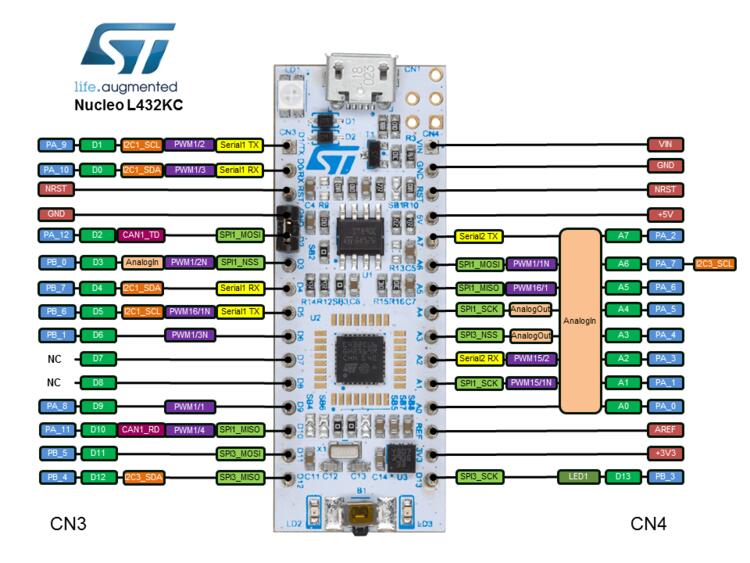

Available pins:
For more details please refer to STM32 Nucleo-32 board User Manual.
Default Zephyr Peripheral Mapping:
UART_1_TX : PA9
UART_1_RX : PA10
UART_2_TX : PA2
UART_2_RX : PA3
I2C_1_SCL : PB6
I2C_1_SDA : PB7
PWM_2_CH1 : PA0
LD3 : PB3
System Clock
Nucleo L432KC System Clock could be driven by internal or external oscillator, as well as main PLL clock. By default System clock is driven by PLL clock at 80MHz, driven by 16MHz high speed internal oscillator.
Serial Port
Nucleo L432KC board has 3 U(S)ARTs. The Zephyr console output is assigned to UART2. Default settings are 115200 8N1.
Programming and Debugging
Nucleo L432KC board includes an ST-LINK/V2-1 embedded debug tool interface.
Applications for the nucleo_l432kc board configuration can be built and
flashed in the usual way (see Building an Application and
Run an Application for more details).
Flashing
The board is configured to be flashed using west STM32CubeProgrammer runner, so its installation is required.
Alternatively, OpenOCD or JLink can also be used to flash the board using
the --runner (or -r) option:
$ west flash --runner openocd
$ west flash --runner jlink
Flashing an application to Nucleo L432KC
Connect the Nucleo L432KC to your host computer using the USB port, then run a serial host program to connect with your Nucleo board.
$ minicom -D /dev/ttyACM0
Now build and flash an application. Here is an example for Hello World.
# From the root of the zephyr repository
west build -b nucleo_l432kc samples/hello_world
west flash
You should see the following message on the console:
$ Hello World! arm
Debugging
You can debug an application in the usual way. Here is an example for the Hello World application.
# From the root of the zephyr repository
west build -b nucleo_l432kc samples/hello_world
west debug
