Nucleo F207ZG
Overview
The Nucleo F207ZG board features an ARM Cortex-M3 based STM32F207ZG MCU with a wide range of connectivity support and configurations. Here are some highlights of the Nucleo F207ZG board:
STM32 microcontroller in LQFP144 package
Ethernet compliant with IEEE-802.3-2002
Two types of extension resources:
ST Zio connector including: support for Arduino* Uno V3 connectivity (A0 to A5, D0 to D15) and additional signals exposing a wide range of peripherals
ST morpho extension pin headers for full access to all STM32 I/Os
On-board ST-LINK/V2-1 debugger/programmer with SWD connector
Flexible board power supply:
5 V from ST-LINK/V2-1 USB VBUS
External power sources: 3.3 V and 7 - 12 V on ST Zio or ST morpho connectors, 5 V on ST morpho connector
Three user LEDs
Two push-buttons: USER and RESET
More information about the board can be found at the Nucleo F207ZG website.
Hardware
Nucleo F207ZG provides the following hardware components:
STM32F207ZGT6 in LQFP144 package
ARM® 32-bit Cortex® -M3 CPU
120 MHz max CPU frequency
VDD from 1.7 V to 3.6 V
1 MB Flash
128 KB SRAM
GPIO with external interrupt capability
12-bit ADC with 24 channels
RTC
17 General purpose timers
2 watchdog timers (independent and window)
SysTick timer
USART/UART (6)
I2C (3)
SPI (3)
SDIO
USB 2.0 OTG FS
DMA Controller
10/100 Ethernet MAC with dedicated DMA
CRC calculation unit
True random number generator
More information about STM32F207ZG can be found here:
Supported Features
The nucleo_f207zg board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
nucleo_f207zg/stm32f207xx target
Type |
Location |
Description |
Compatible |
|---|---|---|---|
CPU |
on-chip |
ARM Cortex-M3 CPU1 |
|
ADC |
on-chip |
STM32F4 ADC1 |
|
Clock control |
on-chip |
STM32 RCC (Reset and Clock controller)1 |
|
on-chip |
STM32 HSE Clock1 |
||
on-chip |
|||
on-chip |
STM32F2 Main PLL1 |
||
Counter |
on-chip |
STM32 counters11 |
|
DAC |
on-chip |
STM32 family DAC1 |
|
DMA |
on-chip |
||
Ethernet |
on-chip |
ST STM32 Ethernet1 |
|
Flash controller |
on-chip |
STM32 Family flash controller1 |
|
GPIO & Headers |
on-chip |
STM32 GPIO Controller9 |
|
on-board |
GPIO pins exposed on Arduino Uno (R3) headers1 |
||
I2C |
on-chip |
||
Input |
on-board |
Group of GPIO-bound input keys1 |
|
Interrupt controller |
on-chip |
ARMv7-M NVIC (Nested Vectored Interrupt Controller)1 |
|
on-chip |
STM32 External Interrupt Controller1 |
||
LED |
on-board |
Group of GPIO-controlled LEDs1 |
|
on-board |
Group of PWM-controlled LEDs1 |
||
Memory controller |
on-chip |
STM32 Battery Backed RAM1 |
|
MTD |
on-chip |
STM32 flash memory1 |
|
on-board |
Fixed partitions of a flash (or other non-volatile storage) memory1 |
||
PHY |
on-chip |
This binding is to be used by all the usb transceivers which are built-in with USB IP1 |
|
Pin control |
on-chip |
STM32 Pin controller1 |
|
PWM |
on-chip |
||
Reset controller |
on-chip |
STM32 Reset and Clock Control (RCC) Controller1 |
|
RNG |
on-chip |
STM32 Random Number Generator1 |
|
RTC |
on-chip |
STM32 RTC1 |
|
Sensors |
on-chip |
STM32 Internal Temperature Sensor1 |
|
Serial controller |
on-chip |
||
on-chip |
STM32 UART2 |
||
SMbus |
on-chip |
STM32 SMBus controller3 |
|
SPI |
on-chip |
||
SRAM |
on-chip |
Generic on-chip SRAM description1 |
|
Timer |
on-chip |
ARMv7-M System Tick1 |
|
on-chip |
|||
USB |
on-chip |
STM32 OTGFS controller1 |
|
Watchdog |
on-chip |
STM32 watchdog1 |
|
on-chip |
STM32 system window watchdog1 |
Connections and IOs
Nucleo F207ZG Board has 8 GPIO controllers. These controllers are responsible for pin muxing, input/output, pull-up, etc.

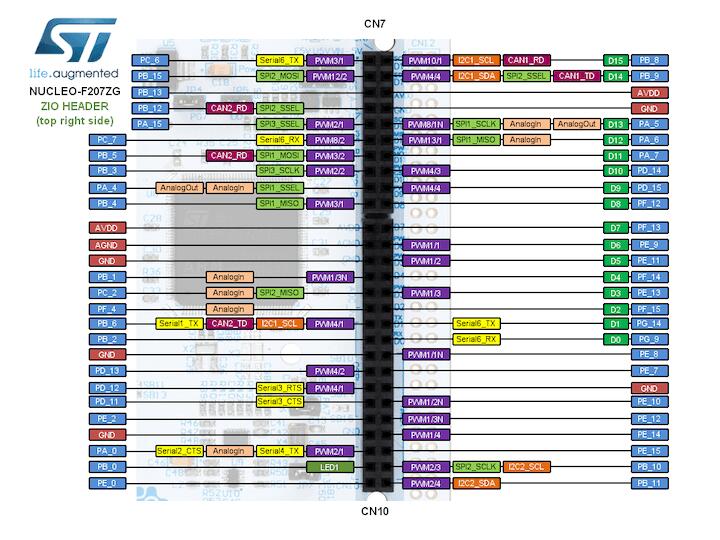

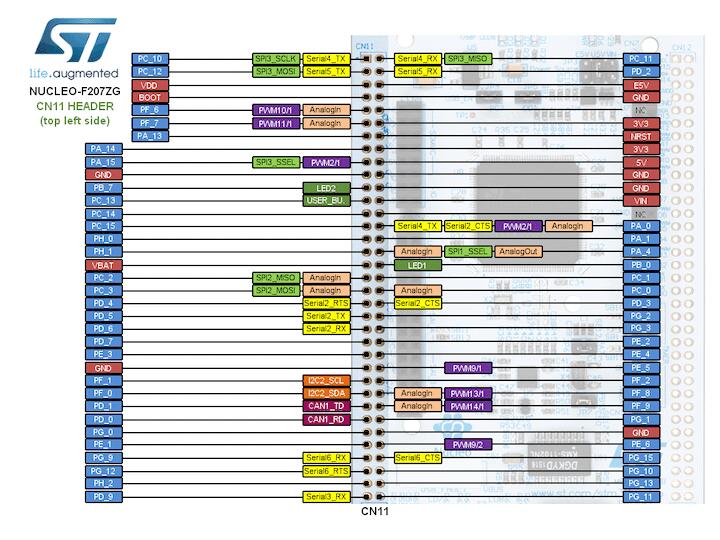

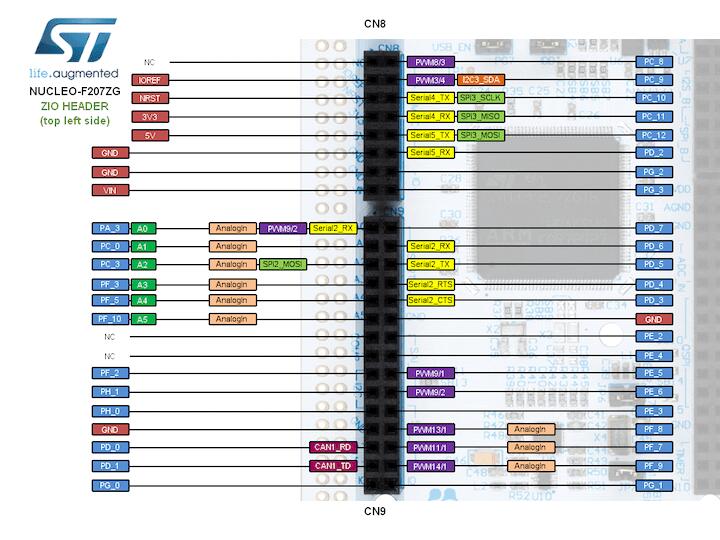

Available pins:
For more details please refer to STM32 Nucleo-144 board User Manual.
Default Zephyr Peripheral Mapping:
UART_3 TX/RX : PD8/PD9 (ST-Link Virtual Port Com)
UART_6 TX/RX : PG14/PG9 (Arduino Serial)
I2C1 SCL/SDA : PB8/PB9 (Arduino I2C)
SPI1 NSS/SCK/MISO/MOSI : PD14/PA5/PA6/PA7 (Arduino SPI)
ETH : PA1, PA2, PA7, PB13, PC1, PC4, PC5, PG11, PG13
USB_DM : PA11
USB_DP : PA12
USER_PB : PC13
LD1 : PB0
LD2 : PB7
LD3 : PB14
DAC: PA4
ADC: PA0
PWM_1_CH1 : PE9
System Clock
Nucleo F207ZG System Clock could be driven by internal or external oscillator, as well as main PLL clock. By default System clock is driven by PLL clock at 120MHz, driven by 8MHz high speed external clock.
Serial Port
Nucleo F207ZG board has 4 UARTs. The Zephyr console output is assigned to UART3. Default settings are 115200 8N1.
Network interface
Ethernet configured as the default network interface
USB
Nucleo F207ZG board has a USB OTG dual-role device (DRD) controller that supports both device and host functions through its micro USB connector (USB USER). Only USB device function is supported in Zephyr at the moment.
Backup SRAM
In order to test backup SRAM you may want to disconnect VBAT from VDD. You can
do it by removing SB156 jumper on the back side of the board.
Programming and Debugging
Nucleo F207ZG board includes an ST-LINK/V2-1 embedded debug tool interface.
Flashing
The board is configured to be flashed using west STM32CubeProgrammer runner, so its installation is required.
Alternatively, OpenOCD or JLink can also be used to flash the board using
the --runner (or -r) option:
$ west flash --runner openocd
$ west flash --runner jlink
