Nucleo U575ZI Q
Overview

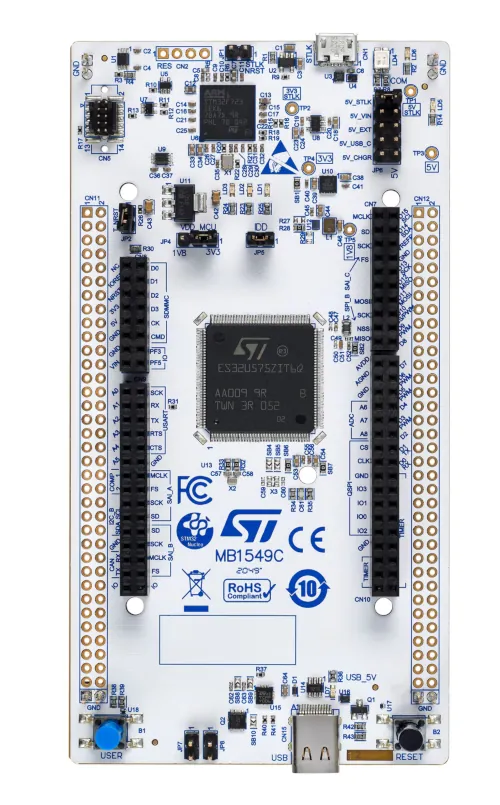

The Nucleo U575ZI Q board, featuring an ARM Cortex-M33 based STM32U575ZI MCU, provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features. Here are some highlights of the Nucleo U575ZI Q board:
STM32U575ZI microcontroller in LQFP144 package
Internal SMPS to generate V core logic supply
Two types of extension resources:
Arduino Uno V3 connectivity
ST morpho extension pin headers for full access to all STM32 I/Os
On-board ST-LINK/V3E debugger/programmer
Flexible board power supply:
USB VBUS or external source(3.3V, 5V, 7 - 12V)
ST-Link V3E
Three users LEDs
Two push-buttons: USER and RESET
USB Type-C™ Sink device FS
Hardware
The STM32U575xx devices are an ultra-low-power microcontrollers family (STM32U5 Series) based on the high-performance Arm|reg| Cortex|reg|-M33 32-bit RISC core. They operate at a frequency of up to 160 MHz.
Ultra-low-power with FlexPowerControl (down to 300 nA Standby mode and 19.5 uA/MHz run mode)
Core: ARM® 32-bit Cortex® -M33 CPU with TrustZone® and FPU.
Performance benchmark:
1.5 DMPIS/MHz (Drystone 2.1)
651 CoreMark® (4.07 CoreMark® /MHZ)
Security
Arm® TrustZone® and securable I/Os memories and peripherals
Flexible life cycle scheme with RDP (readout protection) and password protected debug
Root of trust thanks to unique boot entry and secure hide protection area (HDP)
Secure Firmware Installation thanks to embedded Root Secure Services
Secure Firmware Update support with TF-M
HASH hardware accelerator
Active tampers
True Random Number Generator NIST SP800-90B compliant
96-bit unique ID
512-byte One-Time Programmable for user data
Clock management:
4 to 50 MHz crystal oscillator
32 kHz crystal oscillator for RTC (LSE)
Internal 16 MHz factory-trimmed RC ( ±1%)
Internal low-power 32 kHz RC ( ±5%)
2 internal multispeed 100 kHz to 48 MHz oscillators, including one auto-trimmed by LSE (better than ±0.25 % accuracy)
3 PLLs for system clock, USB, audio, ADC
Internal 48 MHz with clock recovery
Power management
Embedded regulator (LDO)
Embedded SMPS step-down converter supporting switch on-the-fly and voltage scaling
RTC with HW calendar and calibration
Up to 136 fast I/Os, most 5 V-tolerant, up to 14 I/Os with independent supply down to 1.08 V
Up to 24 capacitive sensing channels: support touchkey, linear and rotary touch sensors
Up to 17 timers and 2 watchdogs
2x 16-bit advanced motor-control
2x 32-bit and 5 x 16-bit general purpose
4x low-power 16-bit timers (available in Stop mode)
2x watchdogs
2x SysTick timer
ART accelerator
8-Kbyte instruction cache allowing 0-wait-state execution from Flash and external memories: up to 160 MHz, MPU, 240 DMIPS and DSP
4-Kbyte data cache for external memories
Memories
2-Mbyte Flash memory with ECC, 2 banks read-while-write, including 512 Kbytes with 100 kcycles
786-Kbyte SRAM with ECC OFF or 722-Kbyte SRAM including up to 322-Kbyte SRAM with ECC ON
External memory interface supporting SRAM, PSRAM, NOR, NAND and FRAM memories
2 Octo-SPI memory interfaces
Rich analog peripherals (independent supply)
14-bit ADC 2.5-Msps, resolution up to 16 bits with hardware oversampling
12-bit ADC 2.5-Msps, with hardware oversampling, autonomous in Stop 2 mode
2 12-bit DAC, low-power sample and hold
2 operational amplifiers with built-in PGA
2 ultra-low-power comparators
Up to 22 communication interfaces
USB Type-C / USB power delivery controller
USB OTG 2.0 full-speed controller
2x SAIs (serial audio interface)
4x I2C FM+(1 Mbit/s), SMBus/PMBus
6x USARTs (ISO 7816, LIN, IrDA, modem)
3x SPIs (5x SPIs with dual OCTOSPI in SPI mode)
1x FDCAN
2x SDMMC interface
16- and 4-channel DMA controllers, functional in Stop mode
1 multi-function digital filter (6 filters)+ 1 audio digital filter with sound-activity detection
CRC calculation unit
Development support: serial wire debug (SWD), JTAG, Embedded Trace Macrocell™
True Random Number Generator (RNG)
Graphic features
Chrom-ART Accelerator (DMA2D) for enhanced graphic content creation
1 digital camera interface
Mathematical co-processor
CORDIC for trigonometric functions acceleration
FMAC (filter mathematical accelerator)
More information about STM32U575ZI can be found here:
Supported Features
The nucleo_u575zi_q board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
nucleo_u575zi_q/stm32u575xx target
Type |
Location |
Description |
Compatible |
|---|---|---|---|
CPU |
on-chip |
ARM Cortex-M33 CPU1 |
|
ADC |
on-chip |
STM32 ADC2 |
|
CAN |
on-chip |
STM32 FDCAN CAN FD controller1 |
|
Clock control |
on-chip |
STM32U5 RCC (Reset and Clock controller)1 |
|
on-chip |
STM32 HSE Clock1 |
||
on-chip |
|||
on-chip |
|||
on-chip |
STM32 LSE Clock1 |
||
on-chip |
|||
on-chip |
STM32 Microcontroller Clock Output (MCO)1 |
||
Counter |
on-chip |
STM32 counters5 |
|
Cryptographic accelerator |
on-chip |
STM32 AES Accelerator1 |
|
DAC |
on-chip |
STM32 family DAC1 |
|
DMA |
on-chip |
STM32U5 DMA controller1 |
|
Flash controller |
on-chip |
STM32 Family flash controller1 |
|
GPIO & Headers |
on-chip |
STM32 GPIO Controller9 |
|
on-chip |
Serial Wire - JTAG Connector1 |
||
on-board |
GPIO pins exposed on Arduino Uno (R3) headers1 |
||
I2C |
on-chip |
||
Input |
on-board |
Group of GPIO-bound input keys1 |
|
Interrupt controller |
on-chip |
ARMv8-M NVIC (Nested Vectored Interrupt Controller)1 |
|
on-chip |
STM32G0 External Interrupt Controller1 |
||
LED |
on-board |
Group of GPIO-controlled LEDs1 |
|
on-board |
Group of PWM-controlled LEDs1 |
||
Memory controller |
on-chip |
STM32 Flexible Memory Controller (FMC)1 |
|
on-chip |
STM32 Flexible Memory Controller (NOR Flash/PSRAM/SRAM controller)1 |
||
MMC |
on-chip |
STM32 SDMMC Disk Access2 |
|
MMU / MPU |
on-chip |
ARMv8-M MPU (Memory Protection Unit)1 |
|
MTD |
on-chip |
STM32 flash memory1 |
|
OCTOSPI |
on-chip |
STM32 OSPI Controller2 |
|
PHY |
on-chip |
This binding is to be used by all the usb transceivers which are built-in with USB IP1 |
|
Pin control |
on-chip |
STM32 Pin controller1 |
|
Power management |
on-chip |
STM32 power controller1 |
|
PWM |
on-chip |
||
Reset controller |
on-chip |
STM32 Reset and Clock Control (RCC) Controller1 |
|
RNG |
on-chip |
STM32 Random Number Generator1 |
|
RTC |
on-chip |
STM32 RTC1 |
|
Sensors |
on-chip |
STM32 family TEMP node for production calibrated sensors with two calibration temperatures1 |
|
on-chip |
|||
on-chip |
|||
Serial controller |
on-chip |
||
on-chip |
STM32 UART2 |
||
on-chip |
STM32 LPUART1 |
||
SMbus |
on-chip |
STM32 SMBus controller4 |
|
SPI |
on-chip |
||
SRAM |
on-chip |
Generic on-chip SRAM description1 |
|
USB Type-C Port Controller |
on-chip |
STM32 USB Type-C / Power Delivery1 |
|
Timer |
on-chip |
ARMv8-M System Tick1 |
|
on-chip |
|||
on-chip |
|||
USB |
on-chip |
STM32 OTGFS controller1 |
|
Watchdog |
on-chip |
STM32 watchdog1 |
|
on-chip |
STM32 system window watchdog1 |
Connections and IOs
Nucleo U575ZI Q Board has 9 GPIO controllers. These controllers are responsible for pin muxing, input/output, pull-up, etc.
For more details please refer to STM32 Nucleo-144 board User Manual.
Default Zephyr Peripheral Mapping:
CAN/CANFD_TX: PD1
CAN/CANFD_RX: PD0
DAC1_OUT1 : PA4
I2C_1_SCL : PB8
I2C_1_SDA : PB9
I2C_2_SCL : PF1
I2C_2_SDA : PF0
LD1 : PC7
LD2 : PB7
LD3 : PG2
LPUART_1_TX : PG7
LPUART_1_RX : PG8
SPI_1_NSS : PA4
SPI_1_SCK : PA5
SPI_1_MISO : PA6
SPI_1_MOSI : PA7
UART_1_TX : PA9
UART_1_RX : PA10
UART_2_TX : PD5
UART_2_RX : PD6
USER_PB : PC13
System Clock
Nucleo U575ZI Q System Clock could be driven by internal or external oscillator, as well as main PLL clock. By default System clock is driven by PLL clock at 160MHz, driven by 4MHz medium speed internal oscillator.
Serial Port
Nucleo U575ZI Q board has 6 U(S)ARTs. The Zephyr console output is assigned to USART1. Default settings are 115200 8N1.
Backup SRAM
In order to test backup SRAM you may want to disconnect VBAT from VDD. You can
do it by removing SB50 jumper on the back side of the board.
Programming and Debugging
Nucleo U575ZI-Q board includes an ST-LINK/V3 embedded debug tool interface. This probe allows to flash the board using various tools.
Flashing
The board is configured to be flashed using west STM32CubeProgrammer runner, so its installation is required.
Alternatively, OpenOCD, JLink, or pyOCD can also be used to flash the board using
the --runner (or -r) option:
$ west flash --runner openocd
$ west flash --runner jlink
$ west flash --runner pyocd
For pyOCD, additional target information needs to be installed. This can be done by executing the following commands.
$ pyocd pack --update
$ pyocd pack --install stm32u5
Flashing an application to Nucleo U575ZI Q
Connect the Nucleo U575ZI Q to your host computer using the USB port. Then build and flash an application. Here is an example for the Hello World application.
Run a serial host program to connect with your Nucleo board:
$ minicom -D /dev/ttyACM0
Then build and flash the application.
# From the root of the zephyr repository
west build -b nucleo_u575zi_q samples/hello_world
west flash
You should see the following message on the console:
Hello World! arm
Debugging
Default flasher for this board is openocd. It could be used in the usual way. Here is an example for the Blinky application.
# From the root of the zephyr repository
west build -b nucleo_u575zi_q samples/basic/blinky
west debug
