Nucleo F429ZI
Overview
The Nucleo F429ZI board features an ARM Cortex-M4 based STM32F429ZI MCU with a wide range of connectivity support and configurations. Here are some highlights of the Nucleo F429ZI board:
STM32 microcontroller in LQFP144 package
LSE crystal: 32.768 kHz crystal oscillator
USB OTG
Ethernet compliant with IEEE-802.3-2002
Two types of extension resources:
ST Zio connector including: support for Arduino* Uno V3 connectivity (A0 to A5, D0 to D15) and additional signals exposing a wide range of peripherals
ST morpho extension pin headers for full access to all STM32 I/Os
On-board ST-LINK/V2-1 debugger/programmer with SWD connector
Flexible board power supply:
5 V from ST-LINK/V2-1 USB VBUS
External power sources: 3.3 V and 7 - 12 V on ST Zio or ST morpho connectors, 5 V on ST morpho connector
Three user LEDs
Two push-buttons: USER and RESET
More information about the board can be found at the Nucleo F429ZI website.
Hardware
The Nucleo F429ZI provides the following hardware components:
STM32F429ZIT6 in LQFP144 package
ARM® 32-bit Cortex® -M4 CPU with FPU
180 MHz max CPU frequency
VDD from 1.8 V to 3.6 V
2 MB Flash
256+4 KB SRAM including 64-Kbyte of core coupled memory
GPIO with external interrupt capability
3x12-bit ADC with 24 channels
2x12-bit D/A converters
RTC
Advanced-control Timer
General Purpose Timers (17)
Watchdog Timers (2)
USART/UART (4/4)
I2C (3)
SPI (6)
SDIO
2xCAN
USB 2.0 OTG FS with on-chip PHY
USB 2.0 OTG HS/FS with dedicated DMA, on-chip full-speed PHY and ULPI
10/100 Ethernet MAC with dedicated DMA
8- to 14-bit parallel camera
CRC calculation unit
True random number generator
DMA Controller
More information about STM32F429ZI can be found here:
Supported Features
The nucleo_f429zi board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
nucleo_f429zi/stm32f429xx target
Type |
Location |
Description |
Compatible |
|---|---|---|---|
CPU |
on-chip |
ARM Cortex-M4F CPU1 |
|
ADC |
on-chip |
STM32F4 ADC1 |
|
on-chip |
STM32 ADC2 |
||
CAN |
on-chip |
STM32 CAN controller2 |
|
Clock control |
on-chip |
STM32 RCC (Reset and Clock controller)1 |
|
on-chip |
STM32 HSE Clock1 |
||
on-chip |
|||
on-chip |
STM32F4 Main PLL1 |
||
on-chip |
STM32F4 PLL I2S1 |
||
on-chip |
STM32 Microcontroller Clock Output (MCO)2 |
||
Counter |
on-chip |
STM32 counters12 |
|
DAC |
on-chip |
STM32 family DAC1 |
|
Display |
on-chip |
STM32 LCD-TFT display controller1 |
|
DMA |
on-chip |
||
Ethernet |
on-chip |
ST STM32 Ethernet1 |
|
Flash controller |
on-chip |
STM32 Family flash controller1 |
|
GPIO & Headers |
on-chip |
STM32 GPIO Controller11 |
|
on-board |
GPIO pins exposed on Arduino Uno (R3) headers1 |
||
I2C |
on-chip |
||
I2S |
on-chip |
STM32 I2S controller2 |
|
Input |
on-board |
Group of GPIO-bound input keys1 |
|
Interrupt controller |
on-chip |
ARMv7-M NVIC (Nested Vectored Interrupt Controller)1 |
|
on-chip |
STM32 External Interrupt Controller1 |
||
LED |
on-board |
Group of GPIO-controlled LEDs1 |
|
Memory controller |
on-chip |
STM32 Battery Backed RAM1 |
|
on-chip |
STM32 Flexible Memory Controller (FMC)1 |
||
on-chip |
STM32 Flexible Memory Controller (SDRAM controller)1 |
||
MMC |
on-chip |
STM32 SDMMC Disk Access1 |
|
MTD |
on-chip |
STM32F4 flash memory1 |
|
on-board |
Fixed partitions of a flash (or other non-volatile storage) memory1 |
||
PHY |
on-chip |
This binding is to be used by all the usb transceivers which are built-in with USB IP2 |
|
Pin control |
on-chip |
STM32 Pin controller1 |
|
PWM |
on-chip |
||
Reset controller |
on-chip |
STM32 Reset and Clock Control (RCC) Controller1 |
|
RNG |
on-chip |
STM32 Random Number Generator1 |
|
RTC |
on-chip |
STM32 RTC1 |
|
Sensors |
on-chip |
STM32 quadrature decoder6 |
|
on-chip |
STM32 family TEMP node for production calibrated sensors with two calibration temperatures1 |
||
on-chip |
STM32 VREF+1 |
||
on-chip |
STM32 VBAT1 |
||
Serial controller |
on-chip |
||
on-chip |
STM32 UART4 |
||
SMbus |
on-chip |
STM32 SMBus controller3 |
|
SPI |
on-chip |
||
SRAM |
on-chip |
Generic on-chip SRAM description1 |
|
Timer |
on-chip |
ARMv7-M System Tick1 |
|
on-chip |
|||
USB |
on-chip |
STM32 OTGFS controller1 |
|
on-chip |
STM32 OTGHS controller1 |
||
Watchdog |
on-chip |
STM32 watchdog1 |
|
on-chip |
STM32 system window watchdog1 |
Connections and IOs
The Nucleo F429ZI Board has 8 GPIO controllers. These controllers are responsible for pin muxing, input/output, pull-up, etc.

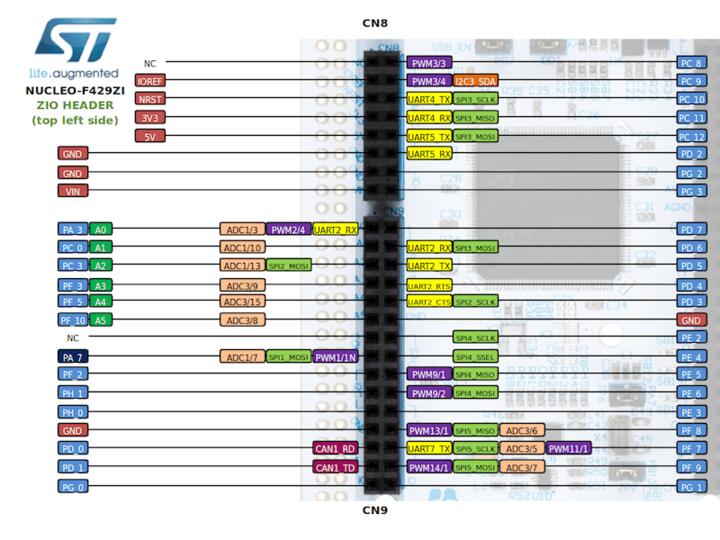

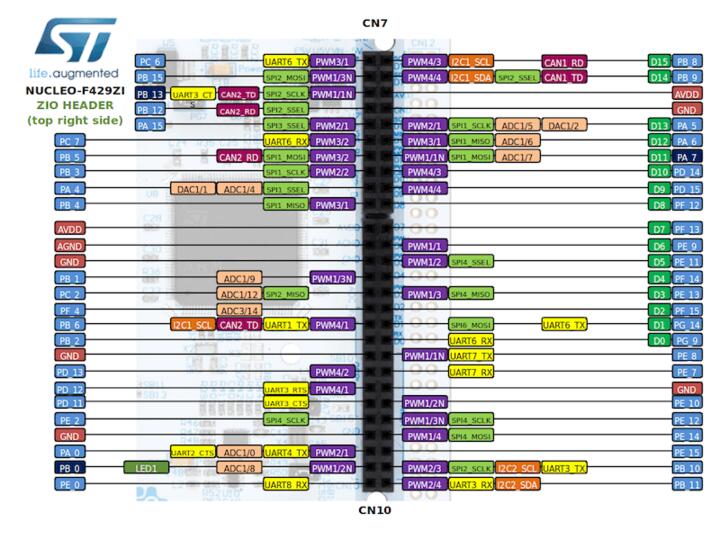

Available pins:
For more details please refer to STM32 Nucleo-144 board User Manual.
Default Zephyr Peripheral Mapping:
The Nucleo F429ZI board features a ST Zio connector (extended Arduino Uno V3) and a ST morpho connector. Board is configured as follows
UART_3 TX/RX : PD8/PD9 (ST-Link Virtual Port Com)
UART_6 TX/RX : PG14/PG9 (Arduino Serial)
I2C1 SCL/SDA : PB8/PB9 (Arduino I2C)
SPI1 NSS/SCK/MISO/MOSI : PD14/PA5/PA6/PA7 (Arduino SPI)
PWM_2_CH1 : PE13
ETH : PA1, PA2, PA7, PB13, PC1, PC4, PC5, PG11, PG13
USER_PB : PC13
LD1 : PB0
LD2 : PB7
LD3 : PB14
USB DM : PA11
USB DP : PA12
ADC1 : PA0
System Clock
The Nucleo F429ZI System Clock could be driven by an internal or external oscillator, as well as by the main PLL clock. By default System clock is driven by PLL clock at 180MHz, driven by an 8MHz high speed external clock.
Serial Port
The Nucleo F429ZI board has 8 UARTs. The Zephyr console output is assigned to UART3. Default settings are 115200 8N1.
Programming and Debugging
The Nucleo F429ZI board includes an ST-LINK/V2-1 embedded debug tool interface.
Flashing
The board is configured to be flashed using west STM32CubeProgrammer runner, so its installation is required.
Alternatively, OpenOCD or JLink can also be used to flash the board using
the --runner (or -r) option:
$ west flash --runner openocd
$ west flash --runner jlink
Flash partitions for MCUBoot bootloader
The on-board STM32F429ZI MCU has 2MBs of internal flash memory. To use MCUboot,
define a Zephyr partition table for the flash memory in
its devicetree file nucleo_f429zi.dts. As a reference, a partition table for
MCUBoot is already defined in the devicetree file, with these settings:
MCUBoot bootloader partition takes 64K bytes.
Zephyr settings partition takes 64K bytes.
Application image takes 256K bytes in Slot 0 partition.
Updating image takes another 256K bytes in Slot 1 partition.
A scratch partition with 128K is required for image swap.
A specific application can adjust each partition size based on its needs.
