STM32MP157x-DK2 Discovery
Overview

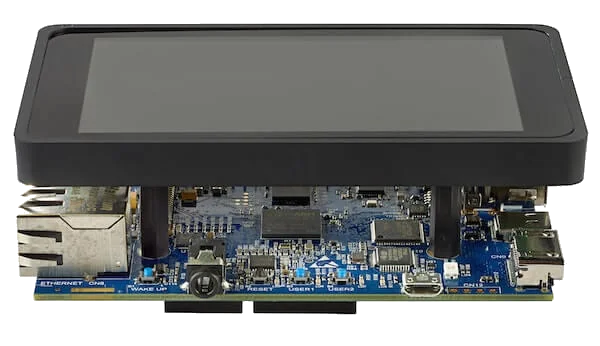

The STM32MP157x-DK2 Discovery board leverages the capacities of the STM32MP157 multi-core processor, composed of a dual Cortex®-A7 and a single Cortex®-M4 core. Zephyr OS is ported to run on the Cortex®-M4 core.
The board is available with two SoC options, selected through the board qualifier:
stm32mp157x_dk2/stm32mp157cxx— STM32MP157C-DK2 (Cortex®-A7 up to 650 MHz)stm32mp157x_dk2/stm32mp157fxx— STM32MP157F-DK2 (Cortex®-A7 up to 800 MHz, newer Rev.Z silicon)
From the Cortex®-M4 (Zephyr) point of view the two variants are identical: same package, peripherals, pin mapping and memory layout. They differ only by the maximum Cortex®-A7 frequency and the silicon revision, both in the Cortex®-A7 domain. Build for the variant you own using the SoC qualifier.
Common features:
STM32MP157:
Arm®-based dual Cortex®-A7 32 bits
Cortex®-M4 32 bits
embedded SRAM (448 Kbytes) for Cortex®-M4.
ST PMIC STPMIC1A
4-Gbit DDR3L, 16 bits, 533 MHz
1-Gbps Ethernet (RGMII) compliant with IEEE-802.3ab
USB OTG HS
Audio CODEC, with a stereo headset jack, including analog microphone input
4 user LEDs
2 user and reset push-buttons, 1 wake-up button
5 V / 3 A USB Type-C™ power supply input (not provided)
Board connectors:
Ethernet RJ45
4 USB Host Type-A
USB Type-C
DRP MIPI DSI HDMI
Stereo headset jack including analog microphone input
microSD card
GPIO expansion connector (Raspberry Pi® shields capability)
Arduino™ Uno V3 expansion connectors
On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: Virtual COM port and debug port
Board-specific features:
4” TFT 480×800 pixels with LED backlight, MIPI DSI interface, and capacitive touch panel
Wi-Fi® 802.11b/g/n
Bluetooth® Low Energy 4.1
More information about the board can be found at the STM32MP157F-DK2 website and STM32MP157C-DK2 website.
Hardware
The STM32MP157 SoC provides the following hardware capabilities:
Core:
32-bit dual-core Arm® Cortex®-A7
L1 32-Kbyte I / 32-Kbyte D for each core
256-Kbyte unified level 2 cache
Arm® NEON™ and Arm® TrustZone®
32-bit Arm® Cortex®-M4 with FPU/MPU
Up to 209 MHz (Up to 703 CoreMark®)
Memories:
External DDR memory up to 1 Gbyte.
708 Kbytes of internal SRAM: 256 KB of AXI SYSRAM + 384 KB of AHB SRAM + 64 KB of AHB SRAM in backup domain.
Dual mode Quad-SPI memory interface
Flexible external memory controller with up to 16-bit data bus
Security/safety:
Secure boot, TrustZone® peripherals with Cortex®-M4 resources isolation
Clock management:
Internal oscillators: 64 MHz HSI oscillator, 4 MHz CSI oscillator, 32 kHz LSI oscillator
External oscillators: 8-48 MHz HSE oscillator, 32.768 kHz LSE oscillator
6 × PLLs with fractional mode
General-purpose input/outputs:
Up to 176 I/O ports with interrupt capability
Interconnect matrix
3 DMA controllers
Communication peripherals:
6 × I2C FM+ (1 Mbit/s, SMBus/PMBus)
4 × UART + 4 × USART (12.5 Mbit/s, ISO7816 interface, LIN, IrDA, SPI slave)
6 × SPI (50 Mbit/s, including 3 with full duplex I2S audio class accuracy)
4 × SAI (stereo audio: I2S, PDM, SPDIF Tx)
SPDIF Rx with 4 inputs
HDMI-CEC interface
MDIO Slave interface
3 × SDMMC up to 8-bit (SD / e•MMC™ / SDIO)
2 × CAN controllers supporting CAN FD protocol, TTCAN capability
2 × USB 2.0 high-speed Host+ 1 × USB 2.0 full-speed OTG simultaneously
10/100M or Gigabit Ethernet GMAC (IEEE 1588v2 hardware, MII/RMII/GMII/RGMI)
8- to 14-bit camera interface up to 140 Mbyte/s
6 analog peripherals
2 × ADCs with 16-bit max. resolution.
1 × temperature sensor
2 × 12-bit D/A converters (1 MHz)
1 × digital filters for sigma delta modulator (DFSDM) with 8 channels/6 filters
Internal or external ADC/DAC reference VREF+
Graphics:
3D GPU: Vivante® - OpenGL® ES 2.0
LCD-TFT controller, up to 24-bit // RGB888, up to WXGA (1366 × 768) @60 fps
MIPI® DSI 2 data lanes up to 1 GHz each
Timers:
2 × 32-bit timers with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
2 × 16-bit advanced motor control timers
10 × 16-bit general-purpose timers (including 2 basic timers without PWM)
5 × 16-bit low-power timers
RTC with sub-second accuracy and hardware calendar
2 × 4 Cortex®-A7 system timers (secure, non-secure, virtual, hypervisor)
1 × SysTick Cortex®-M4 timer
Hardware acceleration:
AES 128, 192, 256, TDES
HASH (MD5, SHA-1, SHA224, SHA256), HMAC
2 × true random number generator (3 oscillators each)
2 × CRC calculation unit
Debug mode:
Arm® CoreSight™ trace and debug: SWD and JTAG interfaces
8-Kbyte embedded trace buffer
3072-bit fuses including 96-bit unique ID, up to 1184-bit available for user
More information about STM32MP157 can be found here:
Supported Features
The stm32mp157x_dk2 board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
stm32mp157x_dk2/stm32mp157cxx target
On-target memory for this board target: 320 KiB of RAM, 64 KiB of Flash.
Type |
Location |
Description |
Compatible |
|---|---|---|---|
CPU |
on-chip |
ARM Cortex-M4 CPU1 |
|
Clock control |
on-chip |
STM32MP1 RCC (Reset and Clock controller)1 |
|
on-chip |
STM32 HSE Clock1 |
||
Counter |
on-chip |
STM32 counters2 |
|
CRC |
on-chip |
STM32 CRC calculation unit2 |
|
Display |
on-chip |
STM32 LCD-TFT display controller1 |
|
DMA |
on-chip |
STM32 DMA controller (V1)2 |
|
on-chip |
STM32 DMAMUX controller1 |
||
GPIO & Headers |
on-chip |
STM32 GPIO Controller11 |
|
on-board |
GPIO pins exposed on Arduino Uno (R3) headers1 |
||
I2C |
on-chip |
STM32 I2C V2 controller1 |
|
Input |
on-board |
Group of GPIO-bound input keys1 |
|
Interrupt controller |
on-chip |
ARMv7-M NVIC (Nested Vectored Interrupt Controller)1 |
|
on-chip |
STM32G0 External Interrupt Controller1 |
||
IPM |
on-chip |
STM32 IPCC MAILBOX1 |
|
LED |
on-board |
Group of GPIO-controlled LEDs1 |
|
Pin control |
on-chip |
STM32 Pin controller1 |
|
PWM |
on-chip |
STM32 PWM2 |
|
Reset controller |
on-chip |
STM32 Reset and Clock Control (RCC) Controller1 |
|
Serial controller |
on-chip |
||
on-chip |
|||
SMbus |
on-chip |
STM32 SMBus controller1 |
|
SPI |
on-chip |
||
Timer |
on-chip |
ARMv7-M System Tick1 |
|
on-chip |
STM32 timers2 |
||
Watchdog |
on-chip |
STM32 system window watchdog1 |
stm32mp157x_dk2/stm32mp157fxx target
On-target memory for this board target: 320 KiB of RAM, 64 KiB of Flash.
Type |
Location |
Description |
Compatible |
|---|---|---|---|
CPU |
on-chip |
ARM Cortex-M4 CPU1 |
|
Clock control |
on-chip |
STM32MP1 RCC (Reset and Clock controller)1 |
|
on-chip |
STM32 HSE Clock1 |
||
Counter |
on-chip |
STM32 counters2 |
|
CRC |
on-chip |
STM32 CRC calculation unit2 |
|
Display |
on-chip |
STM32 LCD-TFT display controller1 |
|
DMA |
on-chip |
STM32 DMA controller (V1)2 |
|
on-chip |
STM32 DMAMUX controller1 |
||
GPIO & Headers |
on-chip |
STM32 GPIO Controller11 |
|
on-board |
GPIO pins exposed on Arduino Uno (R3) headers1 |
||
I2C |
on-chip |
STM32 I2C V2 controller1 |
|
Input |
on-board |
Group of GPIO-bound input keys1 |
|
Interrupt controller |
on-chip |
ARMv7-M NVIC (Nested Vectored Interrupt Controller)1 |
|
on-chip |
STM32G0 External Interrupt Controller1 |
||
IPM |
on-chip |
STM32 IPCC MAILBOX1 |
|
LED |
on-board |
Group of GPIO-controlled LEDs1 |
|
Pin control |
on-chip |
STM32 Pin controller1 |
|
PWM |
on-chip |
STM32 PWM2 |
|
Reset controller |
on-chip |
STM32 Reset and Clock Control (RCC) Controller1 |
|
Serial controller |
on-chip |
||
on-chip |
|||
SMbus |
on-chip |
STM32 SMBus controller1 |
|
SPI |
on-chip |
||
Timer |
on-chip |
ARMv7-M System Tick1 |
|
on-chip |
STM32 timers2 |
||
Watchdog |
on-chip |
STM32 system window watchdog1 |
Connections and IOs
STM32MP157x-DK2 Discovery Board schematic is available here: STM32MP157 Discovery board schematics.
Default Zephyr Peripheral Mapping:
USART_3 TX/RX : PB10/PB12 (UART console)
UART_7 TX/RX : PE8/PE7 (Arduino Serial)
I2C5 SCL/SDA : PA11/PA12 (Arduino I2C)
SPI4 SCK/MISO/MOSI : PE12/PE13/PE14 (Arduino SPI)
SPI5 SCK/MISO/MOSI : PF7/PF8/PF9
System Clock
The Cortex®-M4 Core is configured to run at a 209 MHz clock speed. This value must match the configured mlhclk_ck frequency.
Serial Port
The STM32MP157x-DK2 Discovery board has 8 U(S)ARTs.
The Zephyr console output is assigned by default to the RAM console to be dumped
by the Linux Remoteproc Framework on Cortex®-A7 core. In order to keep the UART7
free for future serial interactions with Arduino shield, the Zephyr UART console
output is USART3 and is disabled by default. UART console can be enabled through
the board’s devicetree and the board _defconfig file (or prj.conf project
files), and will disable the existing RAM console output. Default UART console
settings are 115200 8N1.
Programming and Debugging
The stm32mp157x_dk2 board supports the runners and associated west commands listed below.
| flash | debug | attach | debugserver | rtt | |
|---|---|---|---|---|---|
| openocd | ✅ (default) | ✅ (default) | ✅ | ✅ | ✅ |
The STM32MP157 doesn’t have QSPI flash for the Cortex®-M4 and it needs to be started by the Cortex®-A7 core. The Cortex®-A7 core is responsible for loading the Cortex®-M4 binary application into RAM, and getting the Cortex®-M4 out of reset. The Cortex®-A7 can perform these steps at bootloader level or after the Linux system has booted.
The Cortex®-M4 can use up to 2 different RAMs. The program pointer starts at address 0x00000000 (RETRAM), the vector table should be loaded at this address. These are the memory mappings for Cortex®-A7 and Cortex®-M4:
Region |
Cortex®-A7 |
Cortex®-M4 |
Size |
|---|---|---|---|
RETRAM |
0x38000000-0x3800FFFF |
0x00000000-0x0000FFFF |
64KB |
MCUSRAM |
0x10000000-0x1005FFFF |
0x10000000-0x1005FFFF |
384KB |
DDR |
0xC0000000-0xFFFFFFFF |
up to 1 GB |
Refer to stm32mp157 boot Cortex-M4 firmware wiki page for instructions to load and start the Cortex-M4 firmware.
Build the sample for the variant you own, e.g. the STM32MP157F-DK2:
west build -b stm32mp157x_dk2/stm32mp157fxx samples/hello_world
(or stm32mp157x_dk2/stm32mp157cxx for the STM32MP157C-DK2).
Debugging
You can debug an application using OpenOCD and GDB. The solution proposed below is based on attaching to a preloaded firmware, available only for a Linux environment. The firmware must first be loaded by the Cortex®-A7. The developer then attaches the debugger to the running Zephyr using OpenOCD.
The principle is to attach to the firmware already loaded by Linux.
Copy the firmware on the target filesystem, load it and start it (stm32mp157 boot Cortex-M4 firmware).
Attach to the target:
west attach
