STM32-MICRIUM
Overview

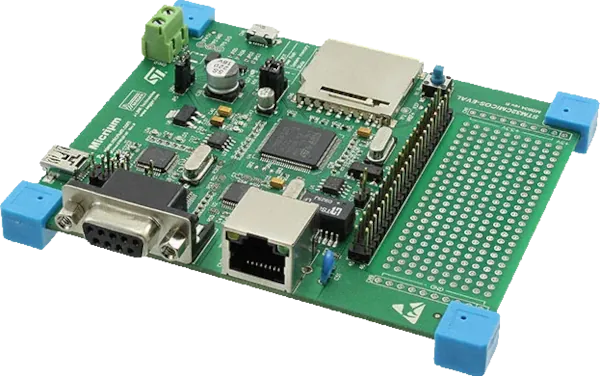

The STM32-MICRIUM evaluation board is a development platform for the STM32F107VCT6 microcontroller. It exposes the Ethernet MAC, USB OTG full speed, CAN, an SD card socket and an RS-232 port of the connectivity line STM32F107, together with an on-board SEGGER J-Link debugger.
More information about the board can be found in the STM32-MICRIUM User Manual [1].
Hardware
STM32F107VCT6 microcontroller in an LQFP100 package
Arm® 32-bit Cortex®-M3 CPU
256 KB of Flash
64 KB of SRAM
25 MHz crystal oscillator
32.768 kHz crystal oscillator for the RTC
10/100 Ethernet with a TI DP83848CVV PHY in MII mode
USB OTG full speed on a Micro-AB connector with an STMPS2141 VBUS power switch
One CAN channel with an SN65HVD230 transceiver
SD card socket
STLM75 temperature sensor
RS-232 with hardware flow control on a DB-9 connector
Three user LEDs (green, orange and red)
46-pin extension connector and a prototyping area
On-board SEGGER J-Link (JTAG and SWD) on a mini-B USB connector
Powered from the J-Link USB connector or from a 5V screw terminal
For more details on the microcontroller refer to the STM32F107VC on www.st.com [2] and the STM32F105xx/107xx reference manual [3].
Supported Features
The stm32_micrium board supports the hardware features listed below.
- on-chip / on-board
- Feature integrated in the SoC / present on the board.
- 2 / 2
-
Number of instances that are enabled / disabled.
Click on the label to see the first instance of this feature in the board/SoC DTS files. -
vnd,foo -
Compatible string for the Devicetree binding matching the feature.
Click on the link to view the binding documentation.
stm32_micrium/stm32f107xc target
On-target memory for this board target: 64 KiB of RAM, 256 KiB of Flash.
Type |
Location |
Description |
Compatible |
|---|---|---|---|
CPU |
on-chip |
ARM Cortex-M3 CPU1 |
|
ADC |
on-chip |
STM32F1 ADC1 |
|
CAN |
on-chip |
||
Clock control |
on-chip |
STM32 RCC (Reset and Clock controller)1 |
|
on-chip |
STM32 HSE Clock1 |
||
on-chip |
|||
on-chip |
STM32F105/F107 Main PLL1 |
||
on-chip |
STM32F105/F107 PLL21 |
||
on-chip |
STM32F1 Microcontroller Clock Output (MCO)1 |
||
Counter |
on-chip |
STM32 counters7 |
|
DAC |
on-chip |
STM32 family DAC1 |
|
DMA |
on-chip |
STM32 DMA controller (V2bis) for the stm32F0, stm32F1 and stm32L1 soc families2 |
|
Ethernet |
on-chip |
ST STM32 Ethernet MAC1 |
|
on-chip |
Synopsys DesignWare MAC MDIO controller1 |
||
on-board |
Generic MII PHY1 |
||
on-chip |
Synopsys DesignWare MAC PTP (Precision Time Protocol) Clock1 |
||
Flash controller |
on-chip |
STM32 Family flash controller1 |
|
GPIO & Headers |
on-chip |
STM32 GPIO Controller5 |
|
I2C |
on-chip |
||
Interrupt controller |
on-chip |
ARMv7-M NVIC (Nested Vectored Interrupt Controller)1 |
|
on-chip |
STM32 External Interrupt Controller1 |
||
LED |
on-board |
Group of GPIO-controlled LEDs1 |
|
MTD |
on-chip |
STM32 flash memory1 |
|
PHY |
on-chip |
This binding is to be used by all the usb transceivers which are built-in with USB IP1 |
|
Pin control |
on-chip |
STM32F1 Pin controller1 |
|
Power management |
on-chip |
STM32 power controller1 |
|
on-chip |
STM32F1-like wake-up pins controller1 |
||
PWM |
on-chip |
STM32 PWM5 |
|
Reset controller |
on-chip |
STM32 Reset and Clock Control (RCC) Controller1 |
|
RTC |
on-chip |
STM32 RTC1 |
|
Sensors |
on-board |
LM75 Digital Temperature Sensor with 2-Wire Interface1 |
|
on-chip |
STM32 quadrature decoder5 |
||
on-chip |
STM32 Internal Temperature Sensor1 |
||
Serial controller |
on-chip |
||
on-chip |
STM32 UART2 |
||
SMbus |
on-chip |
STM32 SMBus controller2 |
|
SPI |
on-chip |
||
Timer |
on-chip |
ARMv7-M System Tick1 |
|
on-chip |
STM32 timers7 |
||
USB |
on-chip |
STM32 OTGFS controller1 |
|
Watchdog |
on-chip |
STM32 watchdog1 |
|
on-chip |
STM32 system window watchdog1 |
Default Zephyr Peripheral Mapping:
USART2 TX/RX/RTS/CTS : PD5/PD6/PD4/PD3 (RS-232 connector CN7)
I2C1 SCL/SDA : PB6/PB7 (STLM75 at address 0x48, OS/INT on PB5)
SPI1 SCK/MISO/MOSI/CS : PA5/PA6/PA7/PA8 (SD card socket)
SD card detect : PE6
CAN1 RX/TX : PD0/PD1
Ethernet MII : PA0, PA1, PA3, PB8, PB10, PB11, PB12, PB13, PC2, PC3, PD8 to PD12
Ethernet MDC/MDIO : PC1/PA2
Ethernet PHY interrupt : PE5
USB OTG FS DM/DP/VBUS/ID : PA11/PA12/PA9/PA10
LD1 (green) : PD13
LD2 (orange) : PD14
LD3 (red) : PD15
System Clock
The system clock is driven by the 25MHz crystal through PLL2 and the main PLL: the HSE is divided by 5 and multiplied by 8 in PLL2 (40 MHz), then divided by 5 and multiplied by 9 in the main PLL, giving a 72 MHz system clock. The OTG FS clock is the PLL VCO output divided by 3 (48 MHz). The RTC runs from the 32.768kHz crystal.
Ethernet
The DP83848 PHY is strapped to address 1 and drives the MAC in MII mode from its own 25 MHz crystal.
USB
The board cannot be powered from the OTG connector. The STMPS2141 power switch on PE1 supplies VBUS in host mode; it is not driven by Zephyr, which uses the controller in device mode only.
CAN
The CAN bus is available on CN3 pins 28 (CAN_L) and 30 (CAN_H). The on-board 120 ohm termination resistor is connected by fitting JP1 (not fitted by default).
Boot options
JP4 (BOOT0) and JP3 (BOOT1) select the boot source. In the default setting JP4 selects the user flash, which is what Zephyr expects.
Programming and Debugging
The stm32_micrium board supports the runners and associated west commands listed below.
| flash | debug | attach | debugserver | rtt | reset | |
|---|---|---|---|---|---|---|
| jlink | ✅ (default) | ✅ (default) | ✅ | ✅ | ✅ | ✅ |
The board integrates a SEGGER J-Link debug probe. Its SWDIO and SWCLK lines are always wired to
the STM32F107VCT6; the remaining JTAG signals (TDI, TDO and TRST) pass through solder bridges
SB1 to SB3, which are closed by default, so both JTAG and SWD are available. The Zephyr runners
use SWD, which works in either bridge configuration. With JP2 open (default) the on-board probe
is used; closing JP2 disconnects it so that an external probe can be attached to the JTAG/SWD
signals on CN3. PA15, PB3 and PB4 are shared between the JTAG port and CN3, so using them as
GPIOs requires opening SB1 to SB3 and disabling JTAG through the swj-cfg pinctrl property.
Applications for the stm32_micrium board can be built and flashed in the usual way (see
Building an Application and Run an Application for more details).
Flashing
The default runner is J-Link [4]. Connect the J-Link mini-B USB connector (CN5) to the host, which also powers the board when JP5 is in its default position.
Here is an example for the Blinky application.
# From the root of the zephyr repository
west build -b stm32_micrium samples/basic/blinky
west flash
You will see the green LED blinking every second.
Debugging
The console is available on the RS-232 connector CN7 at 115200 bauds. The RTS and CTS lines are wired to the connector and routed to USART2, but hardware flow control is off by default so that the console works with a three-wire cable. Enable flow control with an overlay:
&usart2 {
hw-flow-control;
};
You can debug an application in the usual way. Here is an example for the Hello World application.
# From the root of the zephyr repository
west build -b stm32_micrium samples/hello_world
west debug
