X-NUCLEO-GFX02Z1 Display expansion board

Overview

The X-NUCLEO-GFX02Z1 expansion board adds graphic user interface (GUI) capability to STM32 Nucleo-144 boards. It features a 2.2” TFT display driven through an 8-bit Intel 8080 parallel interface, as well as a 64-Mbit Quad-SPI NOR Flash memory for storing graphic images, texts and textures. The expansion board also offers a 5-way joystick for GUI navigation.

The board comes in two panel variants, identified by the product identification code printed on the sticker:

  • XNGFX02Z1$AZ1: DT022CTFT panel with an ILI9341V controller

  • XNGFX02Z1$AZ2: TCXD022IBLON-5 panel with an ST7789V controller

This shield supports the $AZ2 (ST7789V) variant.

The parallel display is compatible with the sitronix,st7789v driver, and the Quad-SPI NOR Flash is compatible with the st,stm32-ospi-nor driver.

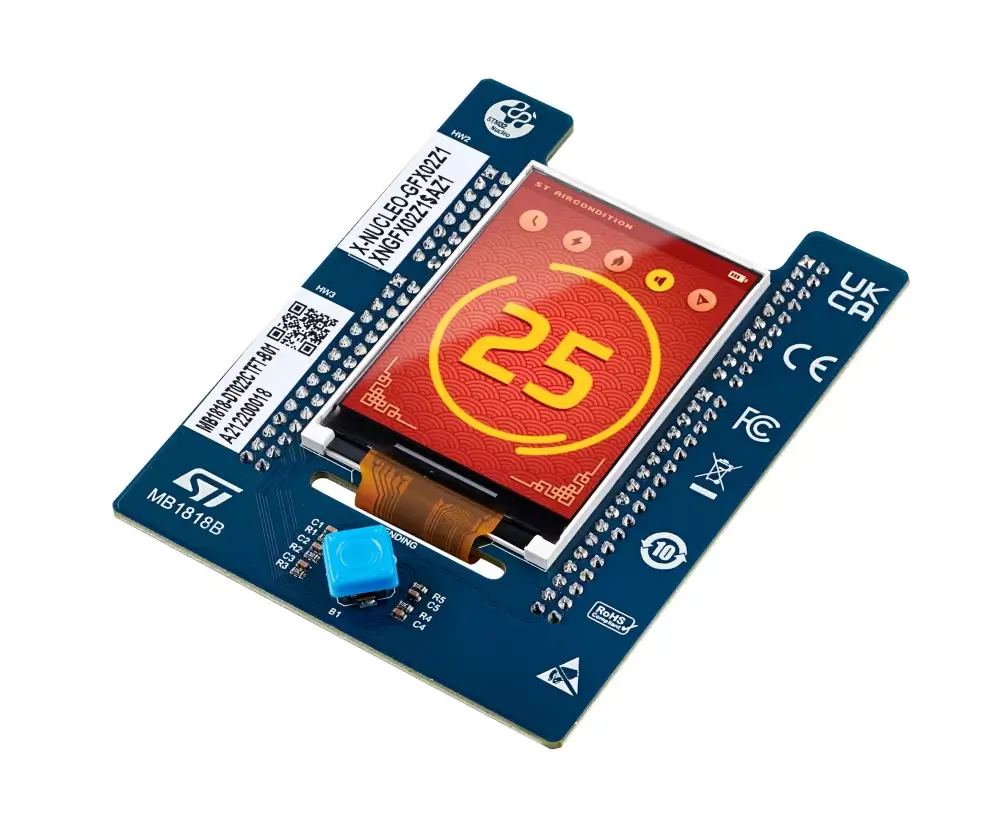

X-NUCLEO-GFX02Z1$AZ2

More information about the board can be found at the X-NUCLEO-GFX02Z1 website.

Requirements

This shield can only be used with STM32 Nucleo-144 boards that provide a configuration for the Zio connectors and expose the st_zio_fmc connector (an FMC / Flexible Memory Controller peripheral for the parallel display) and the st_zio_qspi connector (an OCTOSPI peripheral for the Quad-SPI NOR Flash). The shield uses:

  • 8-bit Intel 8080 parallel interface (FMC / MIPI DBI Type B) for the display

  • Quad-SPI (OCTOSPI) for the NOR Flash memory

  • GPIO for the joystick input

Consult the X-NUCLEO-GFX02Z1 user manual for the FMC, OCTOSPI and joystick pinouts used on your development board:

Currently supported boards:

  • nucleo_u575zi_q

  • nucleo_f446ze

Hardware configuration

The pin assignments for the parallel display (FMC), the Quad-SPI NOR Flash and the joystick are board specific and are provided by the shield’s board-level overlays. The Quad-SPI NOR Flash is driven by a different controller peripheral depending on the board:

Samples

The Display, JESD216 flash, Flash shell and Input dump samples can be used to test out the expansion board’s functionality.

Programming

Set --shield x_nucleo_gfx02z1_az2 when you invoke west build. For example:

# From the root of the zephyr repository
west build -b nucleo_u575zi_q --shield x_nucleo_gfx02z1_az2 samples/drivers/display/
