Adafruit ISM330DHCX Shield
Overview

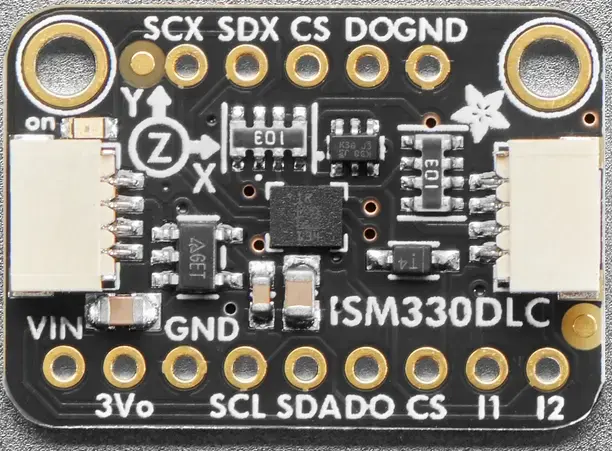

The Adafruit ISM330DHCX 6 DoF IMU Sensor Shield features a ST ISM330DHCX 6 DoF IMU and two STEMMA QT connectors.
Requirements
This shield can be used with boards which provide an I2C connector, for
example STEMMA QT or Qwiic connectors.
The target board must define a zephyr_i2c node label.
See Shields for more details.
Pin Assignments
Shield Pin |
Function |
|---|---|
SDA |
ISM330DHCX I2C SDA |
SCL |
ISM330DHCX I2C SCL |
DO |
ISM330DHCX I2C address selection. Pull down by default. |
CS |
ISM330DHCX Force I2C mode by setting it to high level. |
I1 |
ISM330DHCX Interrupt out |
I2 |
ISM330DHCX Second interrupt out |
In order to use interrupts you need to connect a separate wire from the
shield to a GPIO pin on your microcontroller board. See
st,ism330dhcx for documentation on how to adjust the
devicetree file.
Programming
Set --shield adafruit_ism330dhcx when you invoke west build.
For example when running the Generic 3-Axis accelerometer polling sample:
# From the root of the zephyr repository
west build -b adafruit_qt_py_rp2040 --shield adafruit_ism330dhcx samples/sensor/accel_polling
