X-NUCLEO-WBA25A1: BLE expansion board

Overview

The X-NUCLEO-WBA25A1 is a Bluetooth® v6.0 compliant expansion board based on the STM32WBA25CE MCU and featuring preloaded network coprocessor firmware with a UART interface. The RF module is FCC (FCC ID: YCP-MB229301) and IC certified (IC: 8976A-MB229301).

The X-NUCLEO-WBA25A1 is compatible out of the box with the Arduino UNO R3 connector. The board interfaces with the host microcontroller via UART (default) or SPI peripheral. However, the out-of-the-box firmware is not compatible with Zephyr; therefore, a controller-only image should be flashed on the board using CN8 pin headers described in section 9.1 of the UM3608 [1].

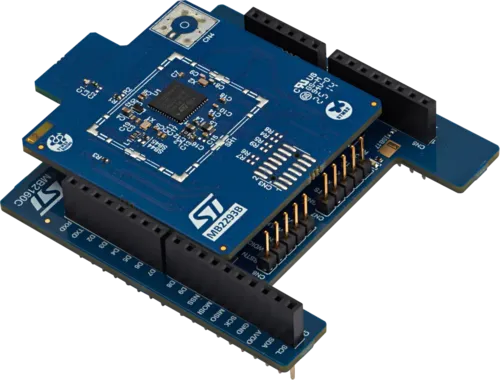

X-NUCLEO-WBA25A1

More information about the board can be found at the X-NUCLEO-WBA25A1 website [2].

How to change the firmware

  • Step 1: Download and install X-CUBE-WBA [3] and STM32CubeProg [4].

  • Step 2: Open the STM32CubeProgrammer (STM32CubeProg), and erase the STM32WBA25CE flash memory.

  • Step 3: Load the BLE_TransparentMode_UART_STM32WBA2_RCP.bin or

    BLE_TransparentMode_SPI_STM32WBA2_RCP.bin, depending on the use case, from the firmware available in the X-CUBE-WBA installation folder: Utilities/BLE_TransparentMode_RCP.

  • Step 4. Use 0x08000000 as the start address to program the SoC.

Configurations

X-NUCLEO-WBA25A1 can be utilized as a Bluetooth Low-Energy controller shield with a UART or SPI host controller interface (HCI-UART/HCI-SPI).

The UART default settings are:

  • Baudrate: 115200 bps

  • 8 bits, no parity, 1 stop bit

UART Pin

Arduino Connector Pin

RX

D0

TX

D1

The SPI default settings are:

  • Mode: Full-duplex slave

  • Frame format: Motorola

  • Data size: 8 bits, MSB first

  • Clock Polarity: High (CPOL=1)

  • Clock Phase: 2 Edge (CPHA=1)

  • CS type: Software-controlled

IRQ and reset pins are also necessary in addition to SPI pins.

SPI Config Pin

Arduino Connector Pin

SCK

D13

MISO

D12

MOSI

D11

CS

D10

IRQ

A0

RESET

D7

Programming

Activate the presence of the shield for the project build by adding the --shield x_nucleo_wba25a1_uart or --shield x_nucleo_wba25a1_spi when you invoke west build based on UART or SPI interface:

west build -b your_board_name --shield x_nucleo_wba25a1_uart your_app

Or

west build -b your_board_name --shield x_nucleo_wba25a1_spi your_app
