X-NUCLEO-GNSS1A1: GNSS expansion board based on Teseo-LIV3F

Overview

The X-NUCLEO-GNSS1A1 is a GNSS expansion board for STM32 Nucleo, based on the ST Teseo-LIV3F module. It is compatible with the Arduino UNO R3 connector and supports GPS, Galileo, GLONASS, BeiDou and QZSS constellations.

The Teseo-LIV3F communicates via UART at 9600 baud (8N1) using standard NMEA 0183 sentences.

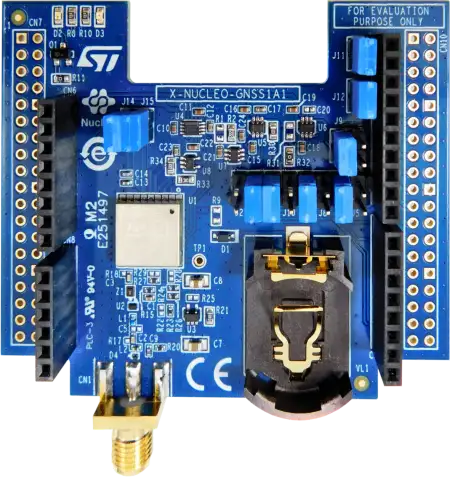

X-NUCLEO-GNSS1A1

More information about the board can be found at the X-NUCLEO-GNSS1A1 website [1].

Hardware

Key features:

  • Teseo-LIV3F GNSS module (9.7 x 10.1 mm)

  • Multi-constellation: GPS, Galileo, GLONASS, BeiDou, QZSS

  • Sensitivity: -162 dBm (tracking mode)

  • On-board 26 MHz TCXO and 32 KHz RTC oscillator

  • UART and I2C interfaces

  • SMA antenna connector

  • Battery holder for backup

  • Operating voltage: 3.3 - 5 V

Jumper configuration

The X-NUCLEO-GNSS1A1 uses jumpers to route signals between the Teseo-LIV3F module and the Arduino header pins. The UART can be routed to two different sets of pins.

Default factory jumper settings route UART to D8/D2 (active: J3/J4). These pins do not map to a hardware UART on all STM32 Nucleo boards.

For boards where D0/D1 are connected to a USART peripheral (e.g. nucleo_wl55jc), change the jumpers as follows:

Jumper

Default

Required change

J3 (D8)

Closed

Open

J4 (D2)

Closed

Open

J2 (D1)

Open

Close

J5 (D0)

Open

Close

This routes the GNSS UART through Arduino D0 (RX) / D1 (TX), which maps to USART1 on many STM32 Nucleo-64 boards.

Note

On boards where SPI1 drives Arduino D13 (e.g. nucleo_wl55jc), SPI1 must be disabled because D13 is shared with the Teseo-LIV3F WAKEUP signal (active via jumper J9). The board-specific overlay handles this automatically.

The remaining jumpers can be left at their defaults:

Signal

Jumper

Default

Reset (D7)

J13

Closed

Wakeup (D13)

J9

Closed

PPS (D6)

J6

Closed

I2C-SCL (D15)

J11

Open

I2C-SDA (D14)

J12

Open

Programming

Set --shield x_nucleo_gnss1a1 when you invoke west build. For example, using the GNSS sample application:

west build -b nucleo_wl55jc --shield x_nucleo_gnss1a1 samples/drivers/gnss
