Raspberry Pi Camera Module 2
Overview
The Raspberry Pi camera module 2 provides a Sony IMX219 rolling shutter in a module featuring a 15-pin FFC connector popularized by Raspberry Pi, present on a wide range of boards.
The NoIR variant is the same as the normal variant, except with the infra-red filter removed.

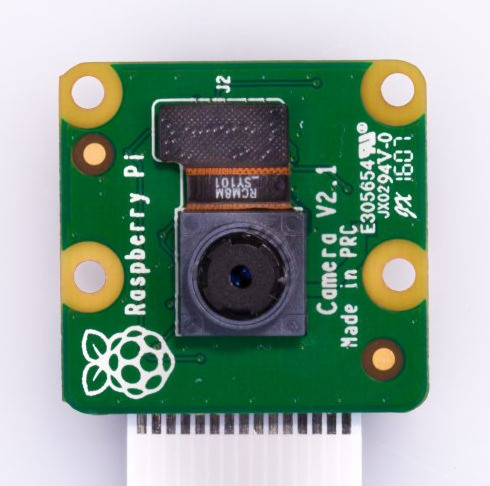

Raspberry Pi Camera Module 2, normal variant (Credit: Raspberry Pi.)

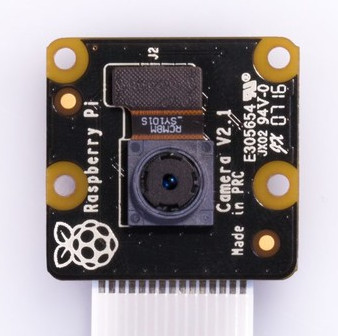

Raspberry Pi Camera Module 2, NoIR variant (Credit: Raspberry Pi.)
Requirements
The camera module is compatible with all boards featuring a 15 pins FFC connector and the necessary
devicetree definitions for a raspberrypi,csi-connector.
Usage
The shield can be used in any application by setting SHIELD to
raspberry_pi_camera_module_2 for boards with the necessary device tree node labels:
# From the root of the zephyr repository
west build -b stm32n6570_dk --shield raspberry_pi_camera_module_2 samples/drivers/video/capture
