MikroElektronika Flash 8 Click
Overview
Flash 8 Click is a compact add-on board representing a highly reliable memory solution.
This board features the GD5F2GQ5UEYIGR, a 2Gb high-density non-volatile memory storage solution for embedded systems from GigaDevice Semiconductor. It is based on an industry-standard NAND Flash memory core, representing an attractive alternative to SPI-NOR and standard parallel NAND Flash with advanced features. The GD5F2GQ5UEYIGR also has advanced security features (8K-Byte OTP region), software/hardware write protection, can withstand many write cycles (minimum 100k), and has a data retention period greater than ten years.

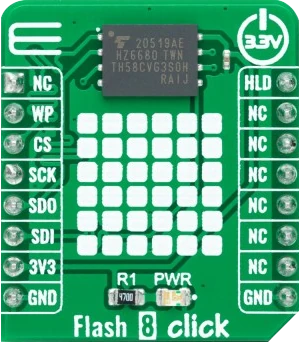

Flash 8 Click
Requirements
This shield can only be used with a board that provides a mikroBUS™ socket and defines a
mikrobus_spi node label for the mikroBUS™ SPI interface. See Shields for more
details.
Programming
Set --shield mikroe_flash_8_click when you invoke west build. For example:
# From the root of the zephyr repository
west build -b frdm_mcxn947/mcxn947/cpu0 --shield mikroe_flash_8_click samples/drivers/flash_shell
