M5Stack Unit Gesture
Overview

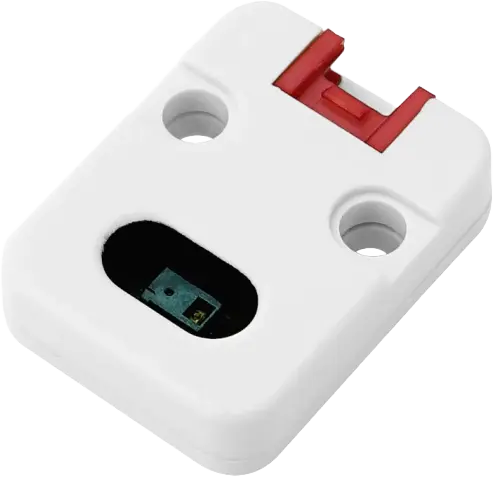

M5Stack Unit Gesture is a compact module with the PixArt PAJ7620U2 gesture sensor. It connects over I2C via a Grove-compatible 4-pin cable (HY2.0-4P).
Requirements
This shield can be used with a board that exposes a 4-pin I2C connector labeled zephyr_i2c in
Devicetree (see Shields).
The PAJ7620 interrupt line is not routed to the Grove connector on this unit, so interrupt-driven trigger modes cannot be used.
Pin assignments
Grove pin |
Function |
|---|---|
1 |
I2C SCL |
2 |
I2C SDA |
3 |
VCC (module I/O) |
4 |
GND |
Programming
Set --shield m5stack_unit_gesture when you invoke west build. For example, using the
PAJ7620 Gesture Sensor sample in polling mode:
# From the root of the zephyr repository
west build -b m5stack_core2/esp32/procpu --shield m5stack_unit_gesture samples/sensor/paj7620_gesture
