X-NUCLEO-PGEEZ1 page EEPROM expansion board

Overview

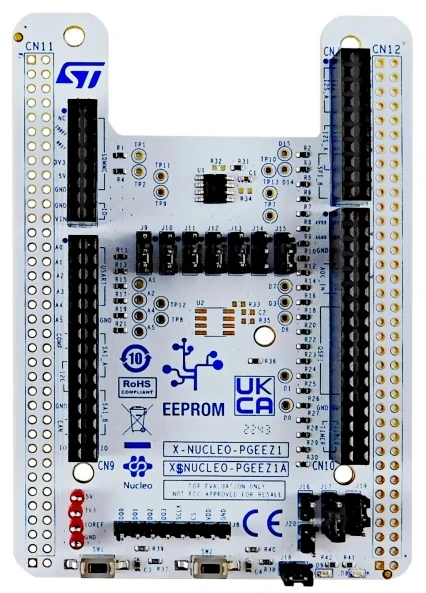

The X-NUCLEO-PGEEZ1 expansion board carries an ST M95P32 32-Mbit SPI page EEPROM. The device supports single, dual, and quad output reads and NOR-compatible array operations described by SFDP.

Zephyr exposes the M95P32 main memory array through the Flash API over MSPI. The shield configuration uses a 1-1-4 quad read and a single-line page program because the M95P32 does not provide a quad page-program command. The M95P32 is compatible with the generic jedec,nor MSPI driver.

More information about the expansion board is available on the X-NUCLEO-PGEEZ1 product page.

Requirements

Until STM32-based boards are fully migrated to the MSPI API, the shield requires a board that provides the st_zio_qspi connector. Currently, the Nucleo U575ZI Q is supported.

Programming

Build the MSPI flash sample with the shield enabled:

# From the root of the zephyr repository
west build -b nucleo_u575zi_q --shield x_nucleo_pgeez1 samples/drivers/mspi/mspi_flash

On the Nucleo U575ZI Q, the shield replaces the board’s internal secondary MCUboot slot with a partition on the M95P32 and selects the UART used by MCUmgr. The board-specific shield configuration uses an 8-KiB page layout so the external layout matches the STM32U575 internal flash layout. Swap using offset also requires SB_CONFIG_MCUBOOT_MODE_SWAP_USING_OFFSET=y in the sysbuild configuration.

For example, build the MCUmgr SMP server with MCUboot as follows:

west build --sysbuild -b nucleo_u575zi_q \
  samples/subsys/mgmt/mcumgr/smp_svr --shield x_nucleo_pgeez1 -- \
  -DEXTRA_CONF_FILE=serial.conf \
  -DSB_CONFIG_MCUBOOT_MODE_SWAP_USING_OFFSET=y
