Analog Devices Low-Speed Mixed-Signal Playground

Overview

The Analog Devices Low-Speed Mixed-Signal Playground features AD5592R and AD5593R ADC/DAC devices, connected to sample small analog circuits, allowing for exploration of analog concepts.

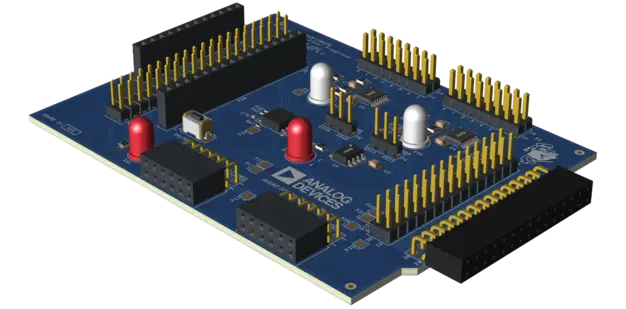

ADI LSMSPG Shield — Analog Devices Low-Speed Mixed-Signal Playground Shield

Pin Assignments

Shield Connector Pin	Function
SDA	AD5593R SDA
SCL	AD5593R SCL
SCK	AD5592R SCK
MISO	AD5592R MISO
MOSI	AD5592R MOSI
D16	AD5592R CS

Requirements

This shield can only be used with a board which provides a configuration for Feather connectors and defines node aliases for SPI, I2C and GPIO interfaces (see Shields for more details).

Programming

Set --shield adi_lsmspg when you invoke west build. For example:

# From the root of the zephyr repository
west build -b adafruit_feather_rp2040/rp2040 --shield adi_lsmspg tests/drivers/dac
