M5Stack Unit Mini OLED
Overview
M5Stack Unit Mini OLED [1] is a 0.42-inch monochrome white OLED module with a 72x40 resolution, and an SSD1315 controller.

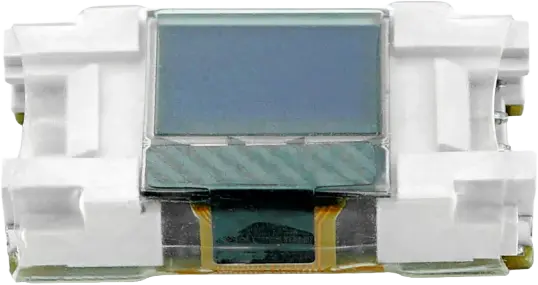

M5Stack Unit Mini OLED (Credit: M5Stack)
Requirements
This shield expects a board that defines zephyr_i2c (see Shield interfaces) for the Grove
connector to which it is connected.
Pin assignments
Grove pin |
Function |
|---|---|
1 |
I2C SCL |
2 |
I2C SDA |
3 |
VCC (3.3 V) |
4 |
GND |
Programming
Set --shield m5stack_unit_minioled when you invoke west build. For example, using the
display LVGL sample:
# From the root of the zephyr repository
west build -b m5stack_atoms3/esp32s3/procpu --shield m5stack_unit_minioled samples/subsys/display/lvgl
