AD-APARDPFW-SL
Overview

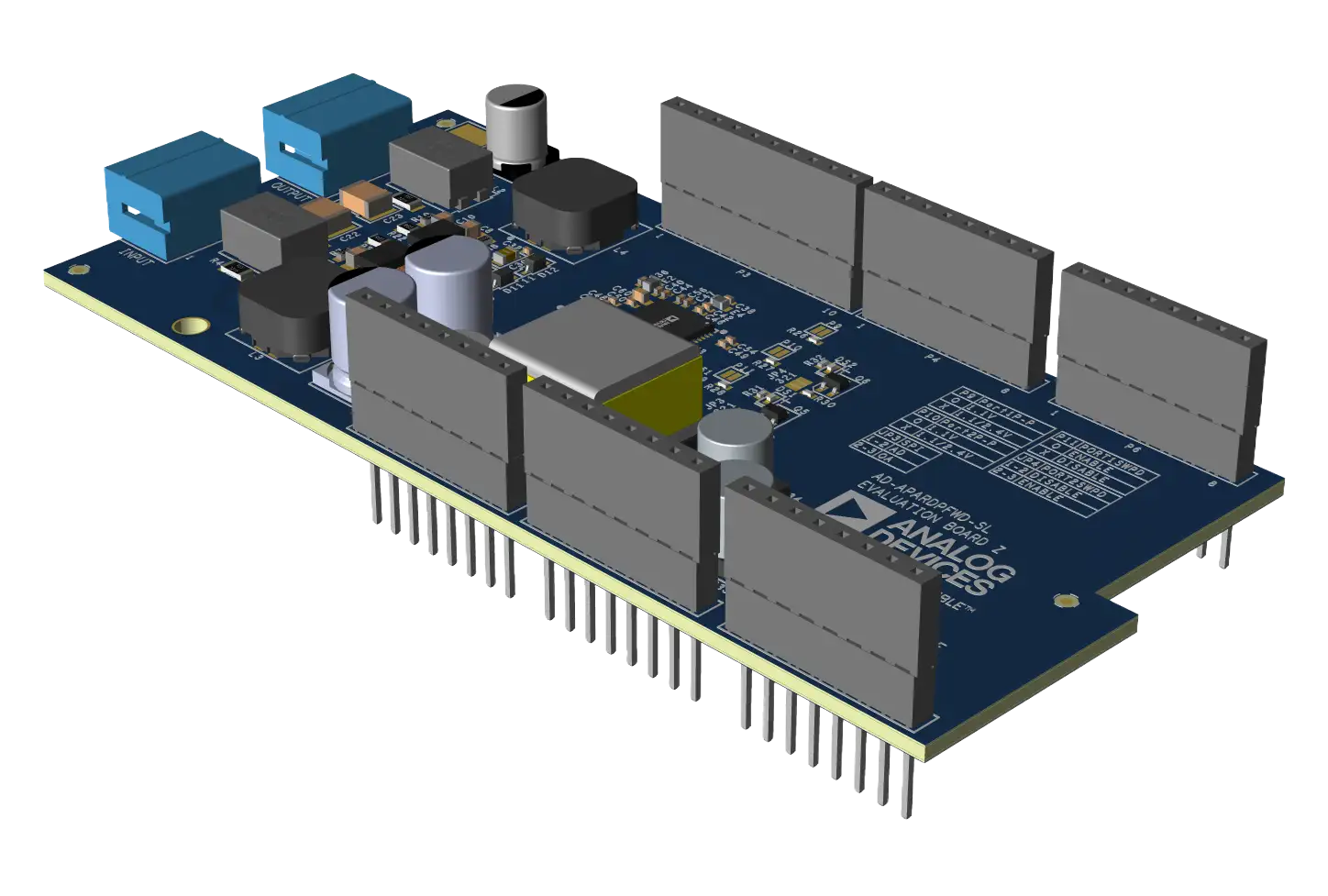

The AD-APARDPFW-SL is a 2-port 10BASE-T1L power forwarder with Single Pair Power over Ethernet (SPoE) for development of field devices and applications on an AD-APARD32690-SL platform board, featuring the Analog Devices ADIN2111 Ethernet switch.
Programming
Set --shield ad_apardpfw_sl when you invoke west build. For example:
# From the root of the zephyr repository
west build -b apard32690/max32690/m4 --shield ad_apardpfw_sl samples/net/sockets/echo_server
Requirements
This shield is designed for use with the AD-APARD32690-SL platform board.
