EVAL-AD5529R-ARDZ
Overview

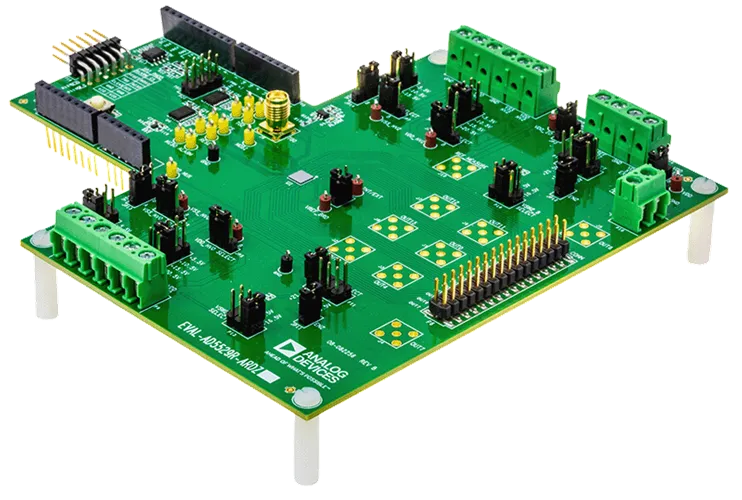

The EVAL-AD5529R-ARDZ is an evaluation board for the Analog Devices AD5529R, a 16-channel, 16-bit, high-voltage output DAC. The board features an on-board power solution, optional precision reference (ADR4540), and connects to a host board through Arduino R3 headers using SPI.
Programming
Set --shield eval_ad5529r_ardz when you invoke west build. For example:
# From the root of the zephyr repository
west build -b nucleo_f401re --shield eval_ad5529r_ardz samples/drivers/dac
Requirements
This shield can only be used with a board which provides a configuration for Arduino connectors and defines node aliases for SPI and GPIO interfaces (see Shields for more details).
Pin Assignments
Arduino Pin |
Function |
|---|---|
D7 |
AD5529R CLEAR (active low) |
D8 |
AD5529R RESET (active low) |
D9 |
AD5529R LDAC/TG0 (active low) |
D10 |
SPI chip select (directly mapped to CS0) |
D11 |
SPI MOSI |
D12 |
SPI MISO |
D13 |
SPI SCLK |
